Front Fog Lamp Bulb Replacement

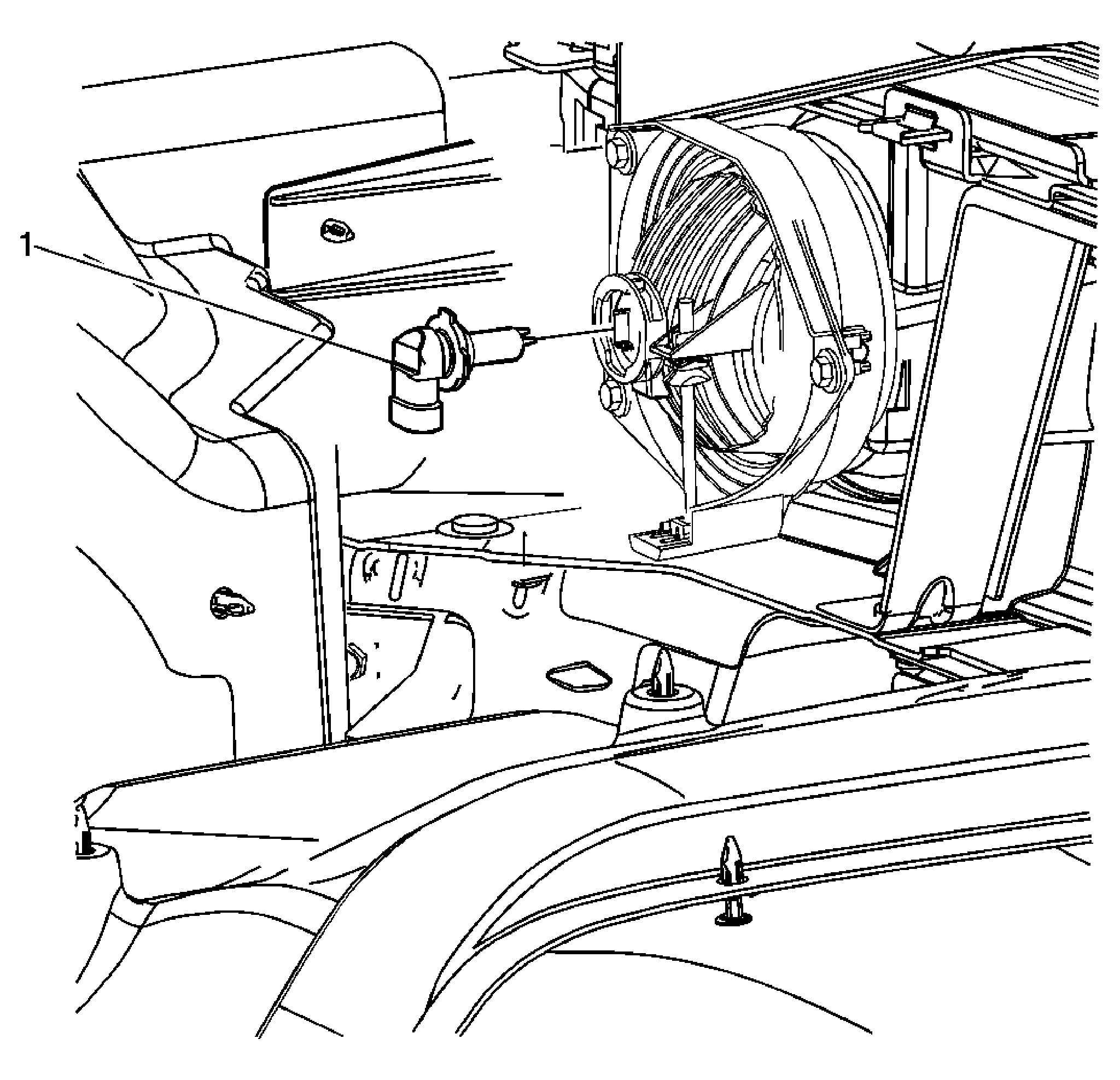

Fig 1: Fog Lamp Bulb Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the engine shield. Refer Engine Shield Replacement . Remove the fog lamp bulb by twisting counterclockwise. Disconnect the electrical connector.
1	Front Fog Lamp Bulb (Qty: 1)

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Front Fog Lamp Bulb (Qty: 1)
