Daytime Running Lamp Bulb Replacement

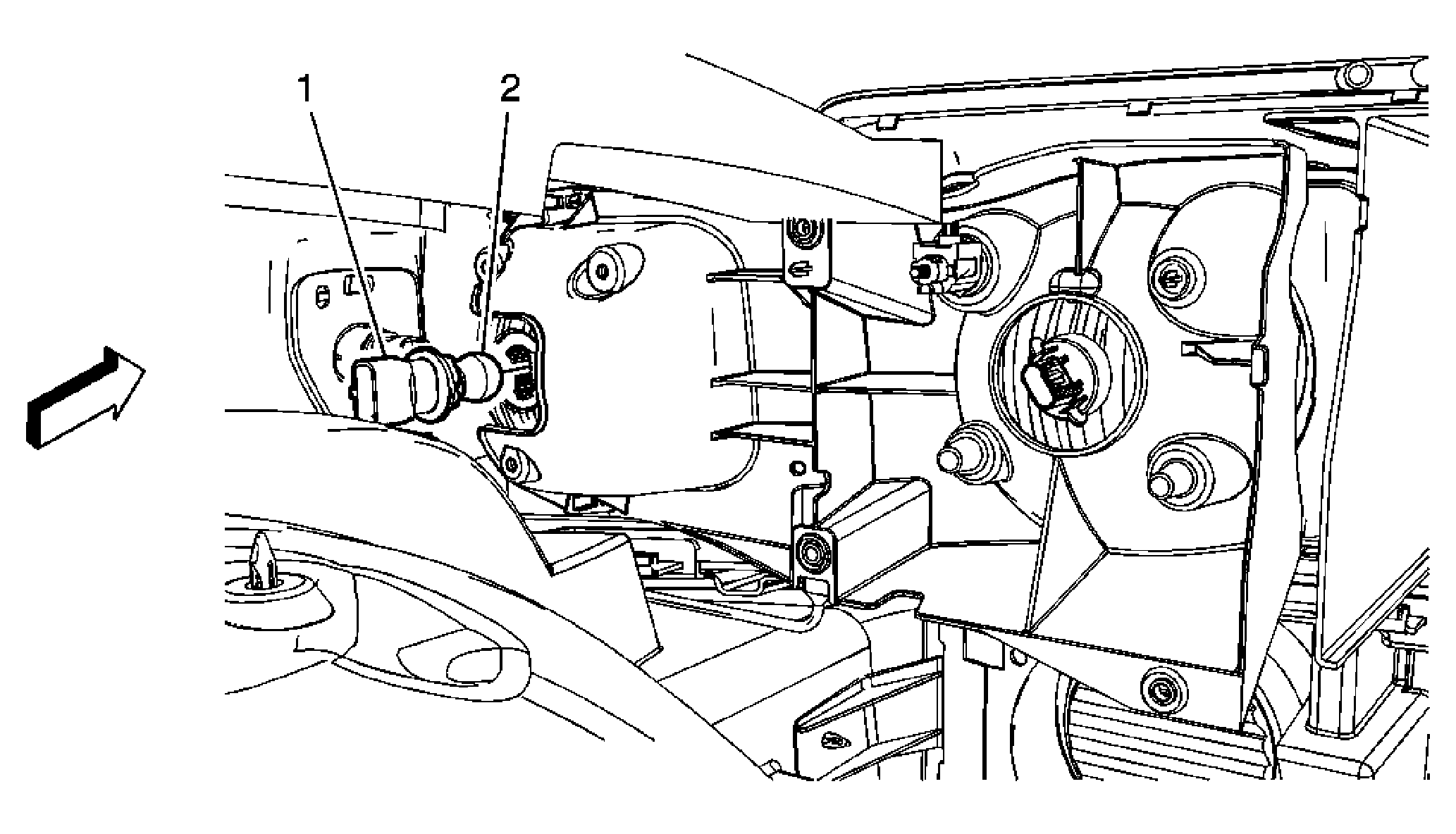

Fig 1: Daytime Running Lamp Bulb Replacement
GM1646102Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove either the RH or LH front wheelhouse panel. Refer to Wheelhouse Panel Replacement (Front) or Wheelhouse Panel Replacement (Rear) .
  2. Disconnect the electrical connector to the daytime running lamp (DRL) bulb socket.
1 Daytime Running Lamp Bulb Socket
Tip:  Twist the lamp socket counterclockwise to remove.
2 Daytime Running Bulb
