Body Control System Schematics

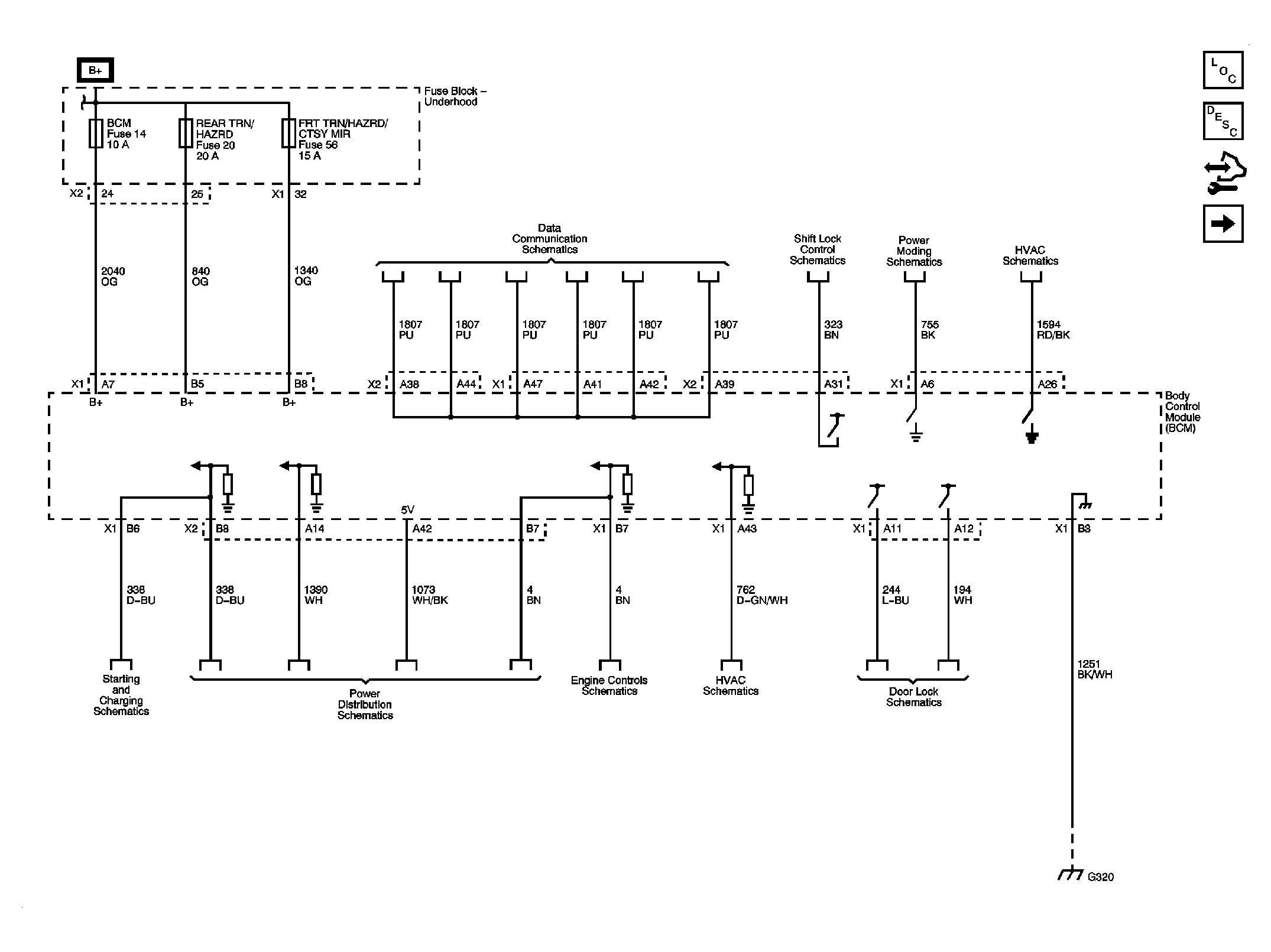

Fig 1: Power, Ground, Serial Data, and Power Moding References
GM1911924Courtesy of GENERAL MOTORS CORP.
Fig 2: Antilock Brake, Horn, Theft, and Wiper/Washer References
GM1911925Courtesy of GENERAL MOTORS CORP.

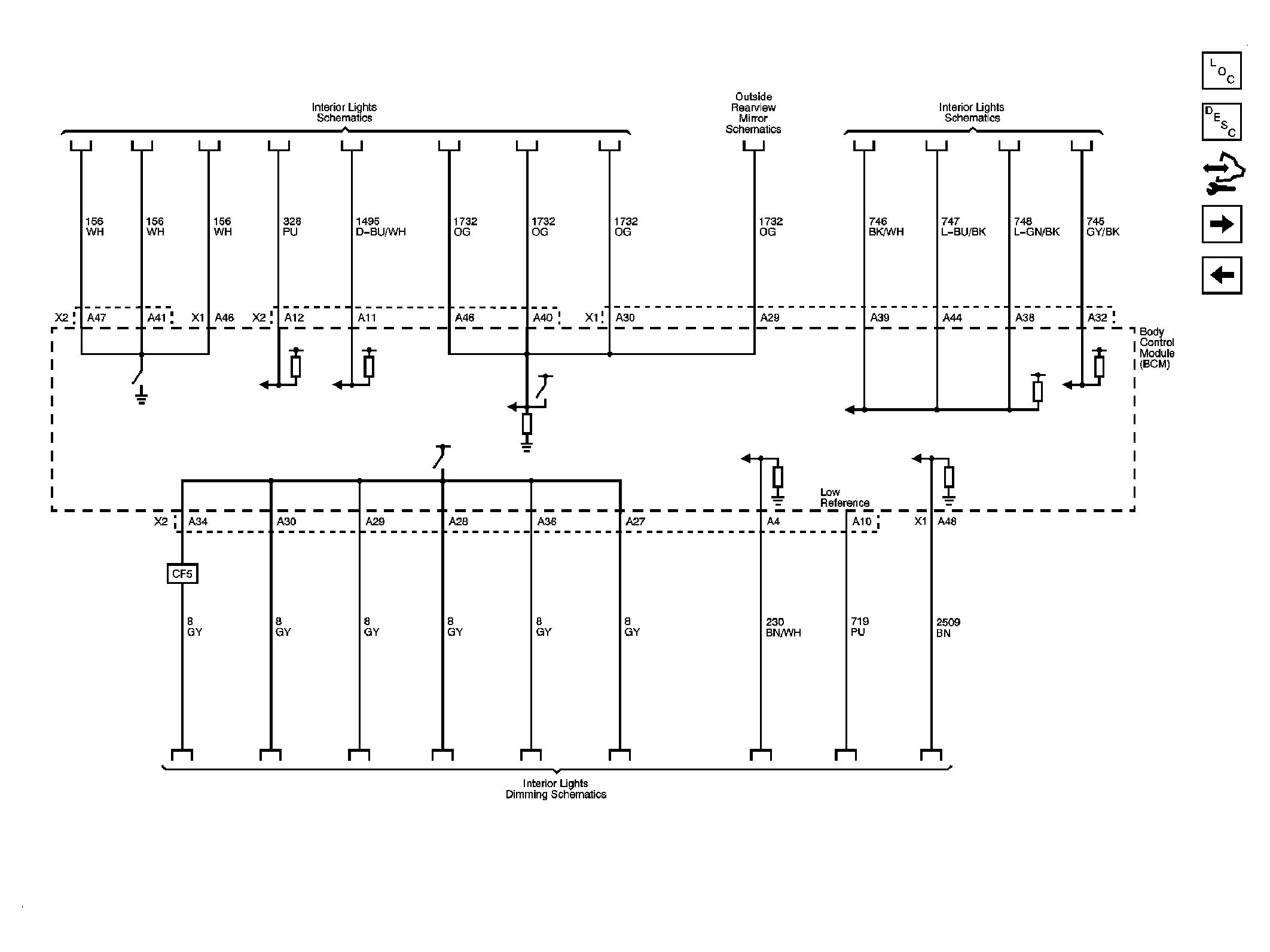

Fig 3: Vehicle Access, Interior Lights, and Interior Lights Dimming References
GM1911926Courtesy of GENERAL MOTORS CORP.

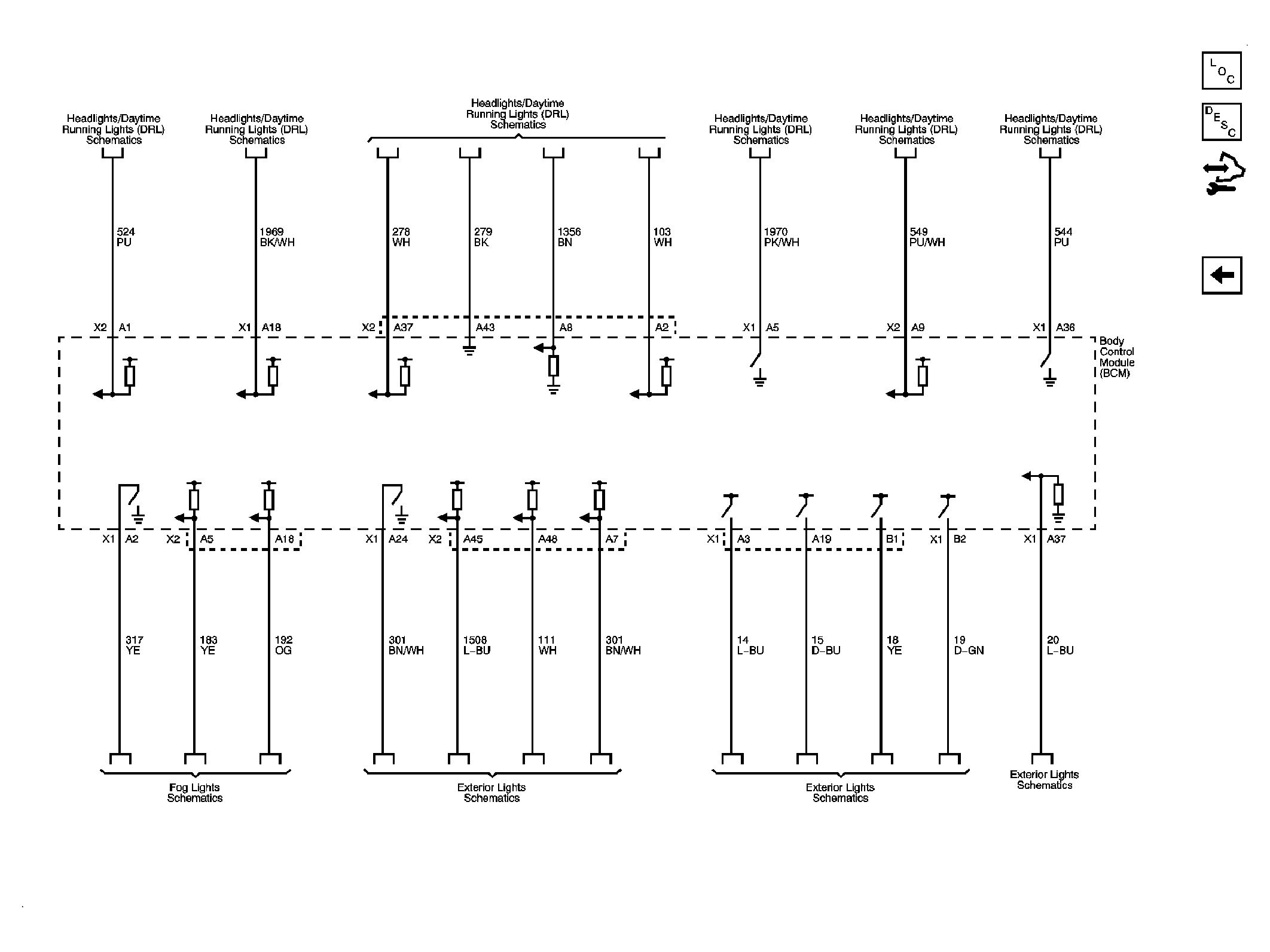

Fig 4: Exterior Lighting References
GM1911928Courtesy of GENERAL MOTORS CORP.
