Front Seat Heater Control Module Replacement

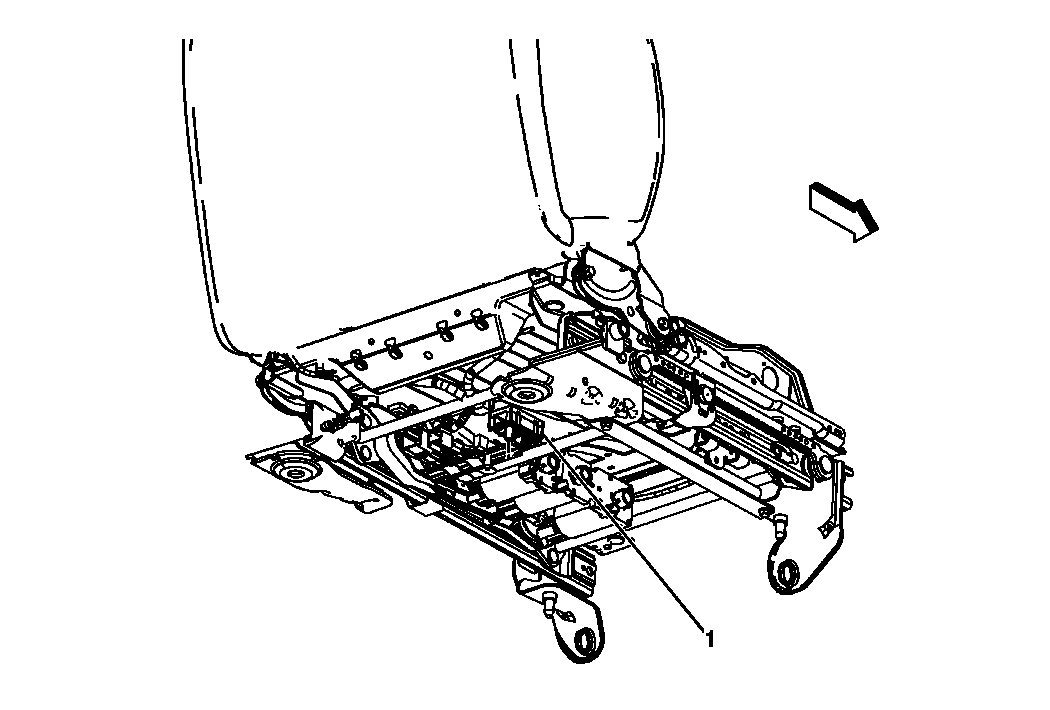

Fig 1: View of Front Seat Heater Control Module
GM1820334Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front seat. Refer to Front Seat Replacement - Bucket .
1 Seat Control Module Assembly
Tip:  Disconnect the electrical connector and remove the module from the seat cushion frame.
