OnStar Schematics

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

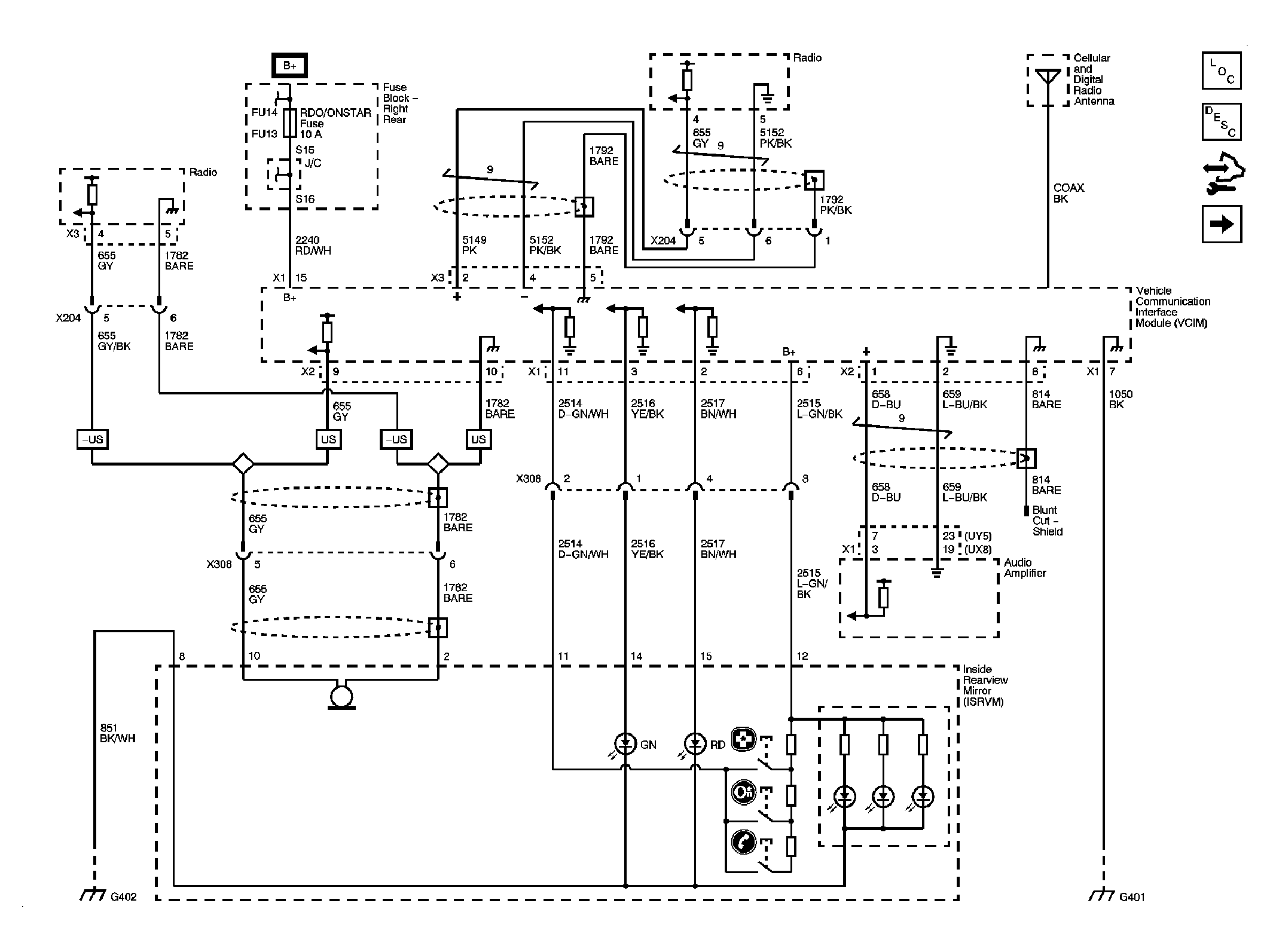

Fig 1: UE1
GM2285191Courtesy of GENERAL MOTORS CORP.

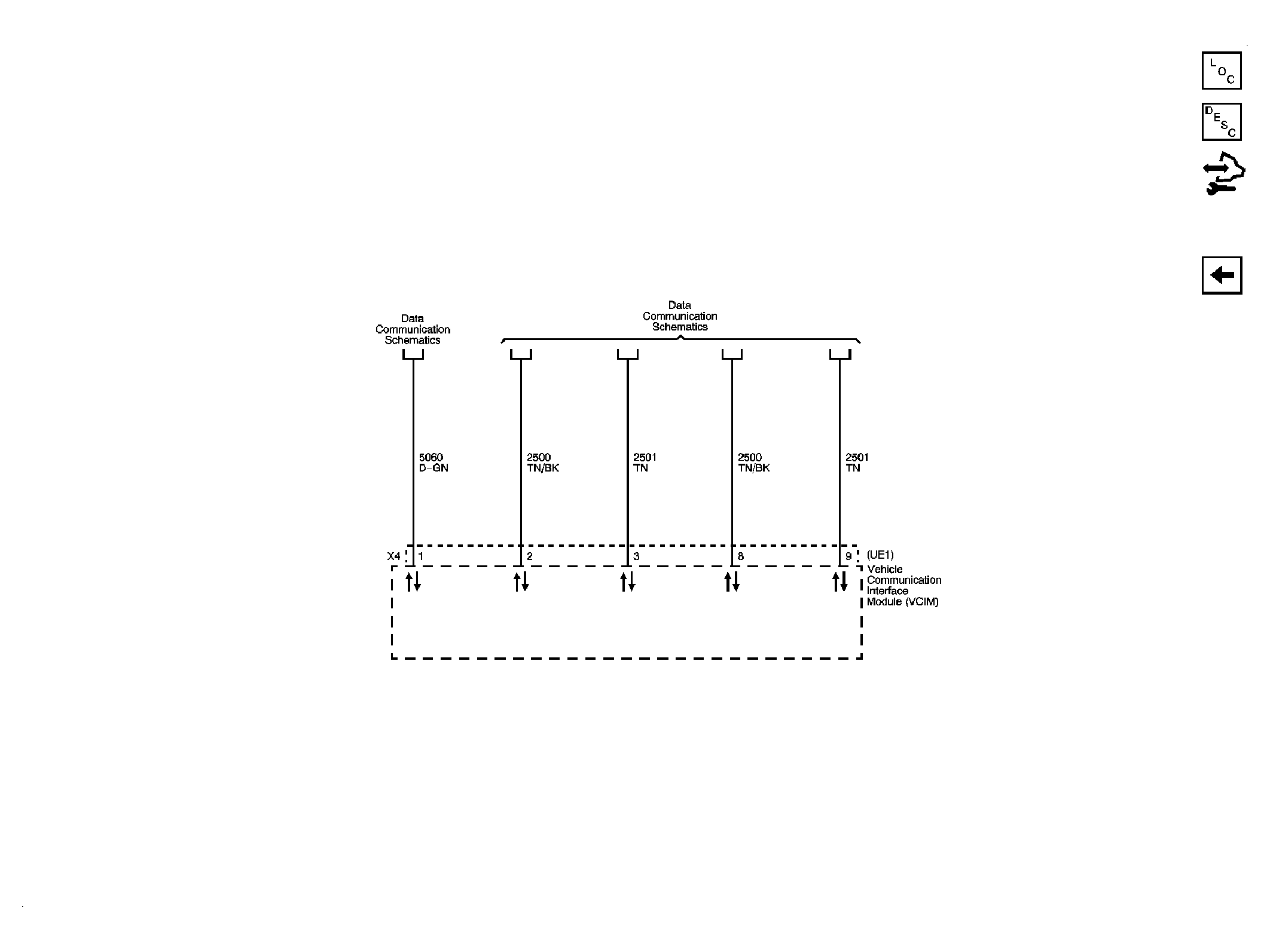

Fig 2: Data Communication
GM2285192Courtesy of GENERAL MOTORS CORP.
