Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

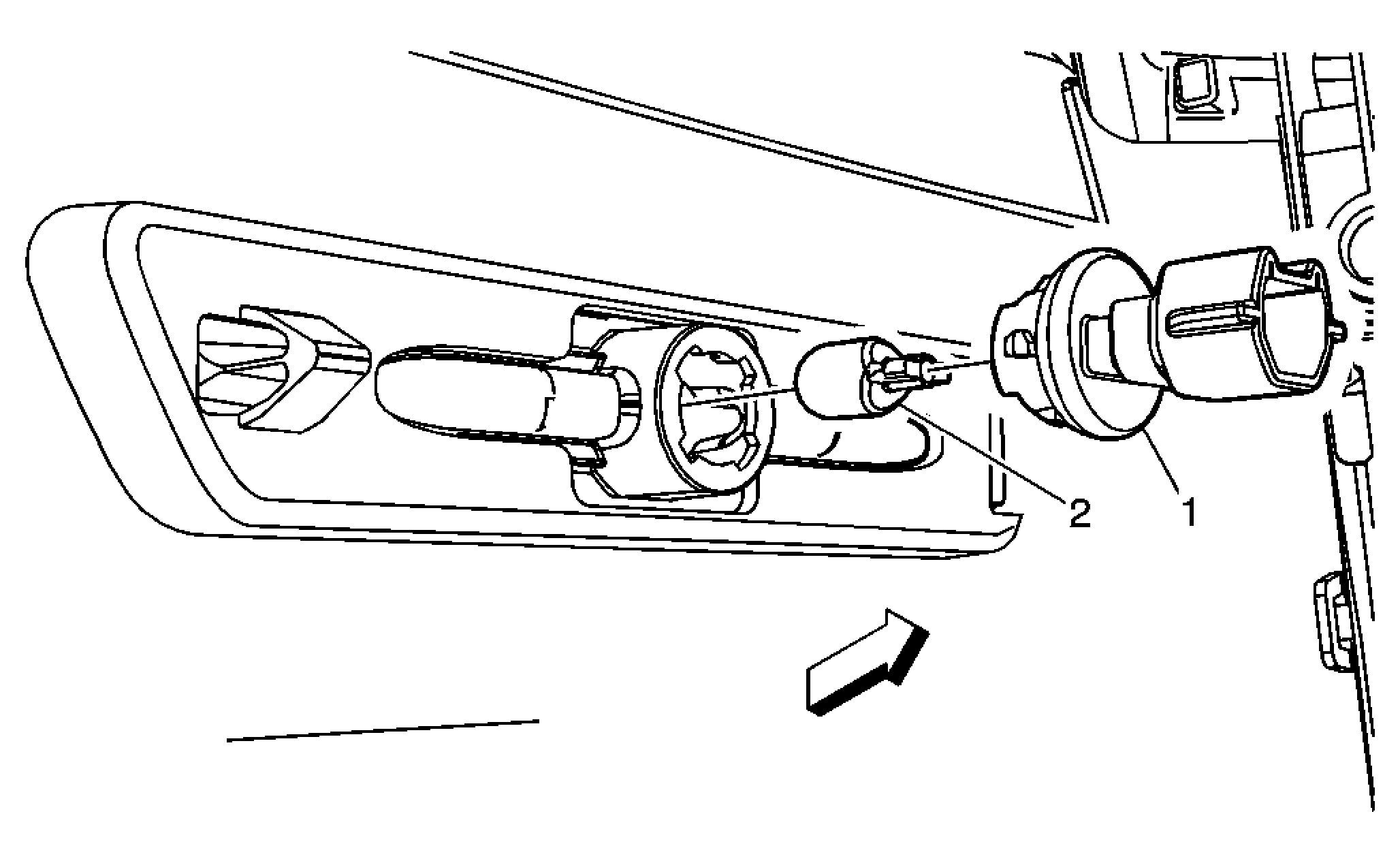

Fig 1: View Of Front Side Marker Lamp Bulb & Socket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove either the LF or RF inner wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Side Marker Lamp Bulb Socket Tip: Rotate the lamp socket a quarter turn counter-clockwise in order to remove.
2	Front Side Marker Lamp Bulb
