OnStar Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

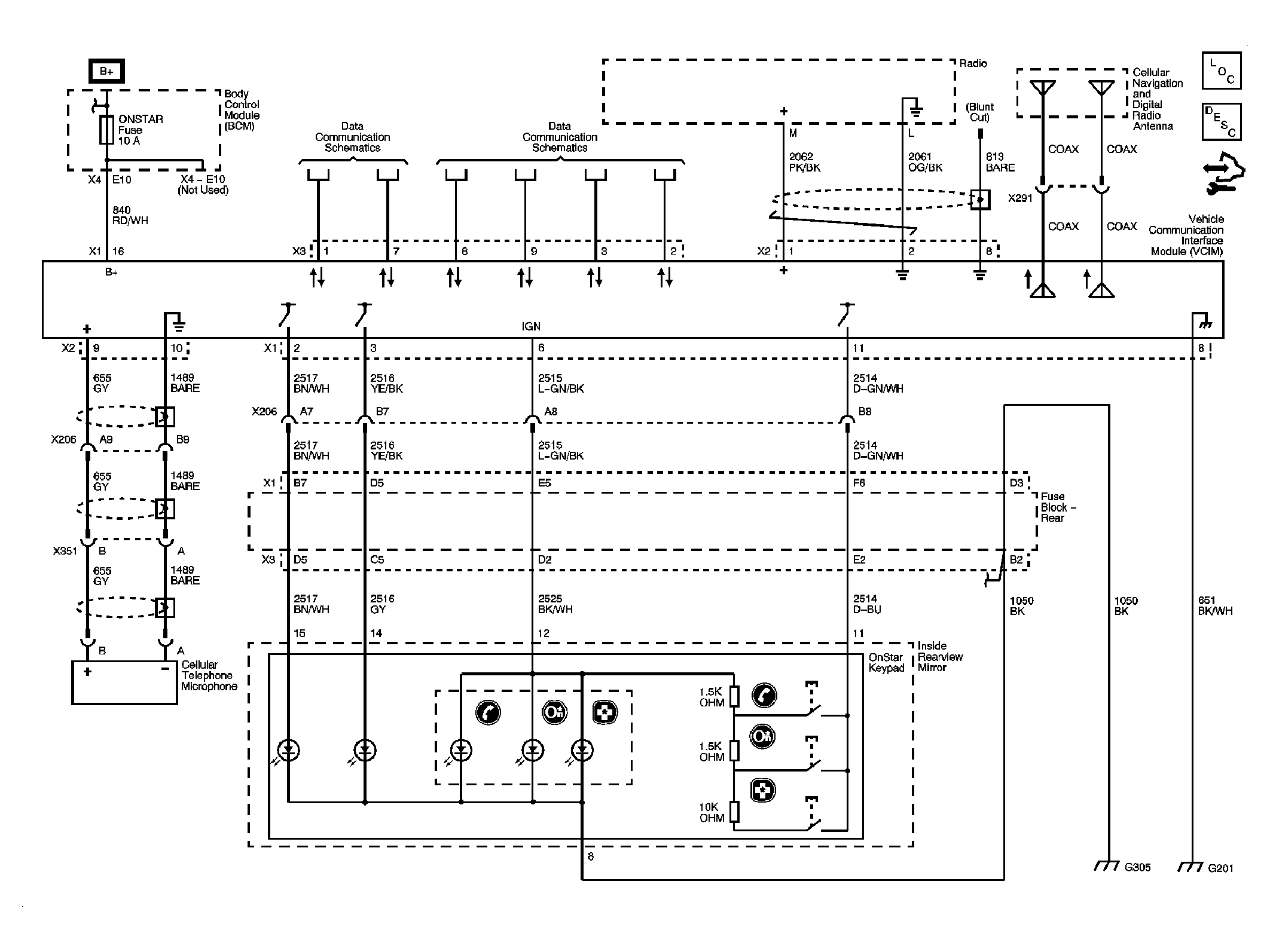

Fig 1: OnStar - Schematic
GM1891687Courtesy of GENERAL MOTORS CORP.
