Power Distribution Schematics

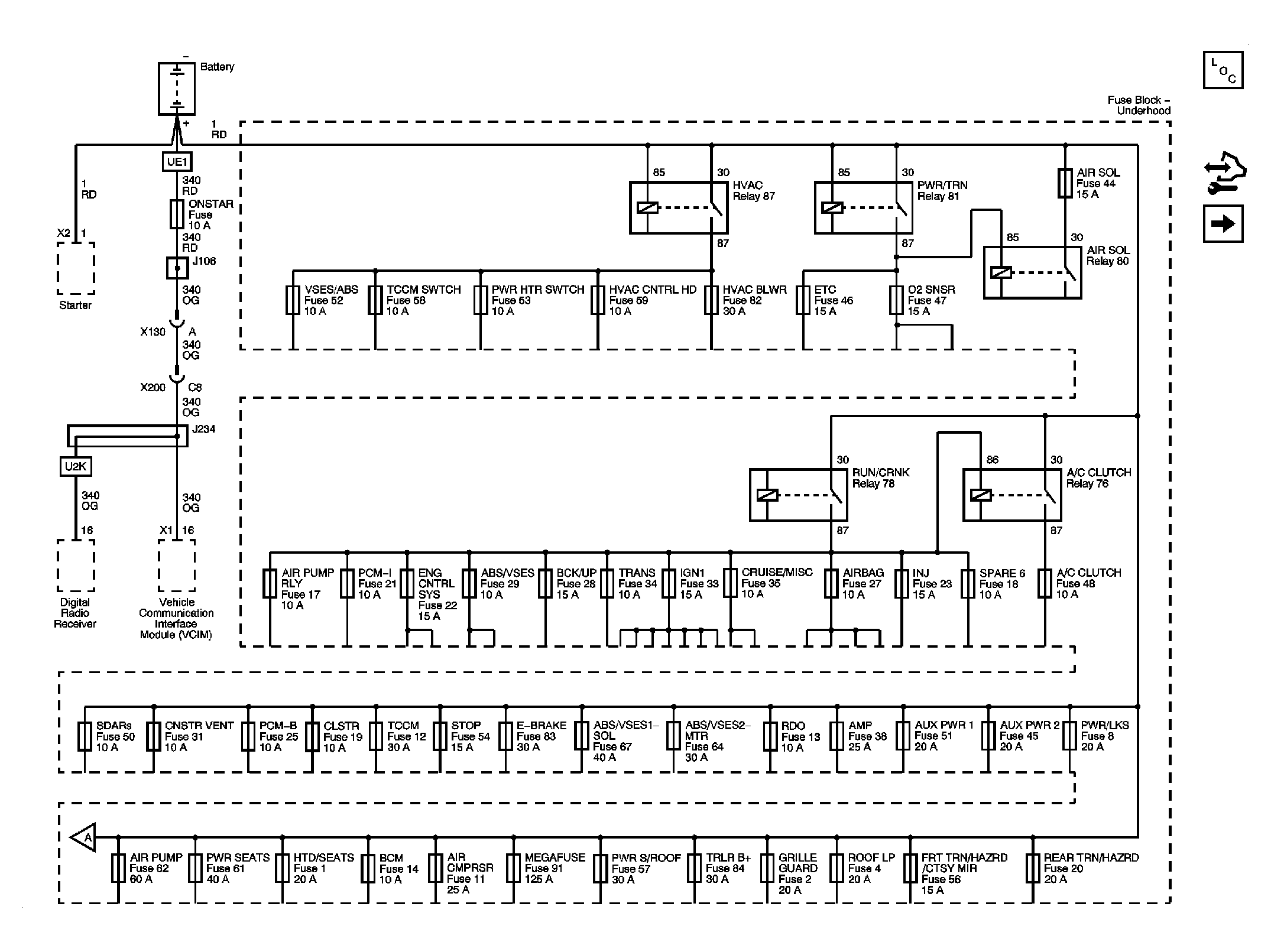

Fig 1: B+BUS - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+BUS - 2 of 2

Courtesy of GENERAL MOTORS CORP.

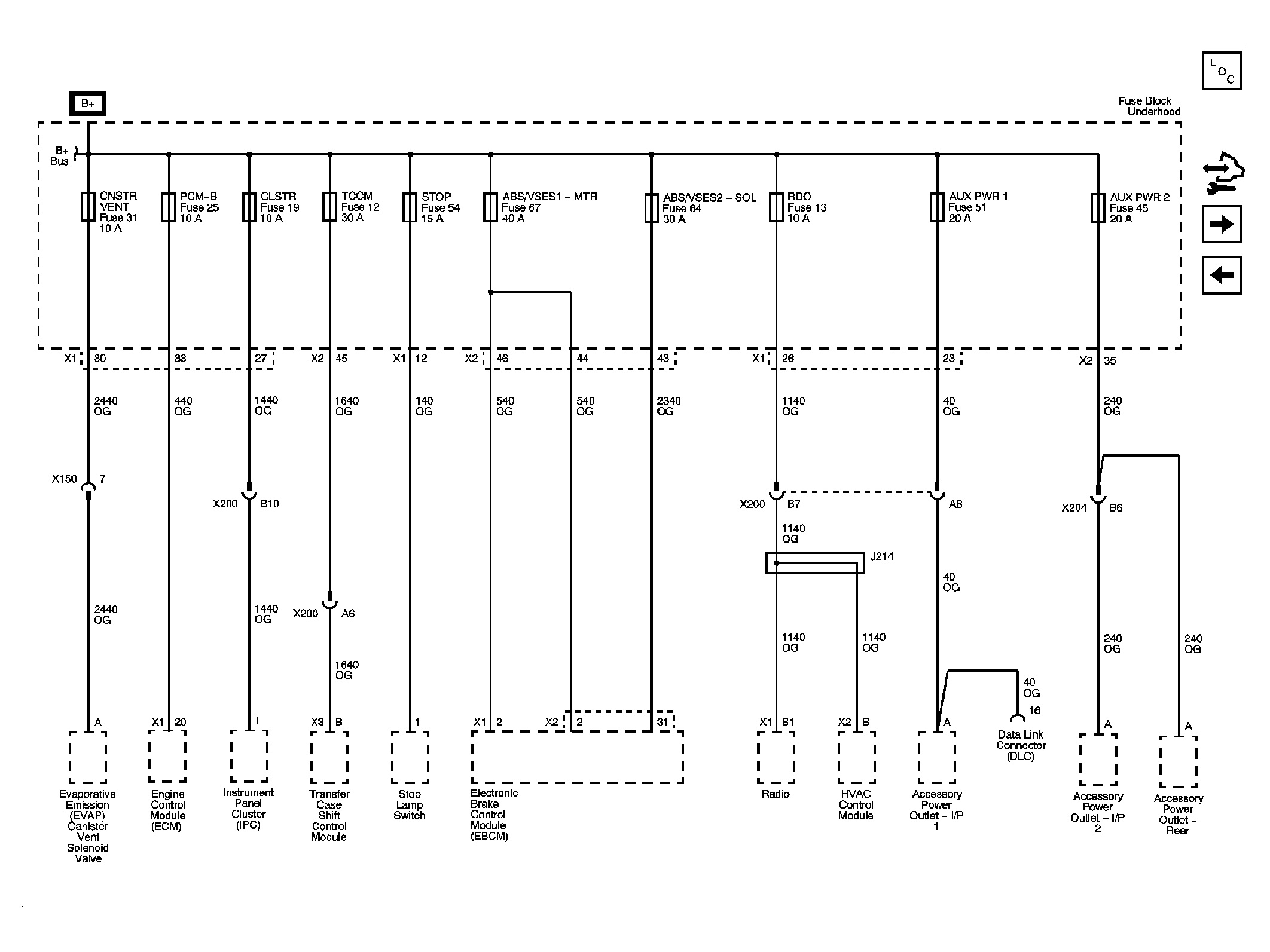

Fig 3: ABS/VSES1 - MTR, ABS/VSES2 - SOL, AUX PWR 1, AUX PWR 2, CLSTR, CNSTR VENT, PCM-B, RDO, STOP, and TCCM Fuses

Courtesy of GENERAL MOTORS CORP.

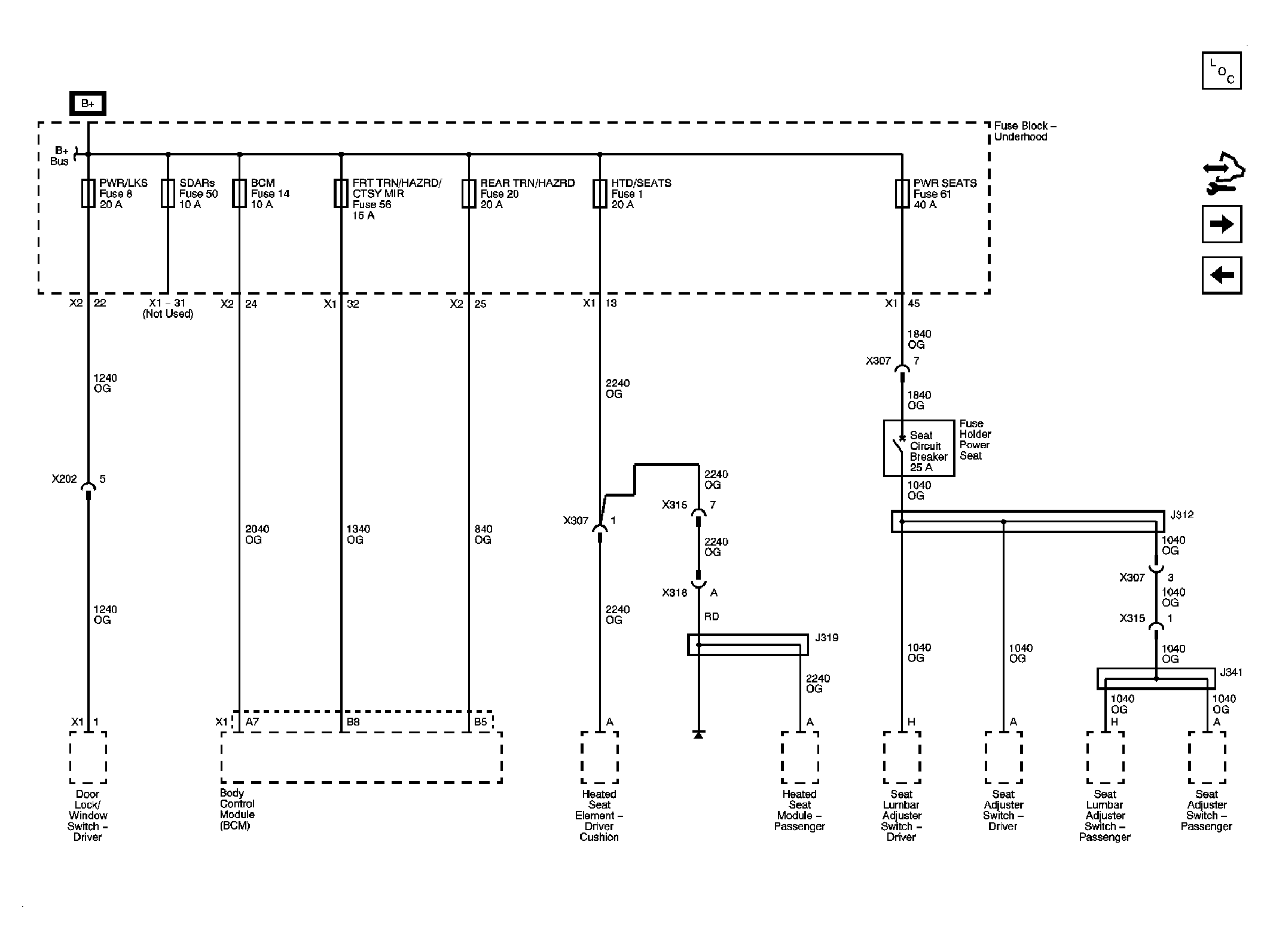

Fig 4: BCM, FRT TRN/HAZRD/CTSY MIR, HTD/SEATS, PWR/LKS, PWR SEATS, REAR TRN/HAZRD, and SDARs Fuses

Courtesy of GENERAL MOTORS CORP.

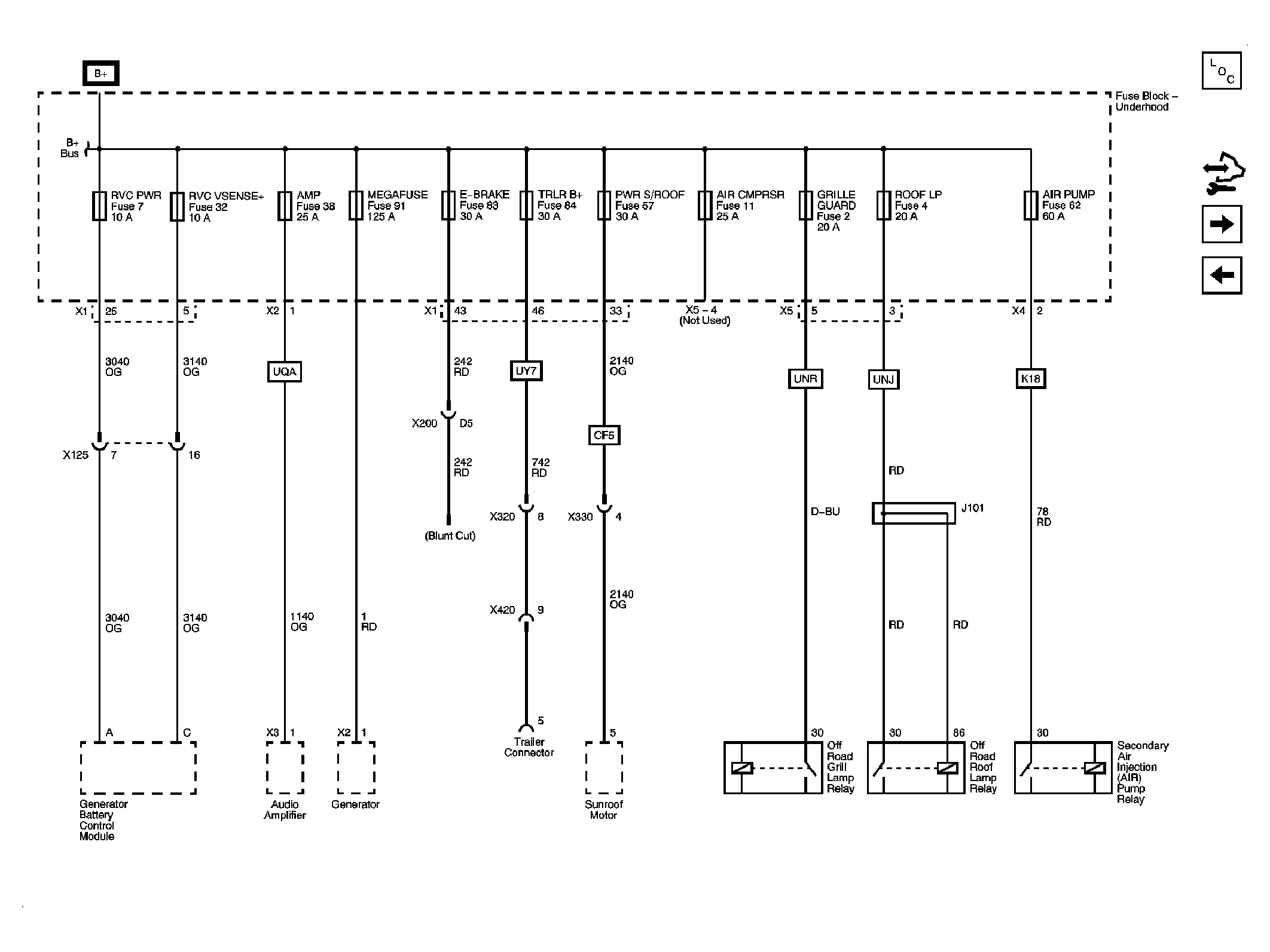

Fig 5: AIR CMPRSR, AIR PUMP, AMP, E-BRAKE, GRILLE GUARD, MEGAFUSE, PWR S/ROOF, ROOF LP, RVC PWR, RVC VSENSE+, and TRLR B+ Fuses

Courtesy of GENERAL MOTORS CORP.

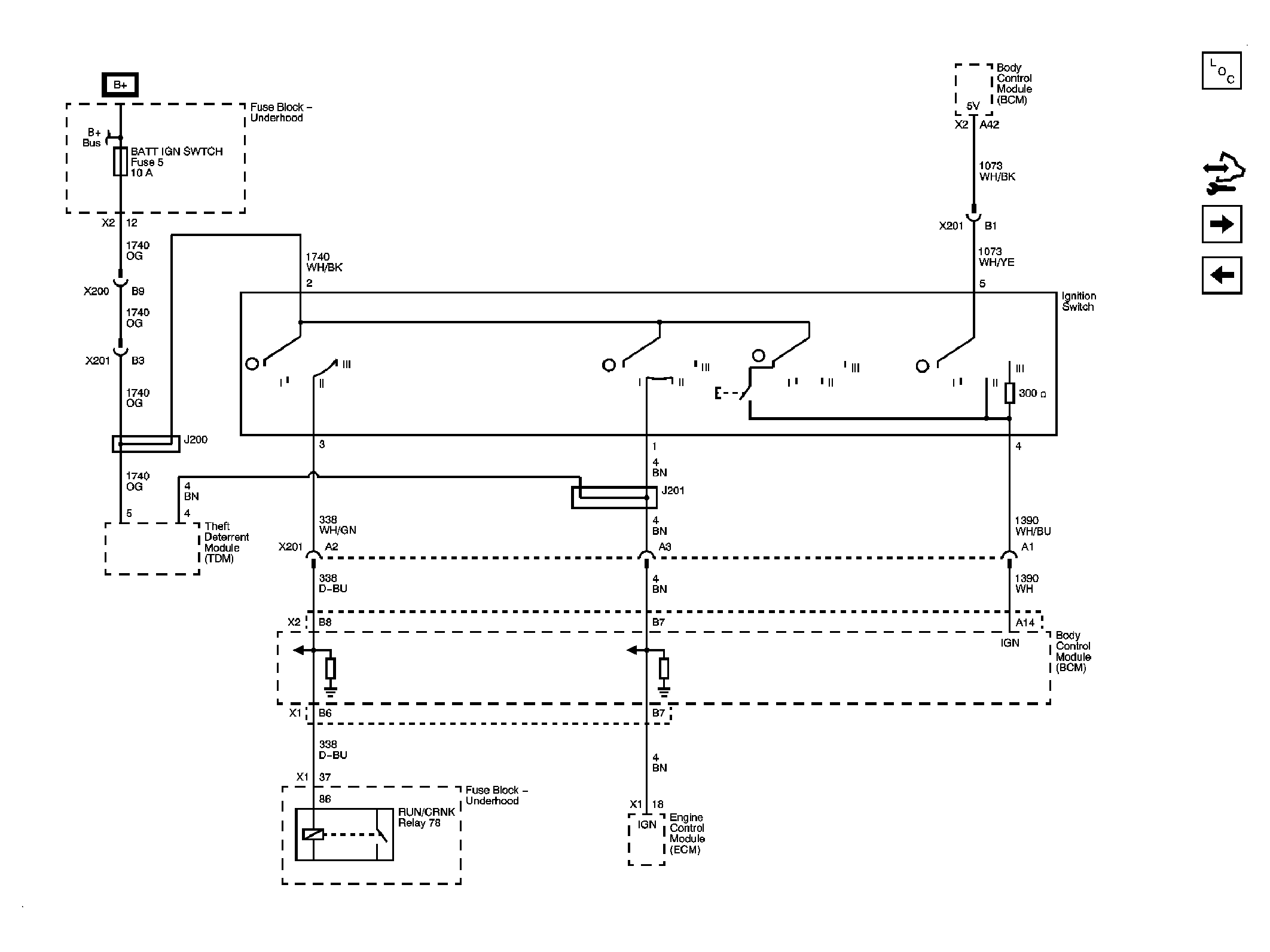

Fig 6: Ignition Switch and BATT IGN SWTCH Fuse

Courtesy of GENERAL MOTORS CORP.

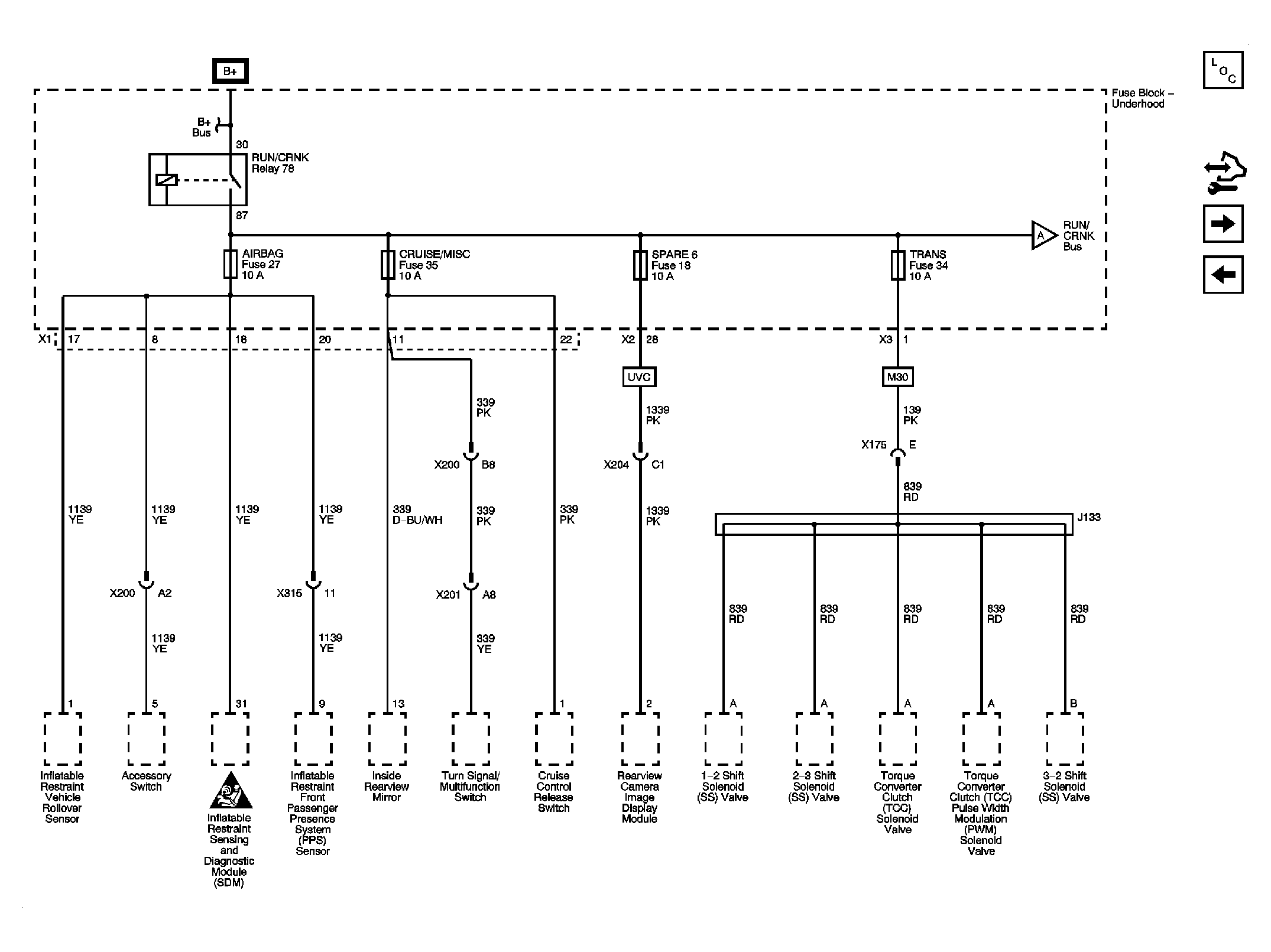

Fig 7: RUN/CRNK Relay Bus - 1 of 3, AIRBAG, CRUISE/MISC, and TRANS Fuses

Courtesy of GENERAL MOTORS CORP.

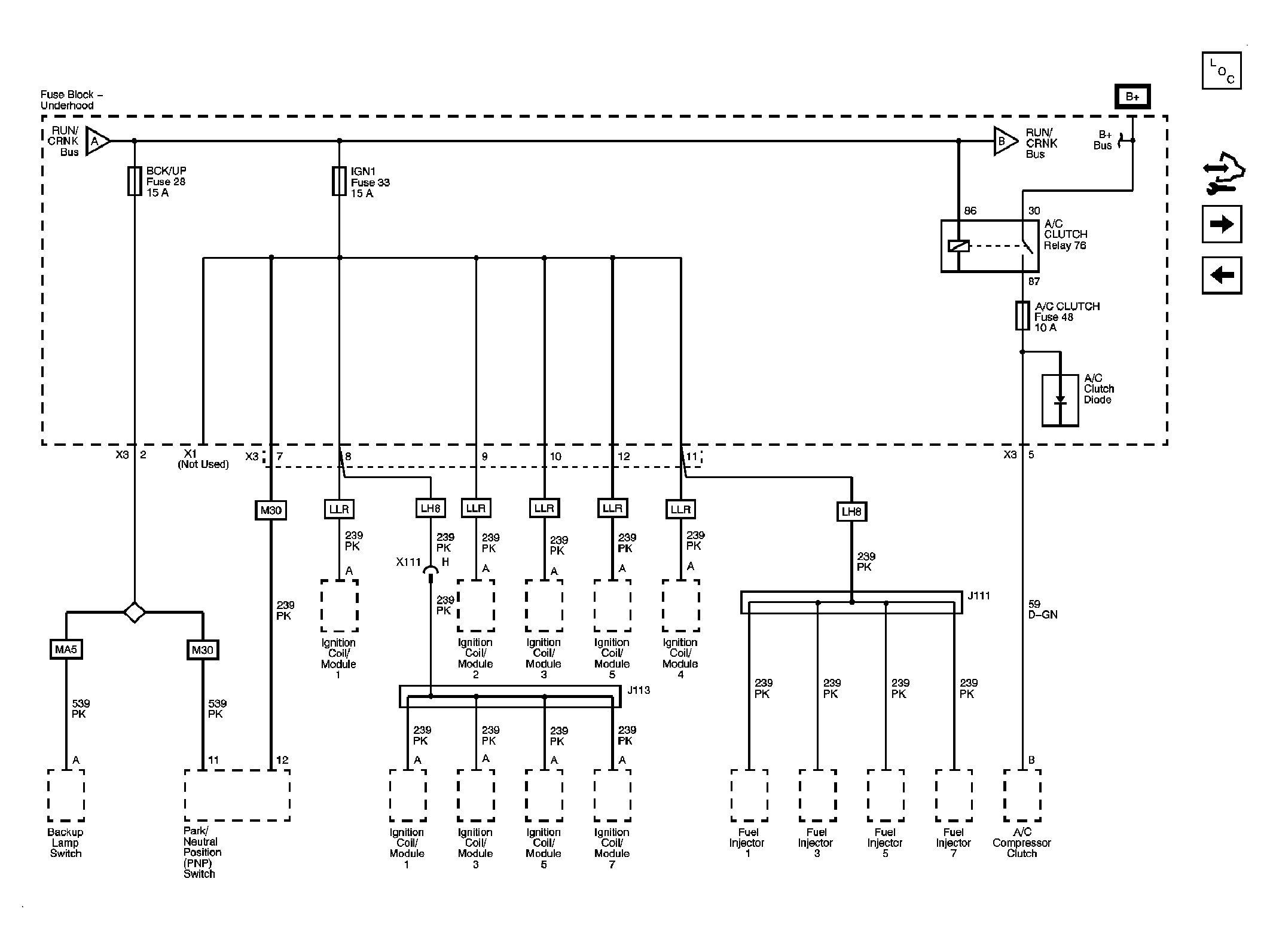

Fig 8: RUN/CRNK Relay Bus - 2 of 3, A/C Clutch, ABS/VSES, BCK/UP and IGN 1 Fuses

Courtesy of GENERAL MOTORS CORP.

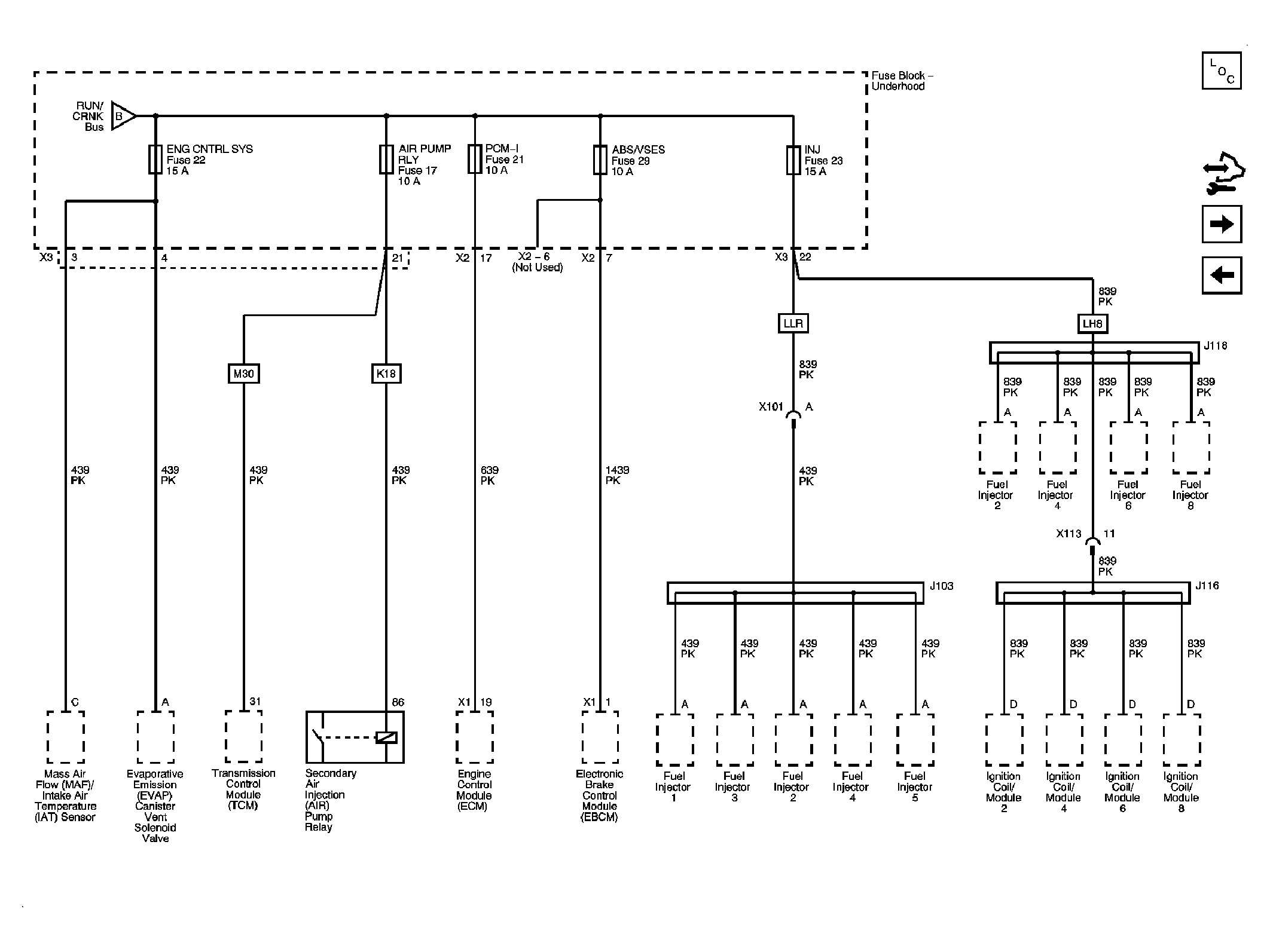

Fig 9: RUN/CRNK Relay Bus - 3 of 3, AIR PUMP RLY, ENG CNTRL SYS, INJ, and PCM-I Fuses

Courtesy of GENERAL MOTORS CORP.

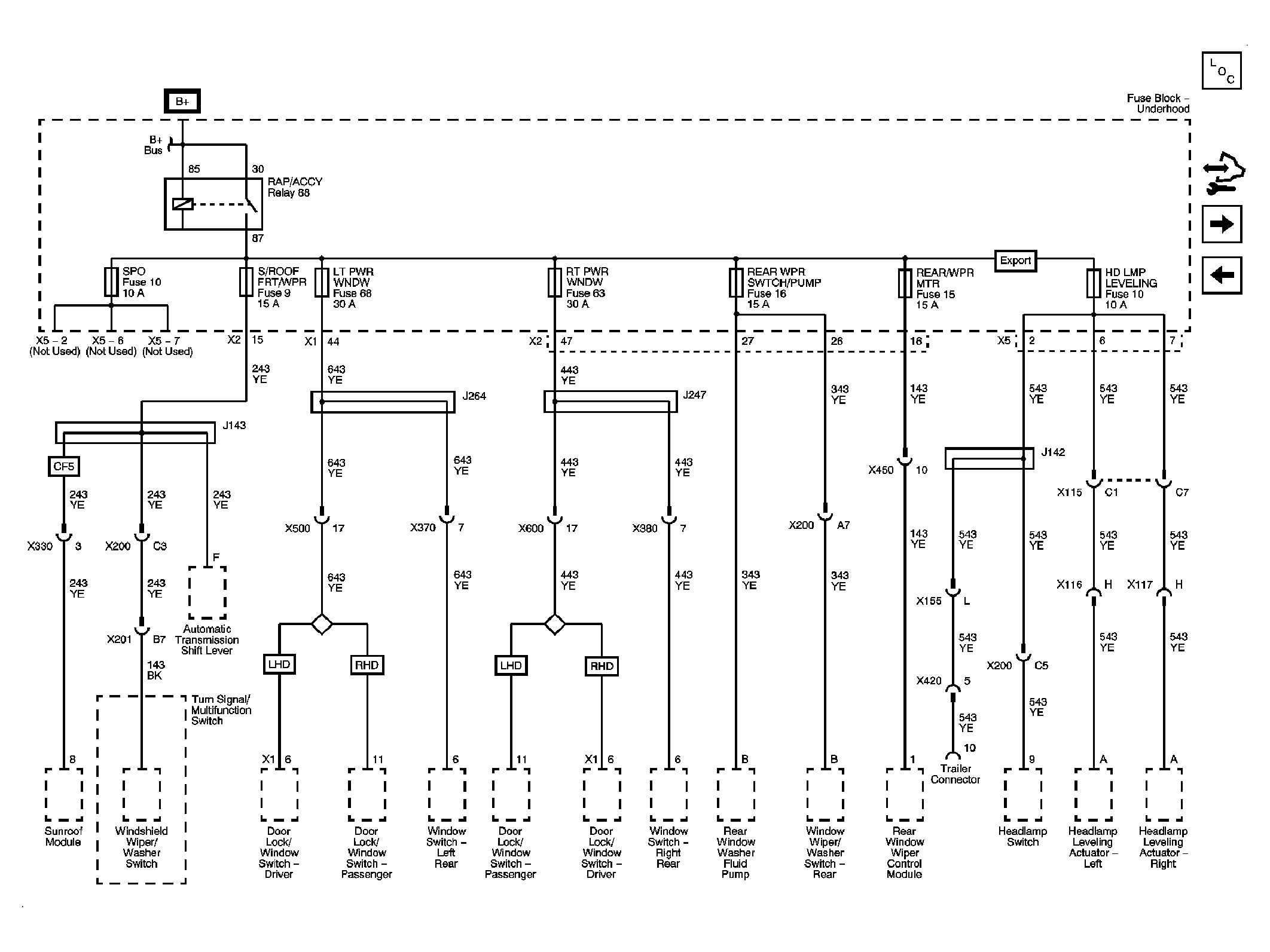

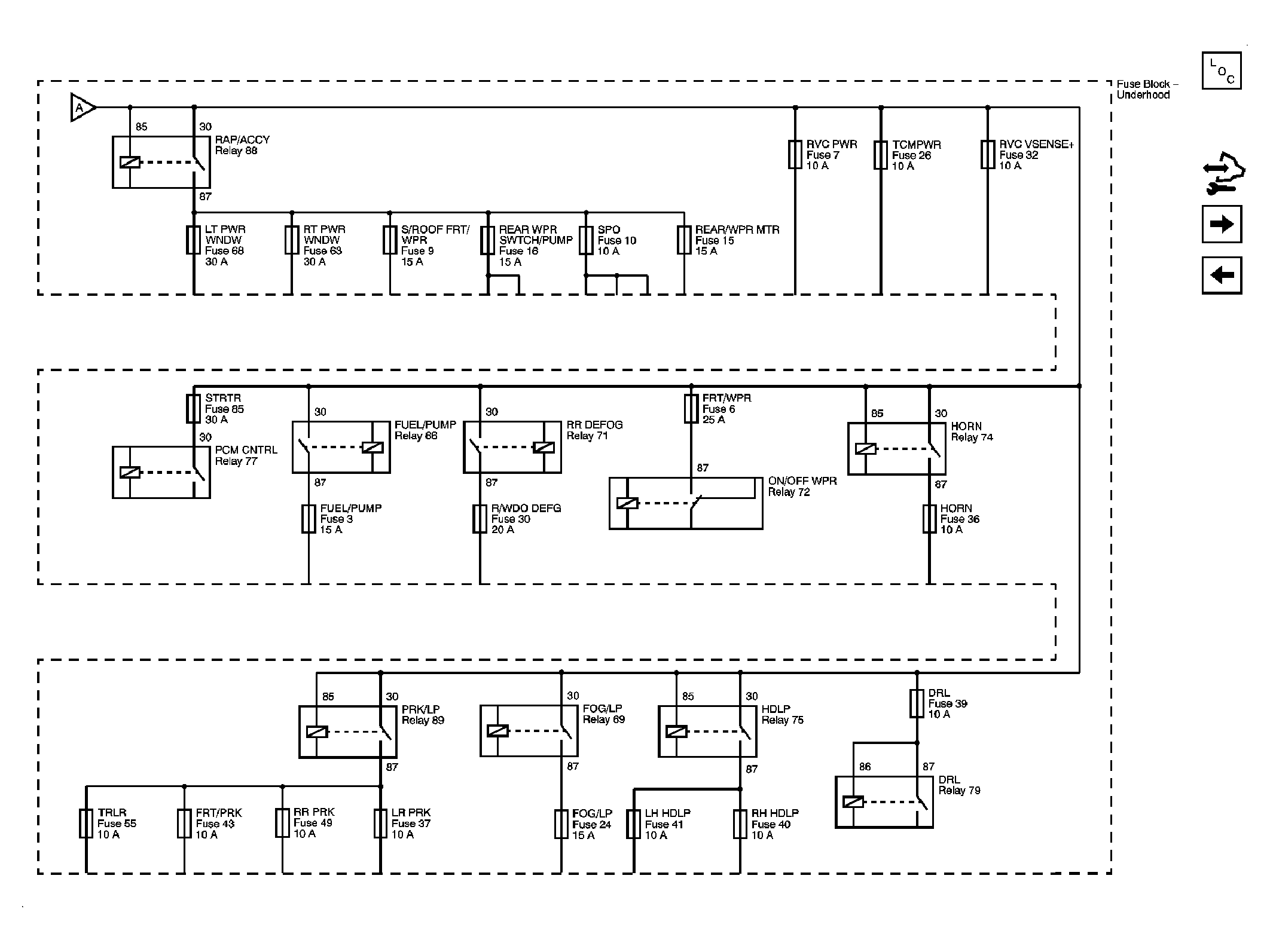

Fig 10: ETC, HDLMP LEVELING, LT PWR WNDW, O2 SNSR, REAR/WPR MTR, REAR WPR SWTCH/PUMP, RT PWR WNDW, SPO, and S/ROOF FRT/WPR Fuses

Courtesy of GENERAL MOTORS CORP.

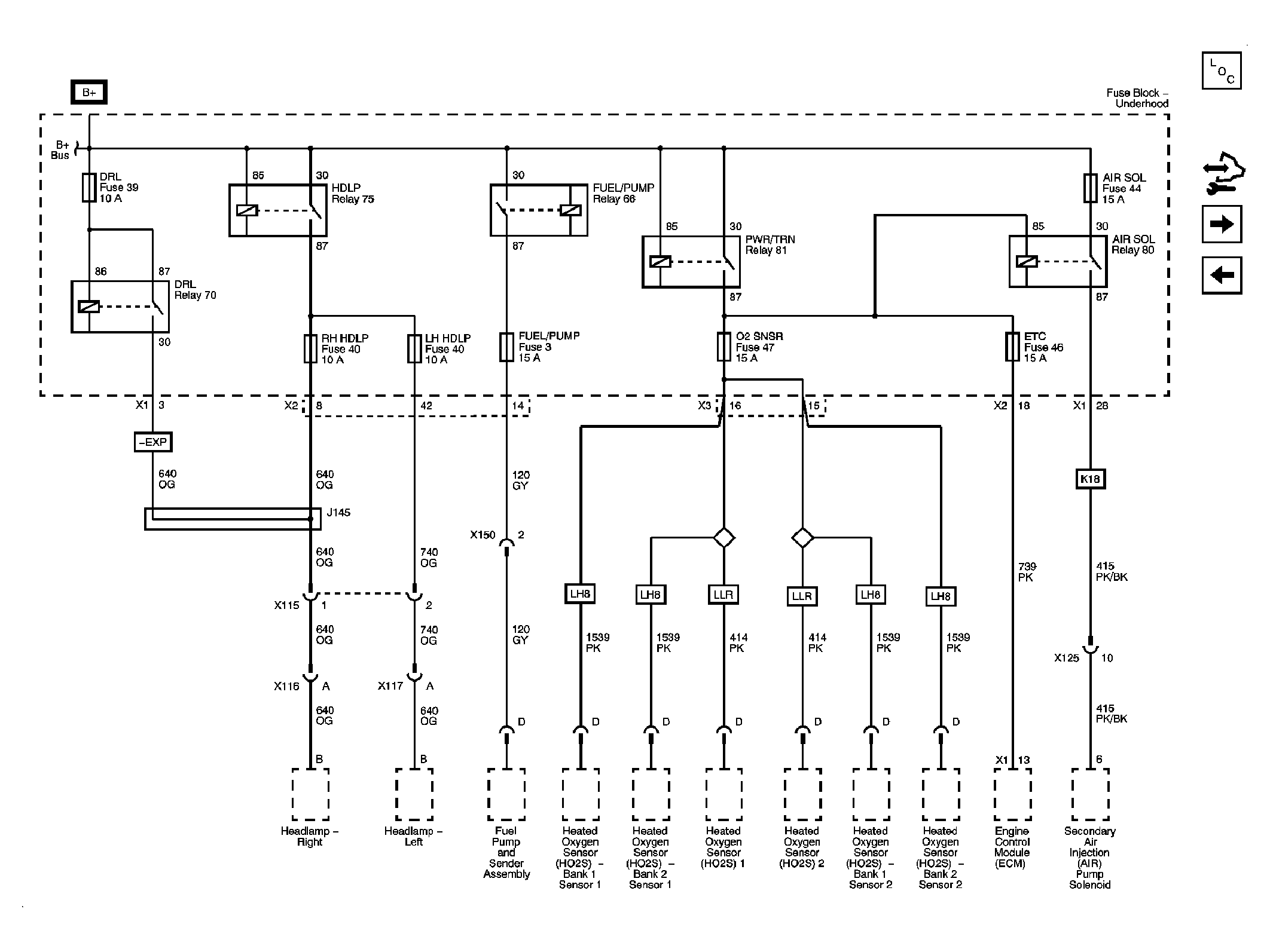

Fig 11: DRL, ETC, FUEL PUMP, LH HDLP, RH HDLP, and O2 SNSR Fuses

Courtesy of GENERAL MOTORS CORP.

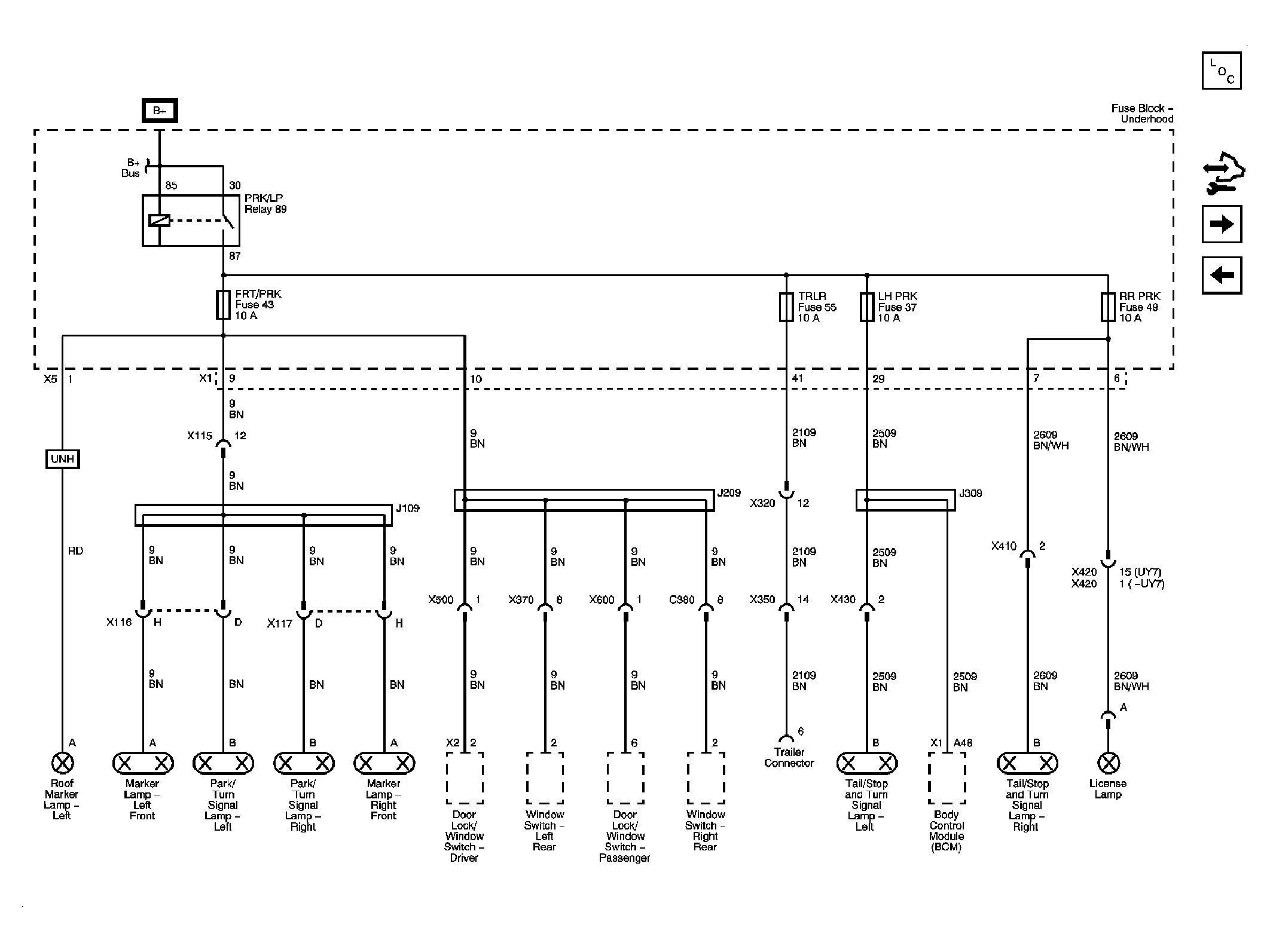

Fig 12: FRT/PRK, LR PRK, RR PRK, and TRLR Fuses

Courtesy of GENERAL MOTORS CORP.

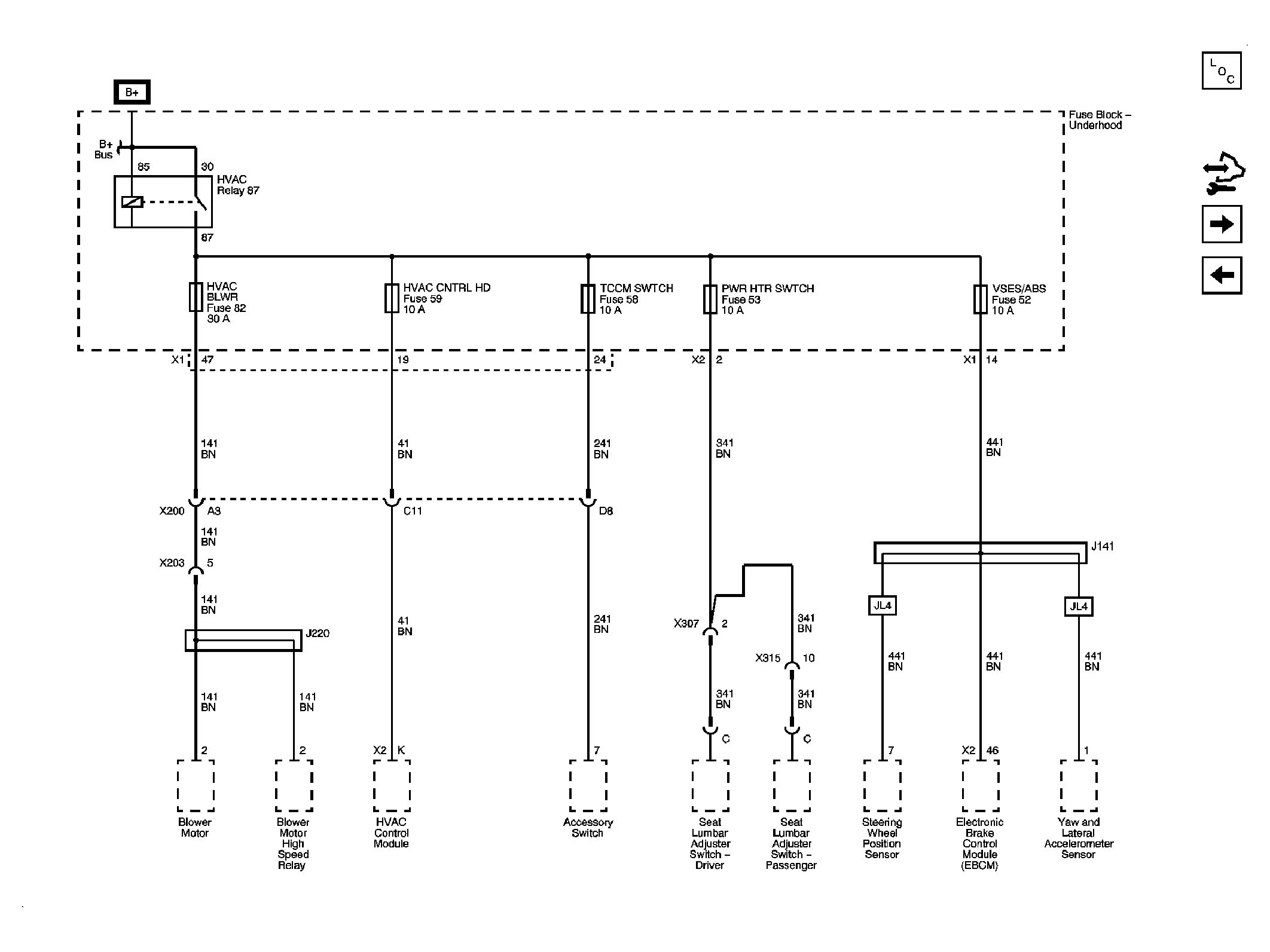

Fig 13: HVAC BLWR, HVAC CNTRL HD, PWR HTR SWTCH, TCCM SWTCH, and VSES/ABS Fuses

Courtesy of GENERAL MOTORS CORP.

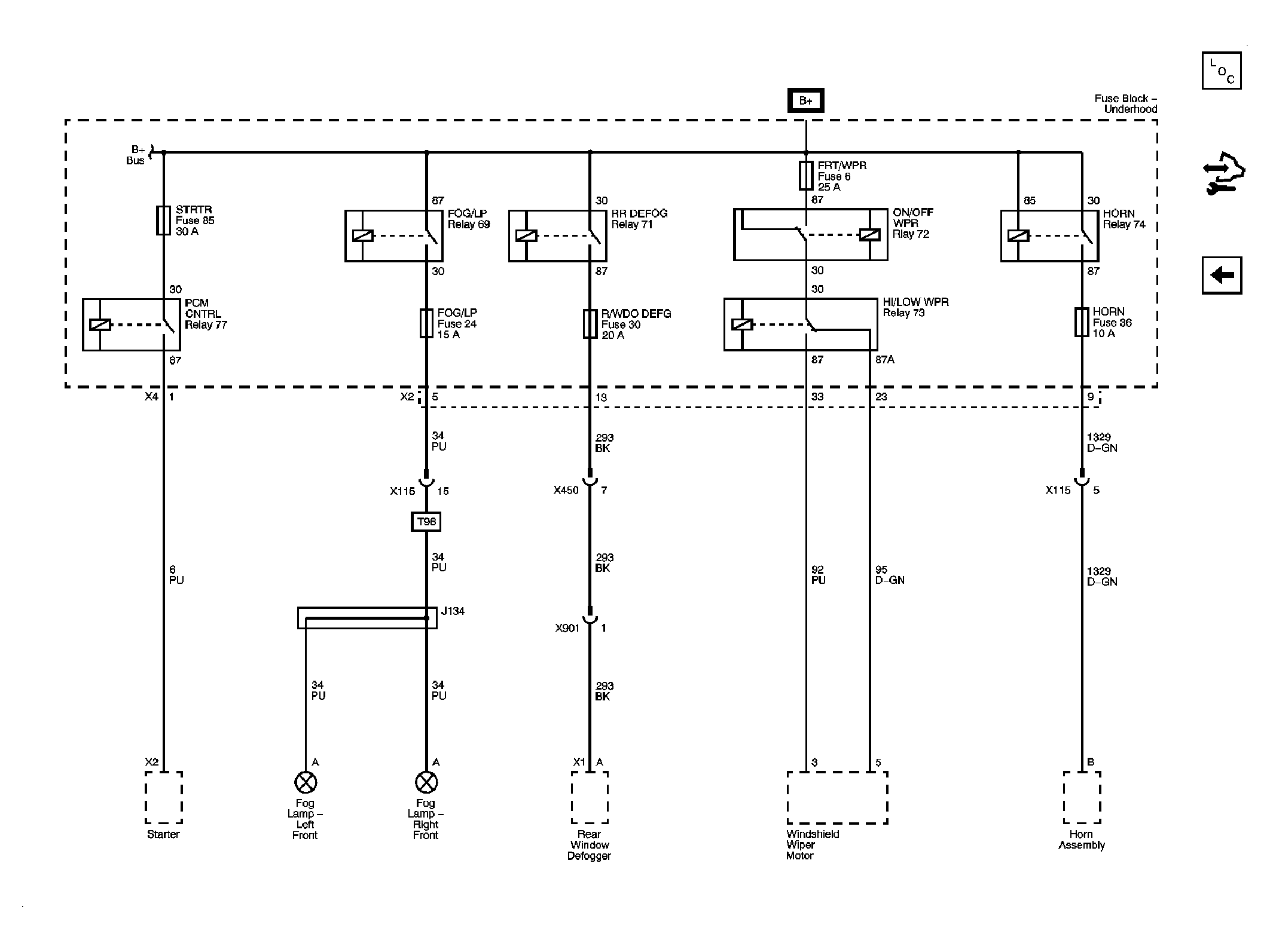

Fig 14: FOG/LP, FRT/WPR, HORN, R/WDO DEFG, and STRTR Fuses

Courtesy of GENERAL MOTORS CORP.
