Power Moding Schematics

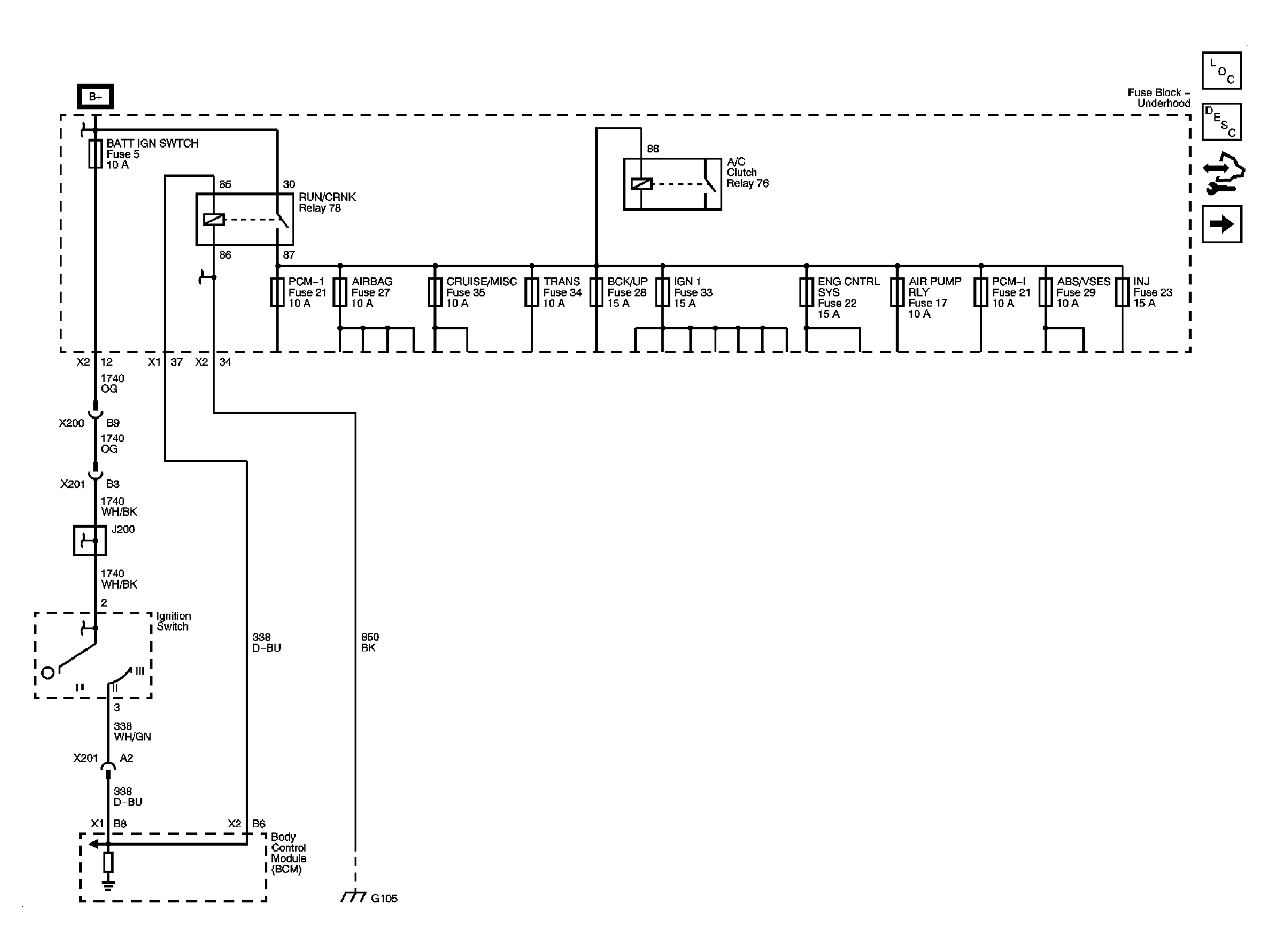

Fig 1: Run/Crank
GM1923399Courtesy of GENERAL MOTORS CORP.

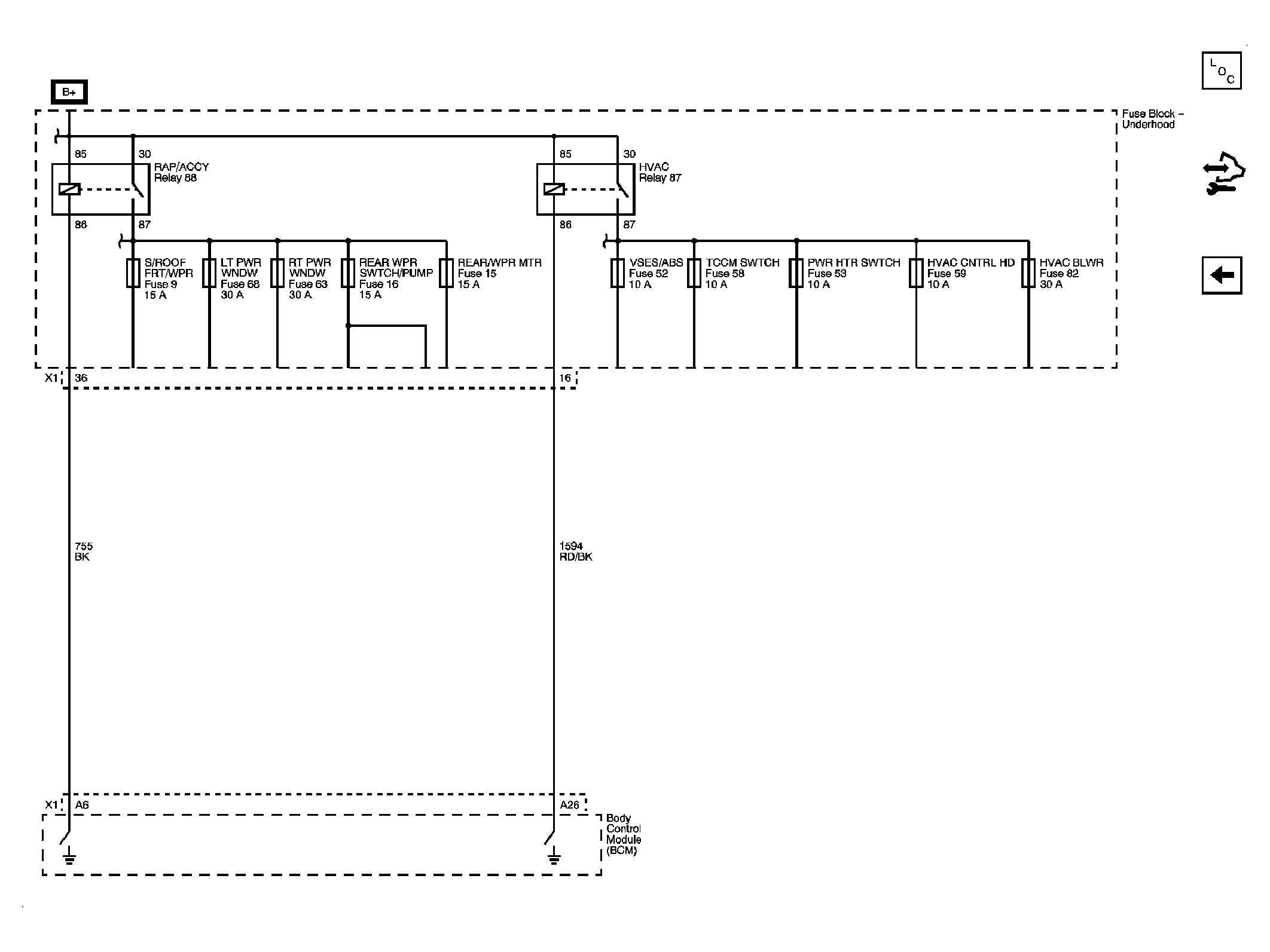

Fig 2: RAP/ACCY and HVAC
GM1911995Courtesy of GENERAL MOTORS CORP.
