Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

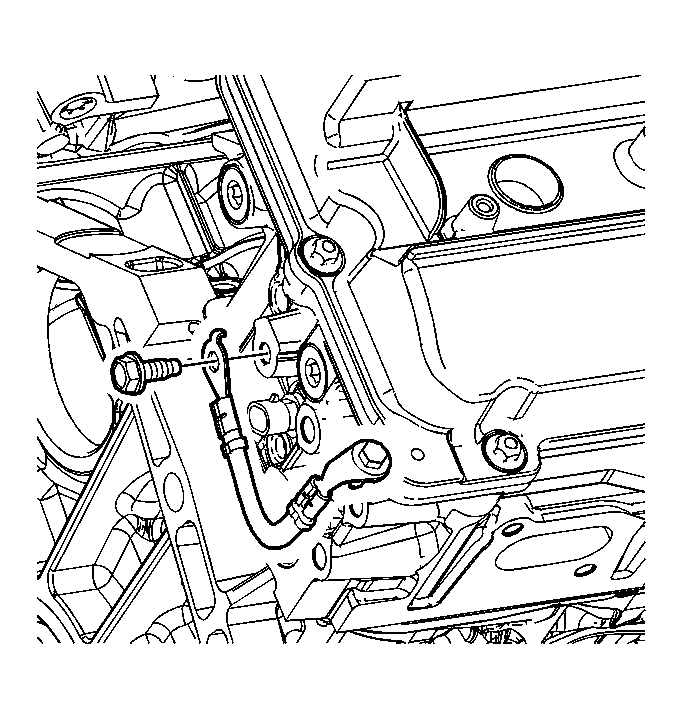

    Fig 1: Right Ground Strap & Bolt
    GM928269Courtesy of GENERAL MOTORS CORP.
  1. Install the right side ground strap into the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the right side ground strap to cam cover bolt and tighten to 10 N.m (89 lb in).
  3. Install the right side ground strap to cylinder head bolt 25 N.m (18 lb ft).

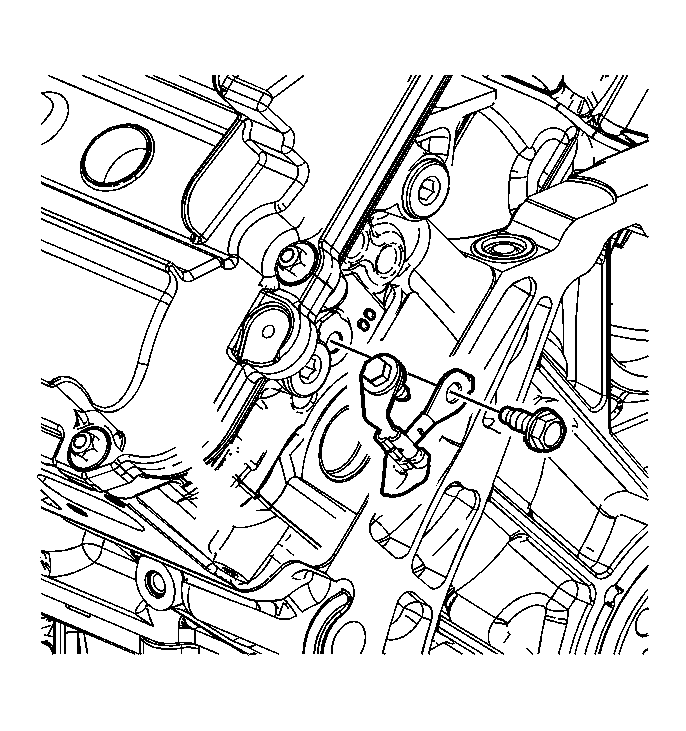

    4. Fig 2: Left Ground Strap & Bolts
    GM928237Courtesy of GENERAL MOTORS CORP.
  4. Install the left side ground strap into the vehicle.
  5. Install the left side ground strap to cam cover bolt 10 N.m (89 lb in).
  6. Install the left side ground strap to cylinder head bolt 25 N.m (18 lb ft).
  7. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
