Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

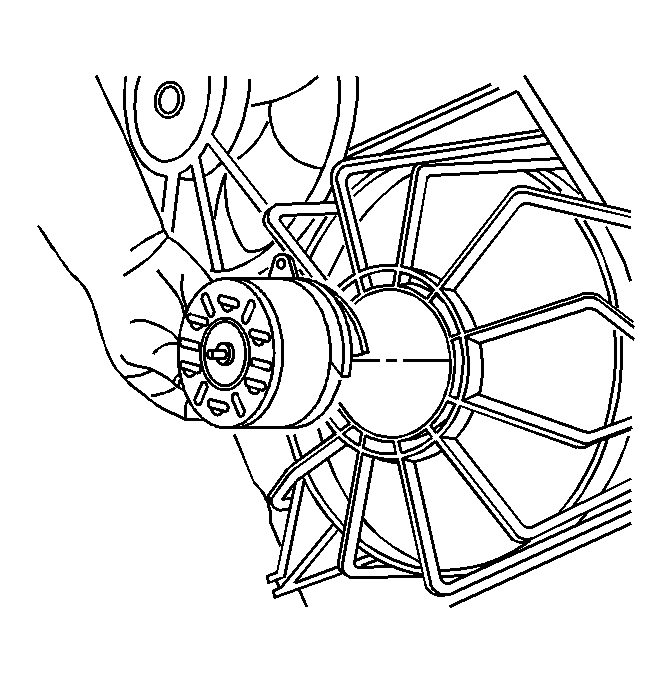

Fig 1: View Of Cooling Fan Motor

Courtesy of GENERAL MOTORS CORP.

Install the motor to the shroud.

Fig 2: Locating Motor Retaining Screws

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the cooling fan motor retaining screws (1) and tighten to 5 N.m (44 lb in).

Fig 3: View Of Motor Shaft Fan Blade

Courtesy of GENERAL MOTORS CORP.

Install the fan blade to the motor shaft.
Rotate the fan until the fan drops onto the shaft.

Fig 4: Locating Fan Blade Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

Install the fan blade retaining nut (1) to the motor and tighten to 7 N.m (62 lb in).
Install the cooling fan assembly. Refer to Engine Coolant Fan Replacement (LY7) or Engine Coolant Fan Replacement (LH2 Heavy Duty Cooling) or Engine Coolant Fan Replacement (LH2 Standard Cooling) .
