Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

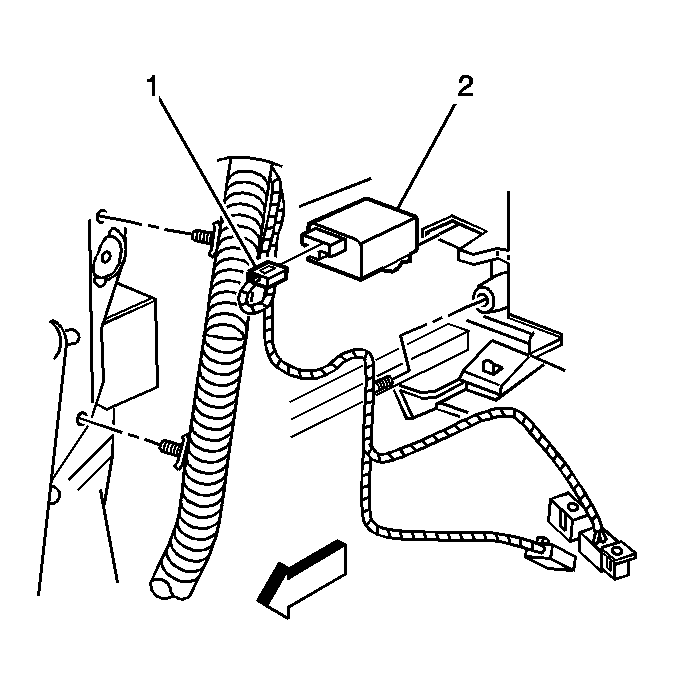

Fig 1: View Of Flasher Module

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the flasher module (2).
Slide the flasher module retaining clip onto the I/P carrier.
Install the driver side I/P closeout/Insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side or Instrument Panel Insulator Panel Replacement - Left Side .
