Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

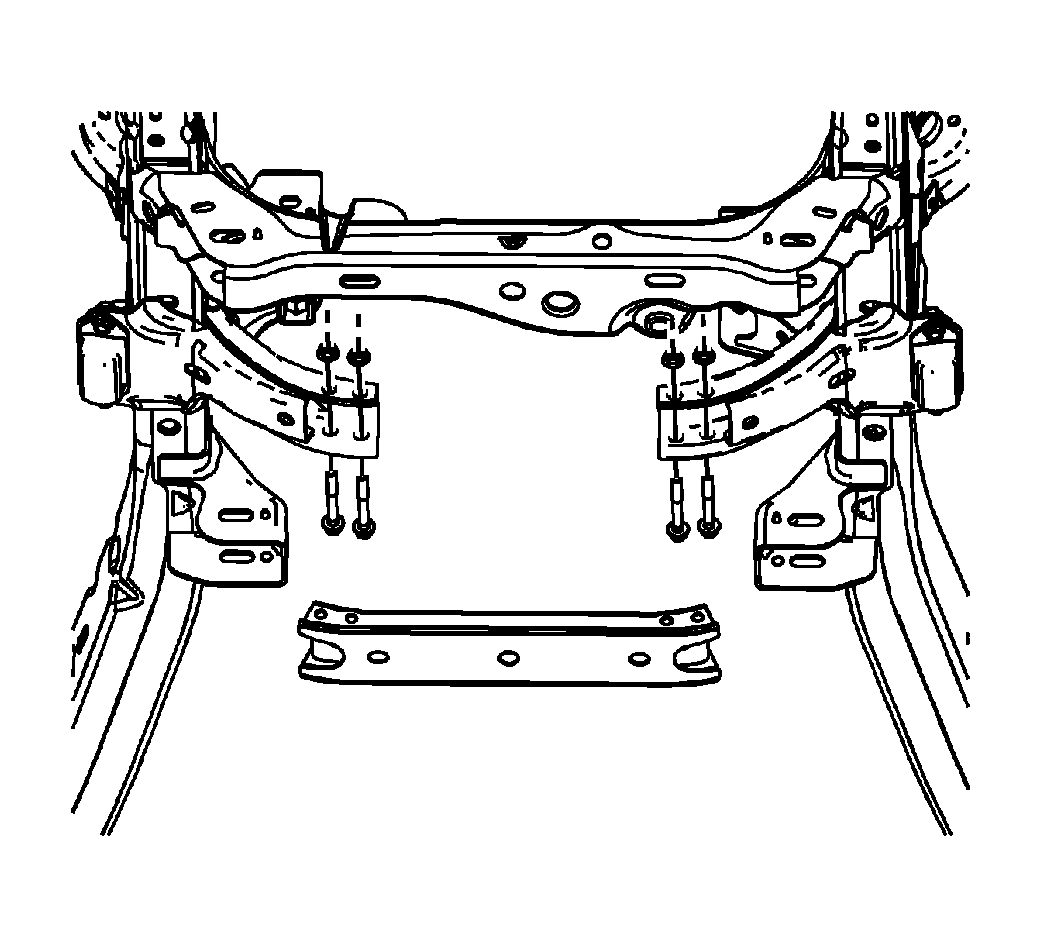

Fig 1: Crossmember

Courtesy of GENERAL MOTORS CORP.

Install the crossmember to the vehicle.
Perform the following procedure before installing the bolts.
- Remove all traces of the original adhesive patch.
- Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
- Apply Threadlocker GM P/N 12345493 (Canadian P/N 10953488).

CAUTION: Refer to Fastener Caution .

Install the bolts and the nuts and tighten to 60 N.m (44 lb ft).
Lower the vehicle.
