Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper air temperature sensor wire harness.

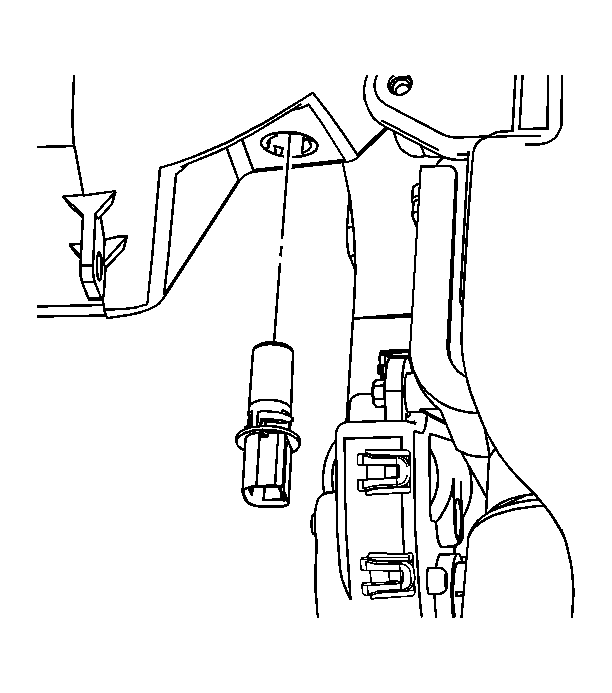

    2. Fig 1: View Of Upper Air Temperature Sensor
    GM1203600Courtesy of GENERAL MOTORS CORP.
  2. Install the upper air temperature sensor.
  3. Install the knee bolster. Refer to Knee Bolster Replacement .
  4. Install the left closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
