Assist Step Replacement (Side Step)

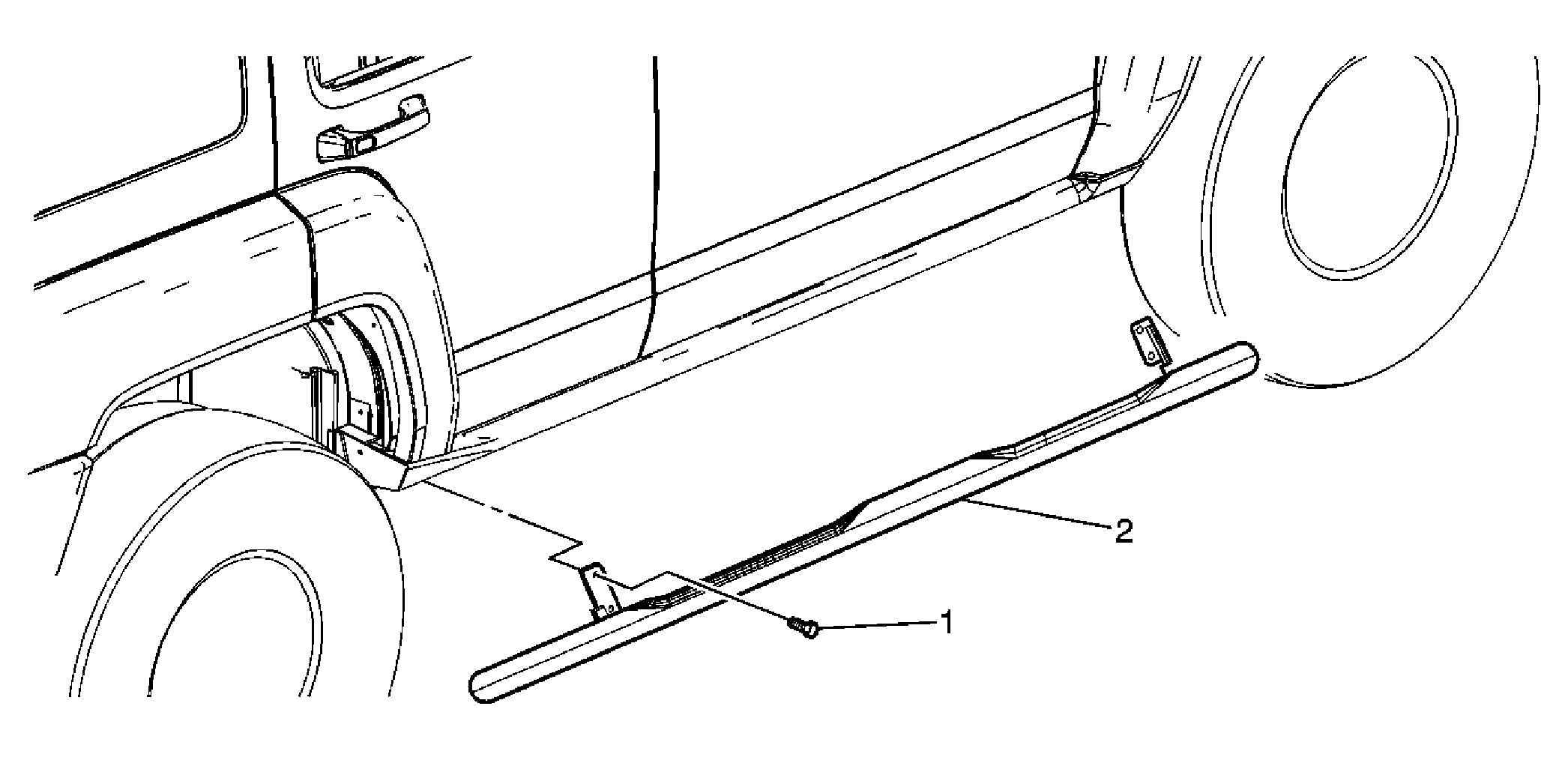

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle
. |
|
| 1 | Side Step Bolts (Qty: 4) Tighten: 50 N.m (37 lb in) |
| 2 | Side Step |
