Assist Step Replacement (Assist Step)

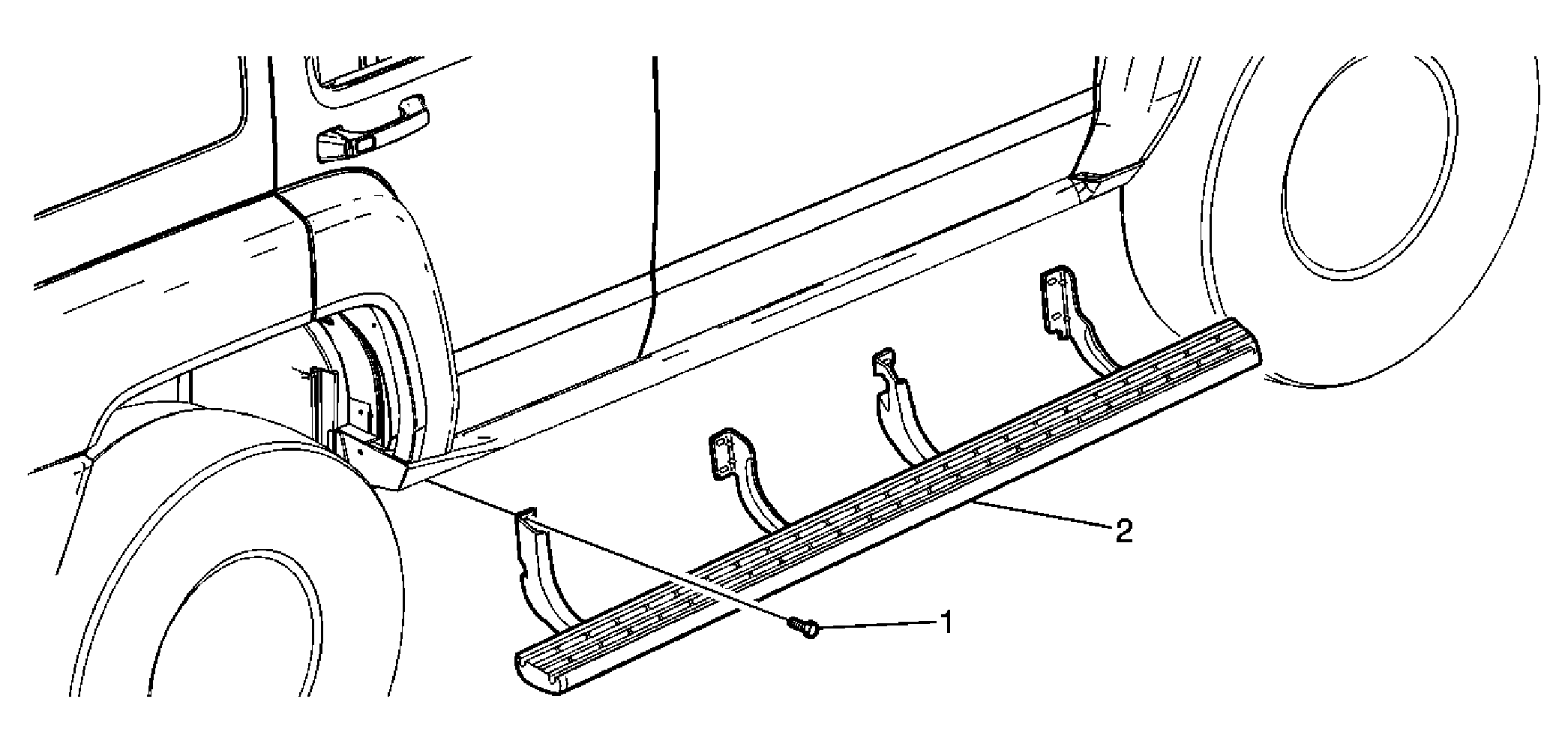

Fig 1: Assist Step Replacement (Assist Step)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Assist Step Bolts (Qty: 8) Tighten:  50 N.m (37 lb in)
2	Assist Step
