Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Brake Rotor
    GM1241355Courtesy of GENERAL MOTORS CORP.
  1. Position the wheel bearing/hub on the brake rotor.
    2. Fig 2: View Of Wheel Hub/Speed Sensor To Brake Rotor Bolts
    GM1241354Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the wheel bearing/hub mounting bolts.

    Tighten:  Tighten the mounting bolts in a criss-cross pattern to 27 N.m (20 lb ft).

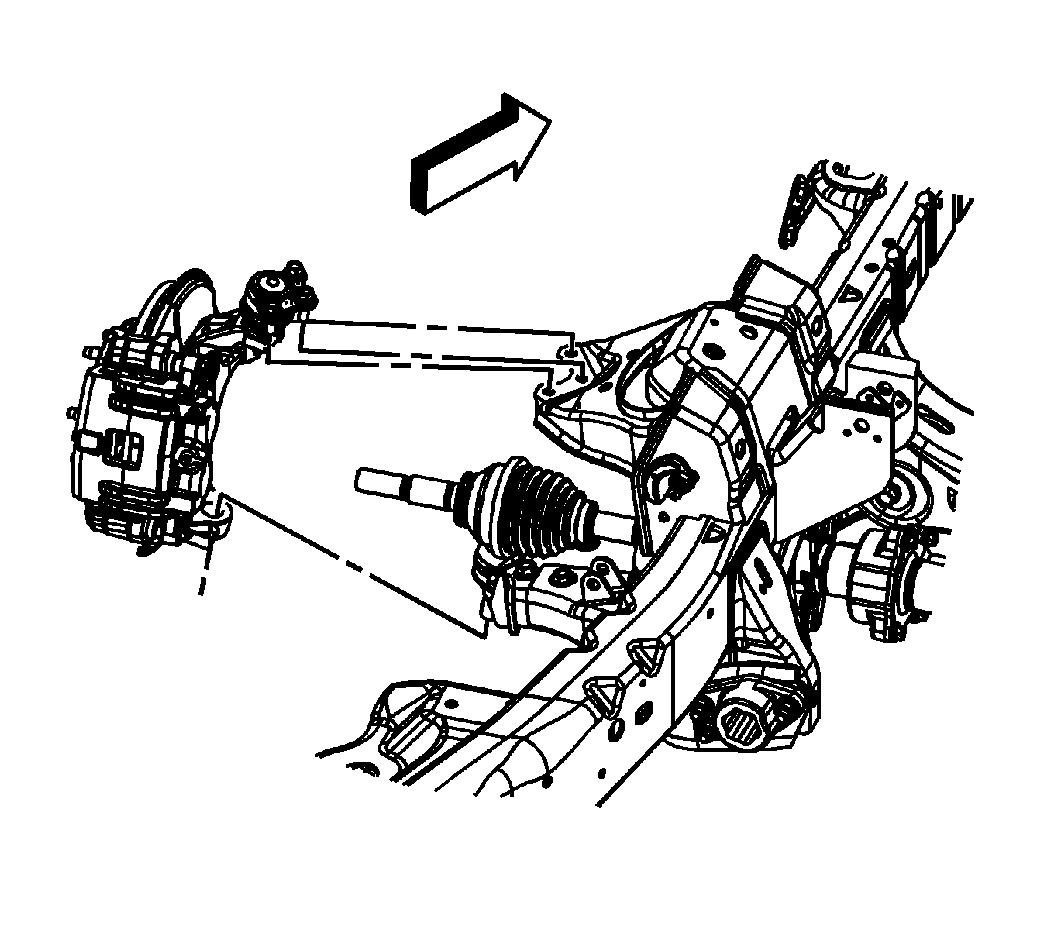

    3. Fig 3: View Of Steering Knuckle
    GM1135803Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The following service procedure is for 4WD vehicles only.
  3. Install the steering knuckle assembly. Refer to Steering Knuckle Replacement (2WD) or Steering Knuckle Replacement (4WD) in Front Suspension.
    4. Fig 4: View Of Wheel Hub/Speed Sensor Assembly
    GM1253296Courtesy of GENERAL MOTORS CORP.
  4. Install the wheel bearing/hub, brake rotor assembly in the steering knuckle. Refer to Wheel Hub/Speed Sensor Replacement in Front Suspension.
  5. Lower the vehicle.
    6. Fig 5: View Of Half-Full Master Cylinder Reservoir
    GM787456Courtesy of GENERAL MOTORS CORP.
  6. Inspect the fluid level. Refer to Master Cylinder Reservoir Filling in Hydraulic Brakes.
  7. Burnish the brakes. Refer to Burnishing Pads and Rotors .
