Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new water pump gasket.

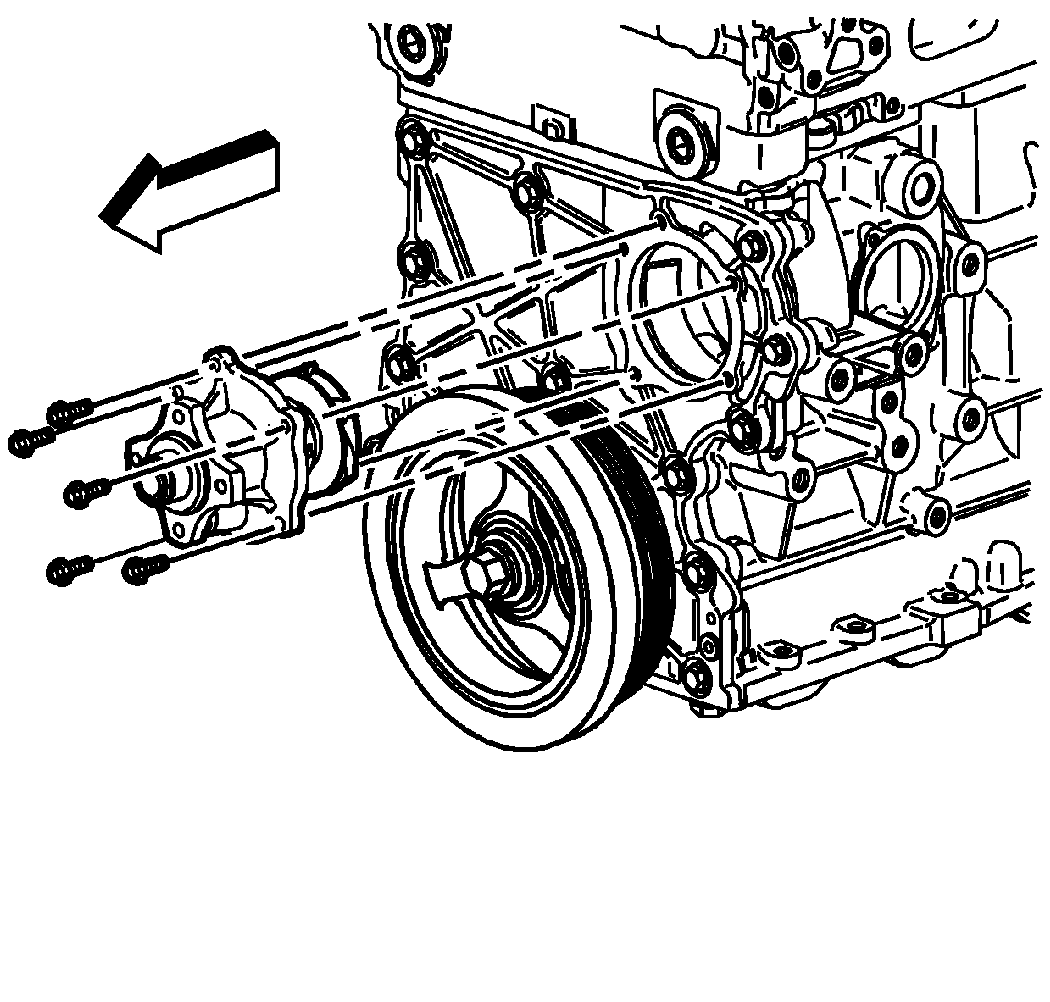

    2. Fig 1: View Of Water Pump & Bolts
    GM856224Courtesy of GENERAL MOTORS CORP.
  2. Position the water pump to the engine.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the water pump bolts.

    Tighten:  Tighten the water pump bolts to 10 N.m (89 lb in).

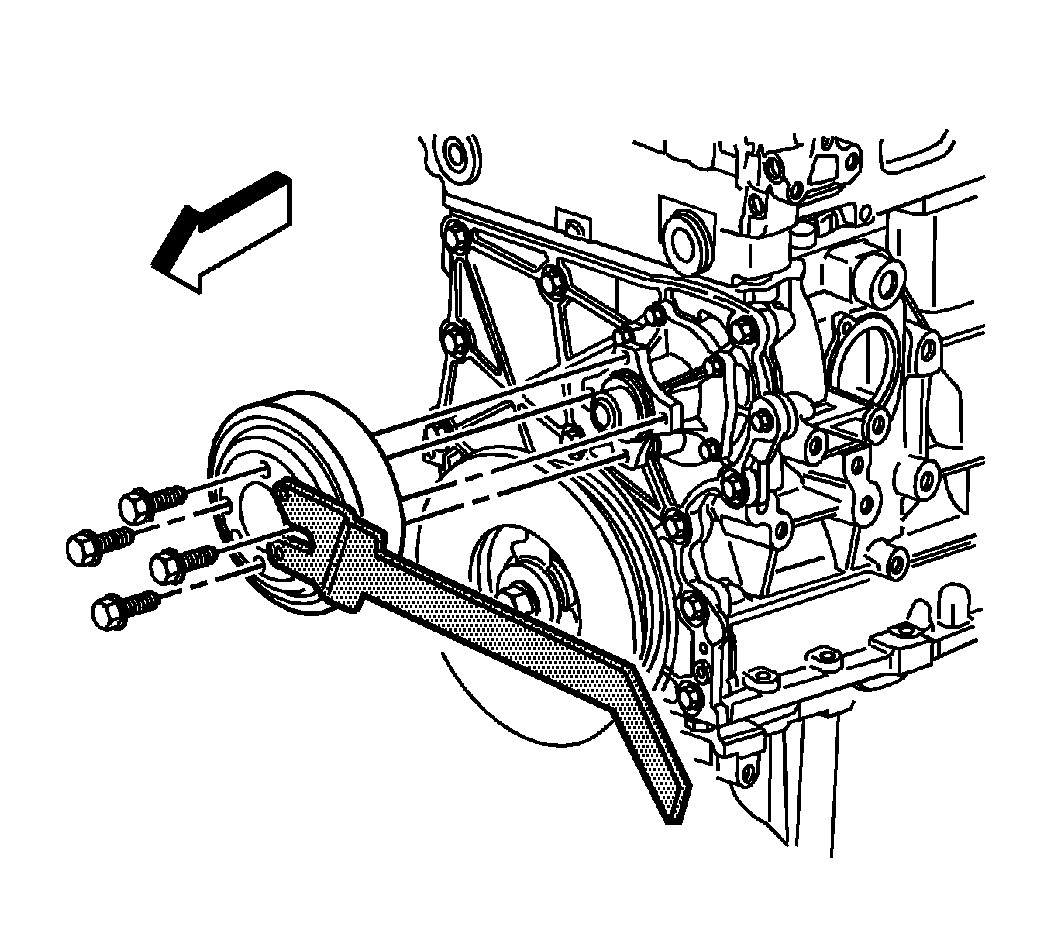

    4. Fig 2: View Of Water Pump Pulley & Bolts
    GM748318Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.
  6. Using the J 46406  , secure the water pump pulley while tightening the water pump pulley bolts. See Special Tools .

    Tighten:  Tighten the water pump pulley bolts to 25 N.m (18 lb ft).

  7. Remove the J 41240  .
  8. Install the drive belt. Refer to Drive Belt Replacement (without A/C) or Drive Belt Replacement (with A/C) in Engine Mechanical - 2.8L (LK5) or Drive Belt Replacement (without A/C) or Drive Belt Replacement (with A/C) in Engine Mechanical - 3.5L (L52).
  9. Install the fan. Refer to Fan Replacement .
  10. Fill the cooling system with the specified coolant and concentration. Refer to Draining and Filling Cooling System .
  11. Inspect for leaks.
