Removal Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fan shroud. Refer to Fan Shroud Replacement .
    2. Fig 1: Using Special Tools For Fan Clutch
    GM362333Courtesy of GENERAL MOTORS CORP.
  2. Install the J 46406  and the J 41240-5A to the fan clutch. See Special Tools .

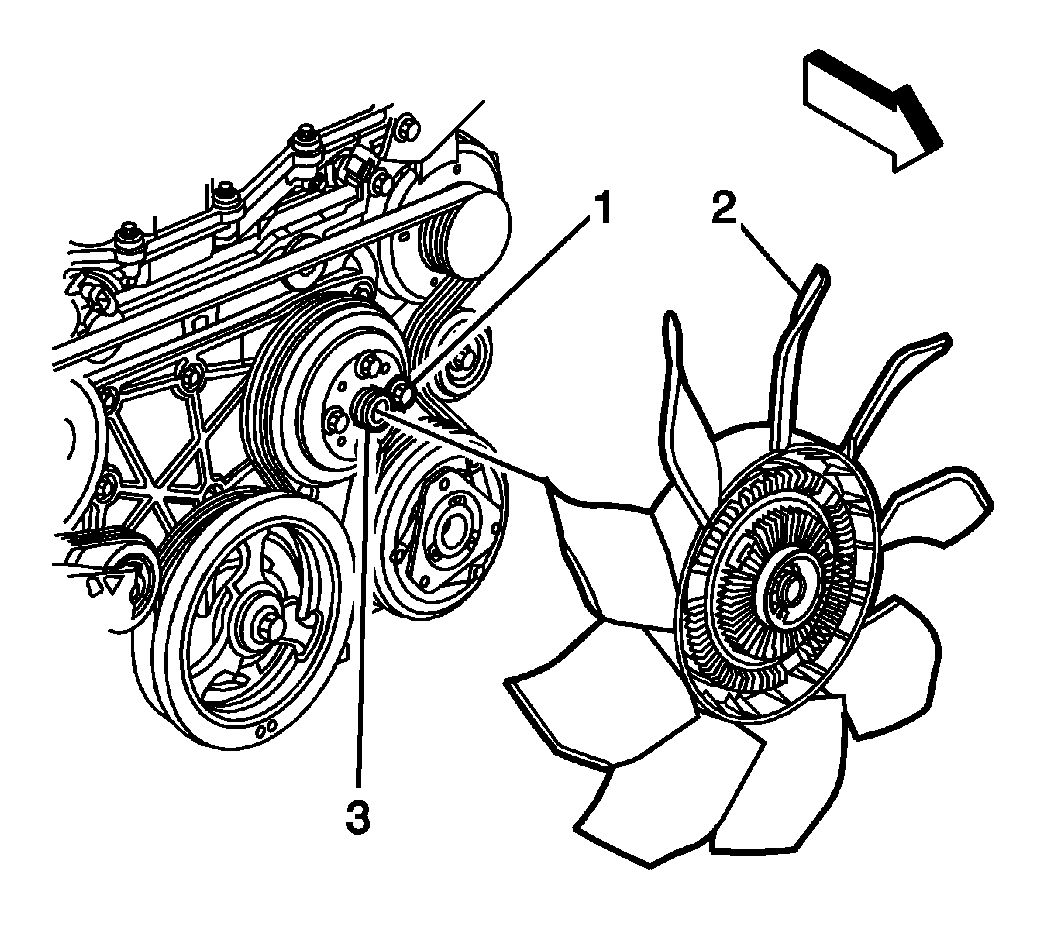

    3. Fig 2: View Of Fan
    GM1207759Courtesy of GENERAL MOTORS CORP.
  3. Remove the fan hub nut in a counterclockwise rotation.
