Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lumbar switch to the switch bezel, verifying that the retaining tabs are fully seated. Refer to Lumbar Switch Replacement .
  2. Install the seat switch to the switch bezel, verifying that the retaining tabs are fully seated. Refer to Seat Switch Replacement - Power .
  3. Hook the seat cushion cover J-strip to the top of the bezel.
  4. Position the bezel on the seat and press down to engage the retaining clips.

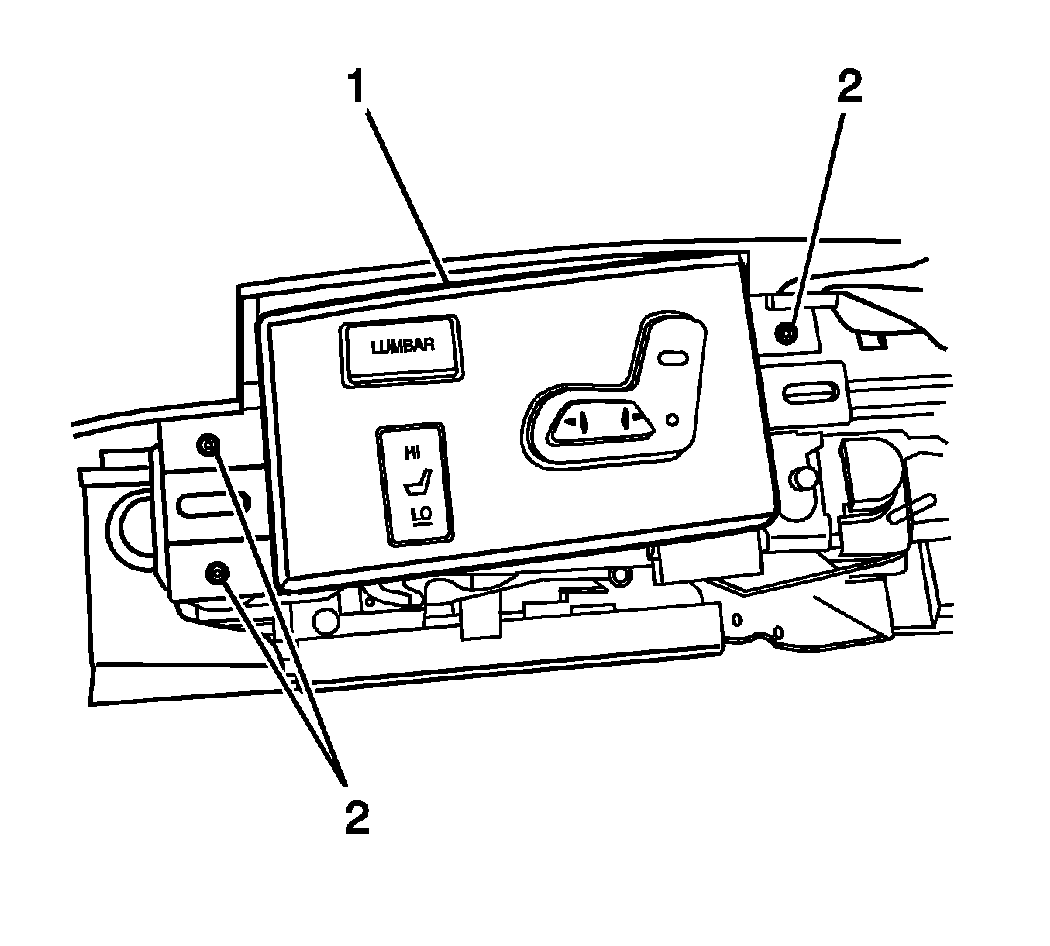

    5. Fig 1: View Of Seat Switch Bezel
    GM1333643Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the switch bezel (1) to the seat with the 3 screws (2).

    Tighten:  Tighten the seat switch bezel screws to 1.5 N.m (13 lb in).

  6. Install the seat cushion outer trim panel to the seat assembly. Refer to Seat Cushion Outer Trim Panel Replacement .
  7. Install the seat in the vehicle. Refer to Seat Replacement - Split Bench  or Seat Replacement - Front Bucket .
