Engine Controls Schematics

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

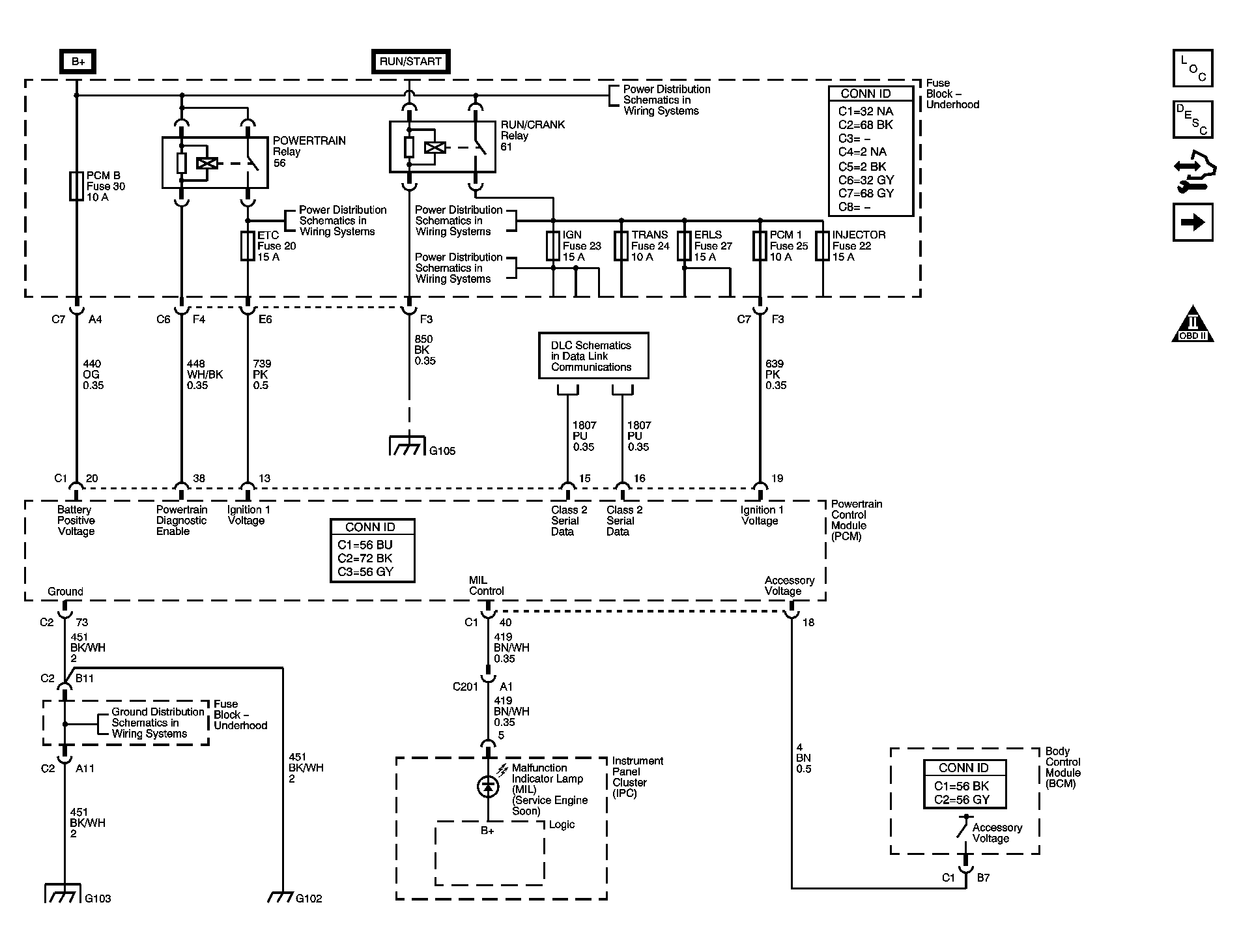

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

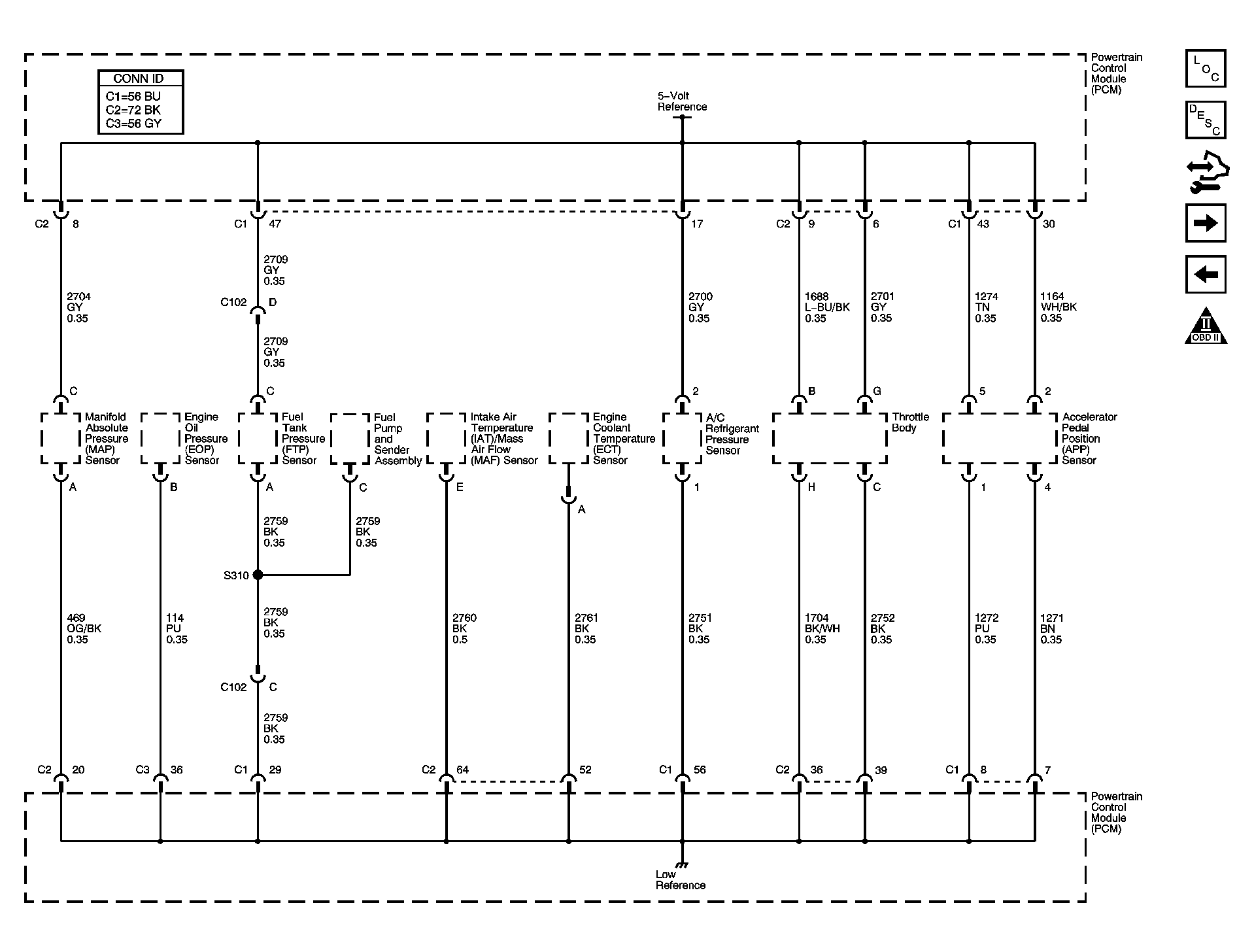

Fig 2: Engine Data Sensors - 5-Volt & Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

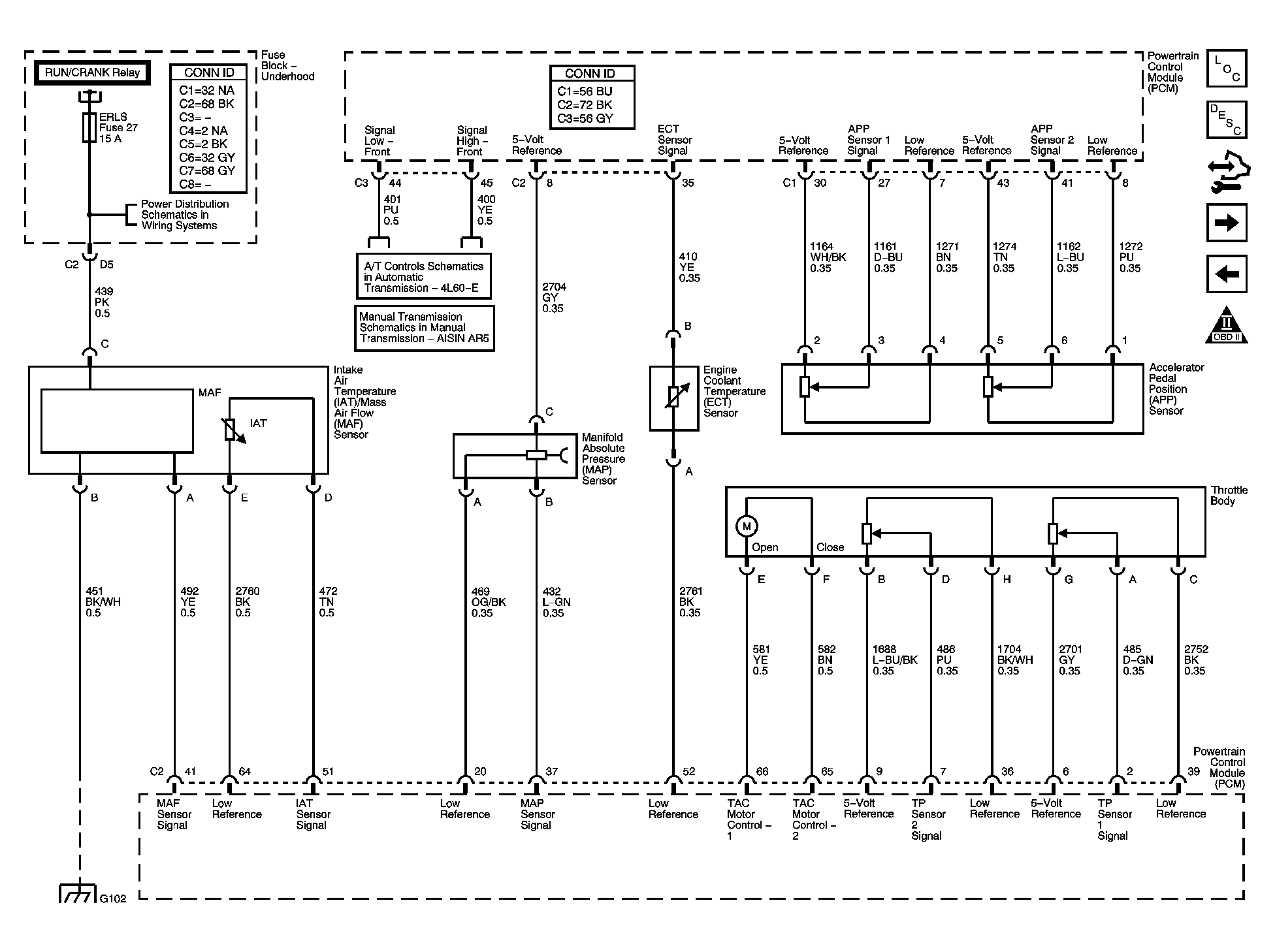

Fig 3: Engine Data Sensors - Electronic Throttle Controls, MAF, Pressure & Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

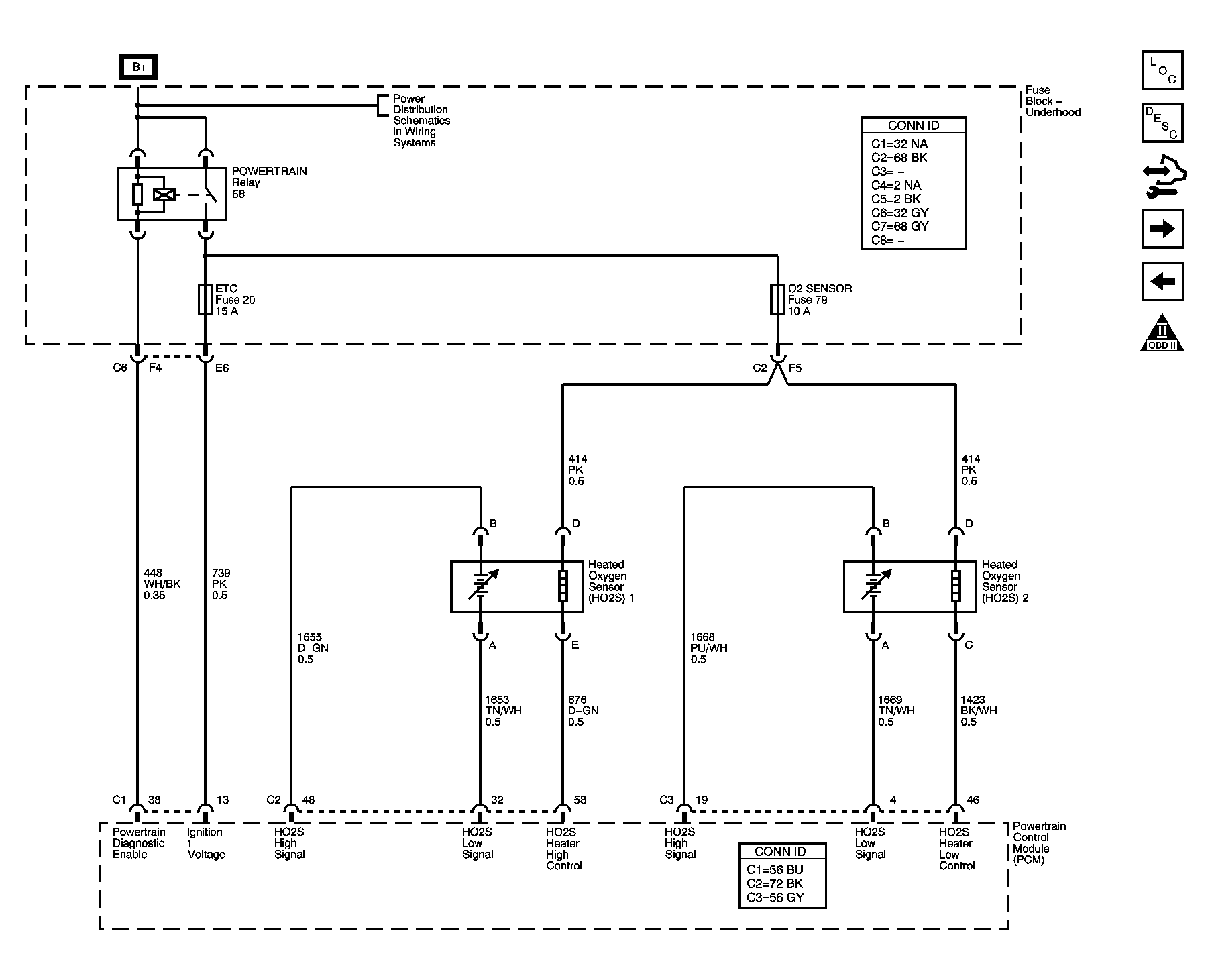

Fig 4: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

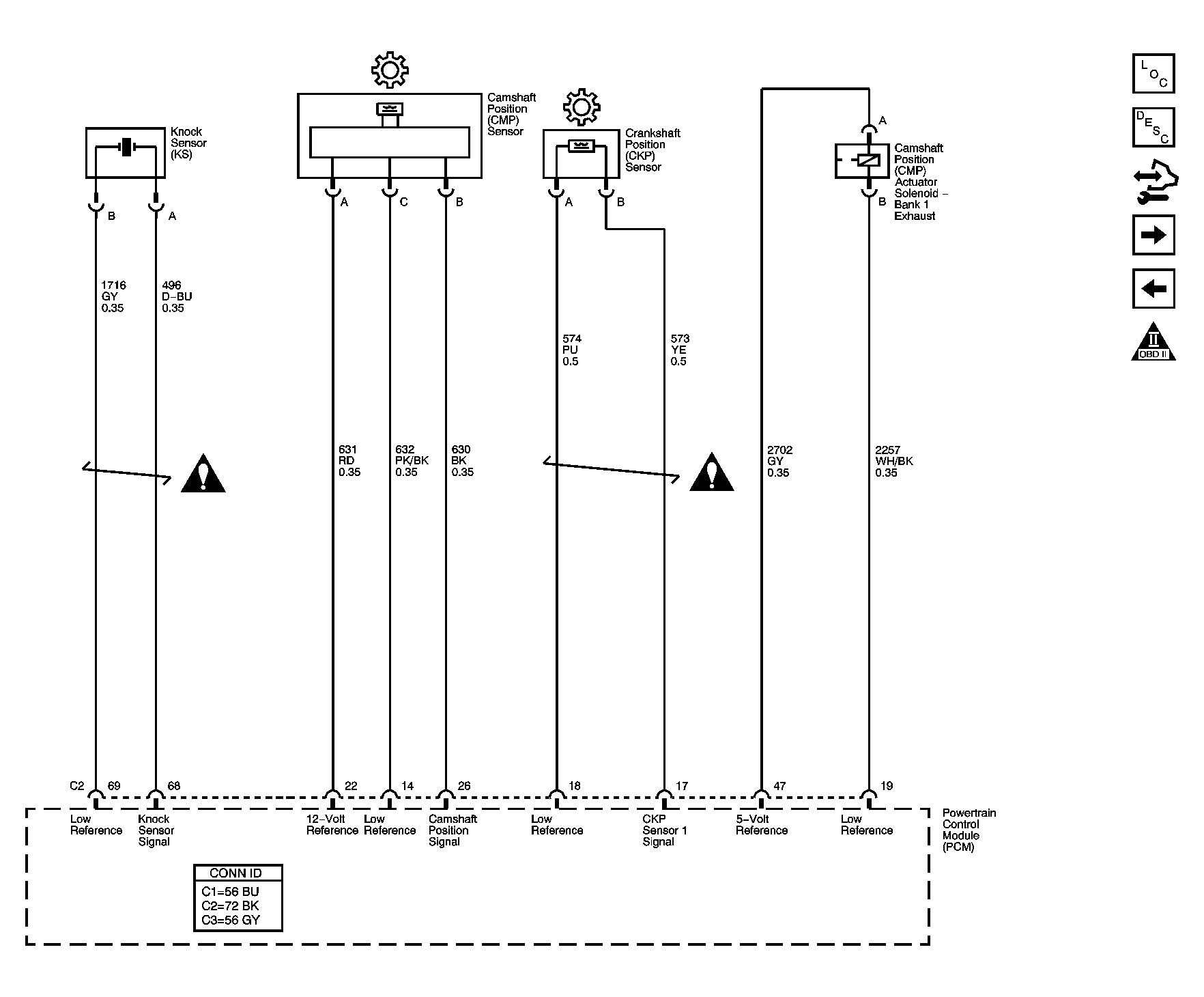

Fig 5: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

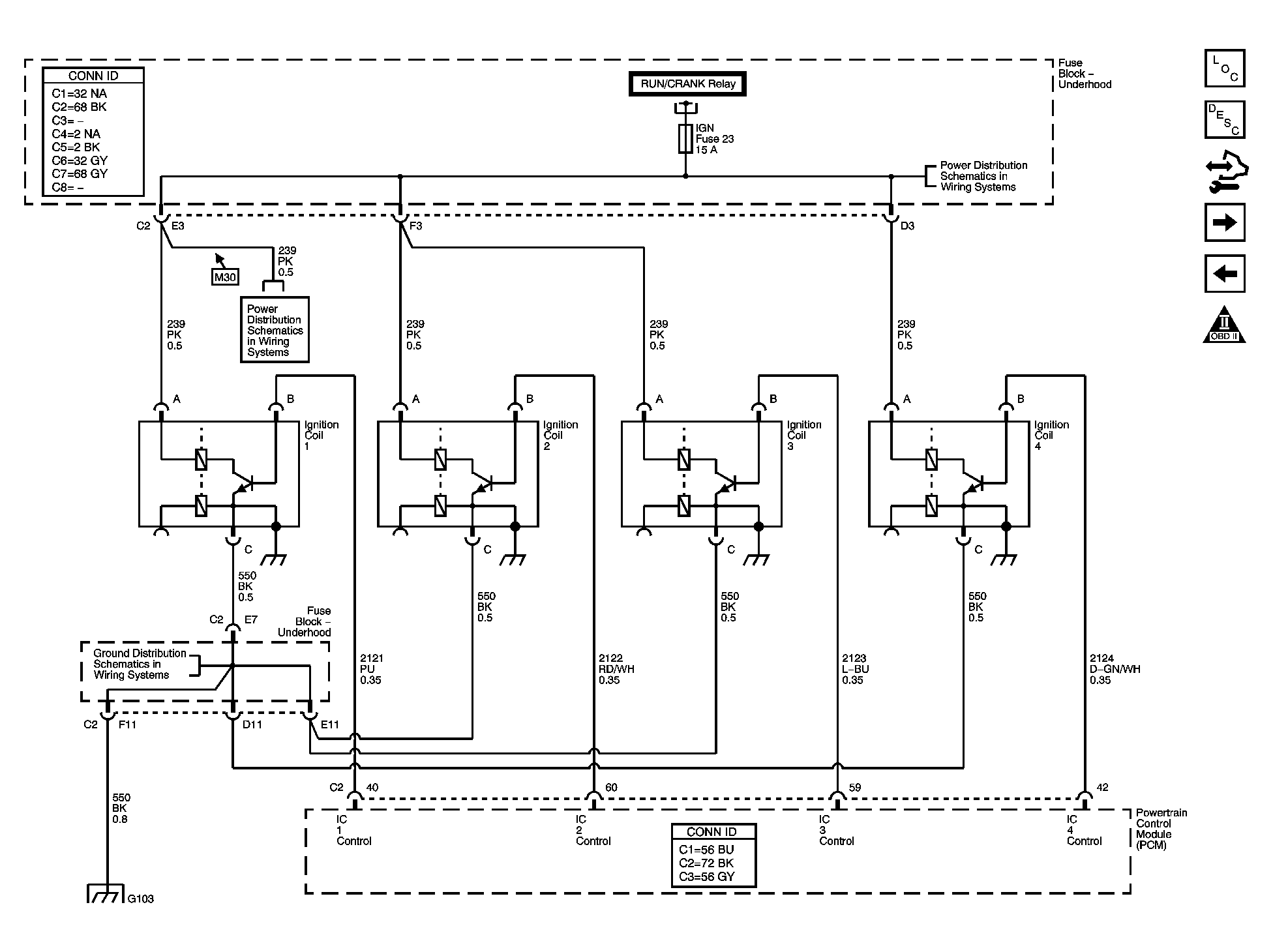

Fig 6: Ignition Controls - Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

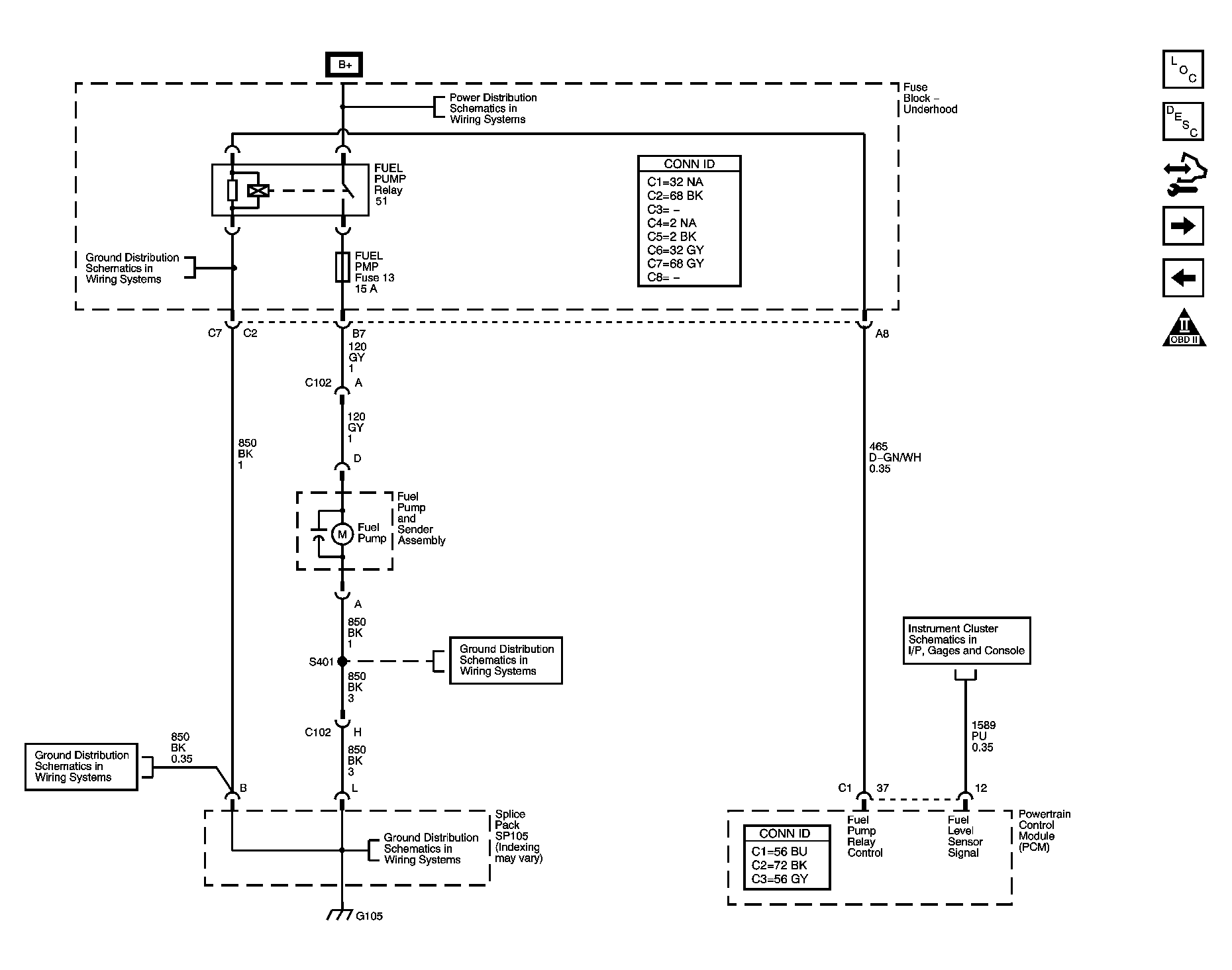

Fig 7: Fuel Controls - Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

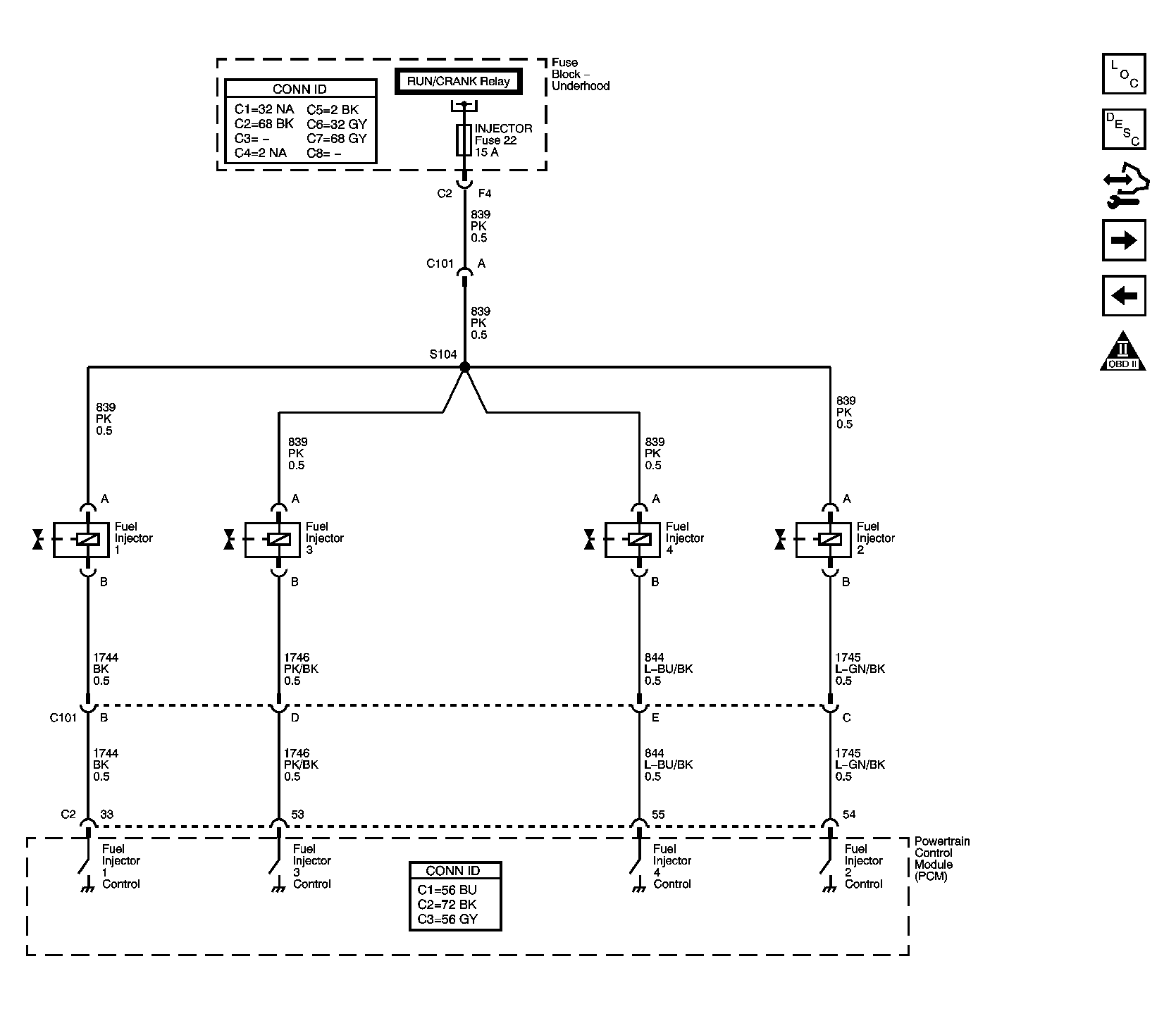

Fig 8: Fuel Controls - Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

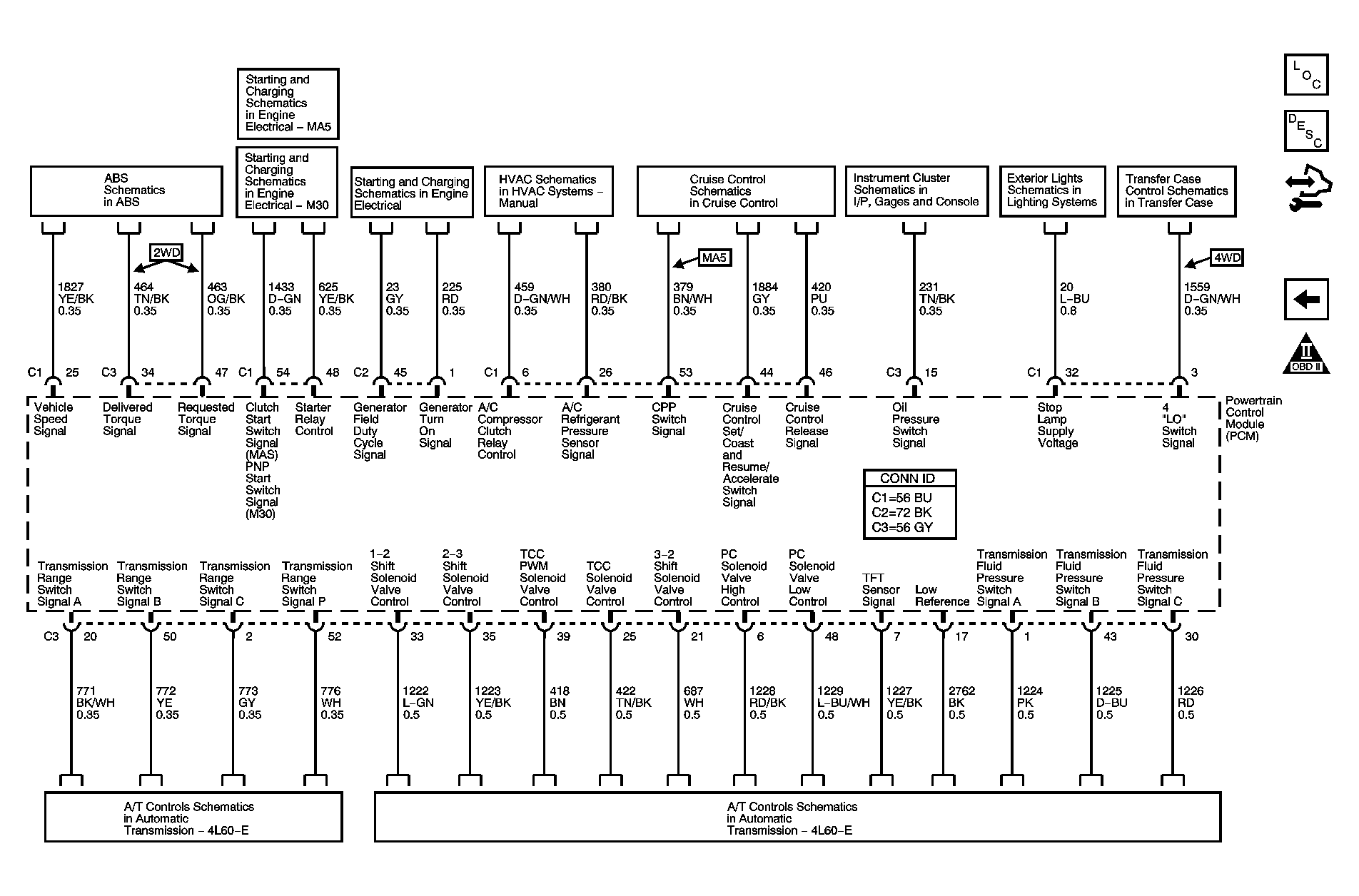

Fig 10: Controlled/Monitored Subsystem & Transmission References Schematic

Courtesy of GENERAL MOTORS CORP.
