Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear storage compartment on the floor.

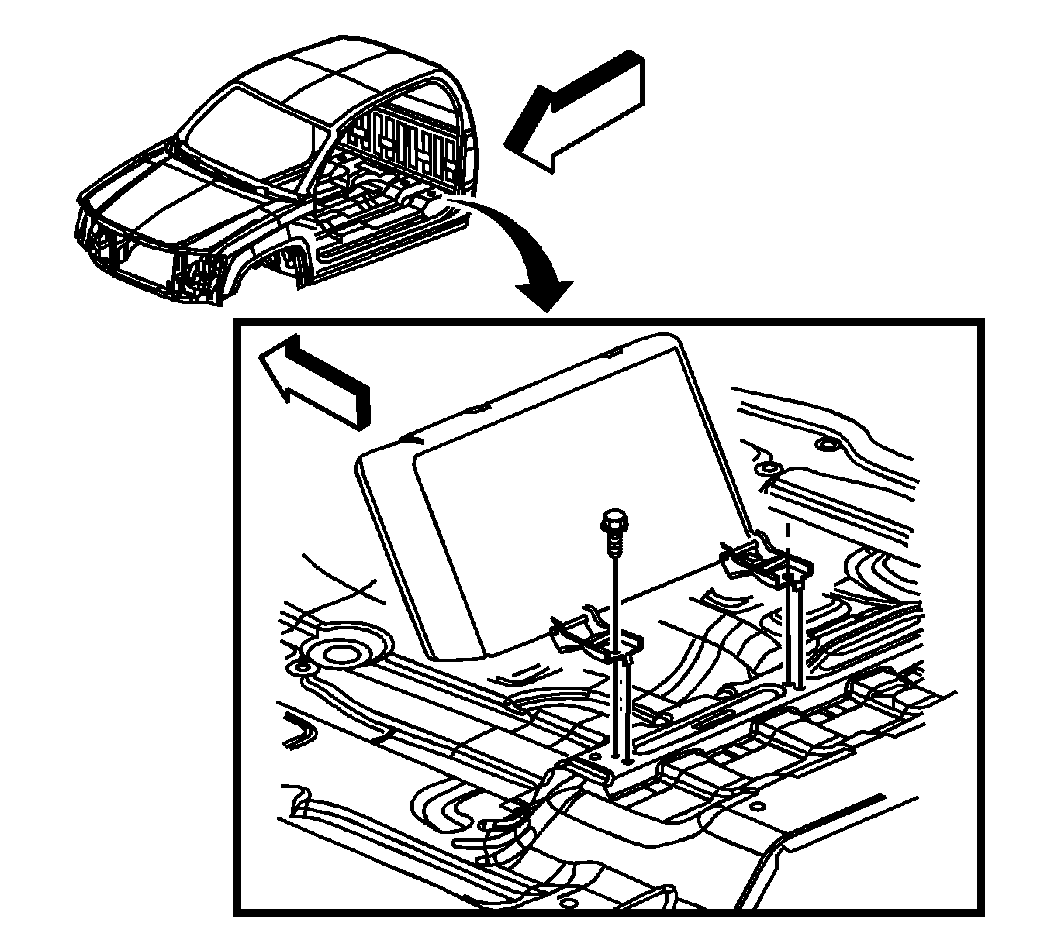

    2. Fig 1: View Of Rear Storage Compartment
    GM1276796Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 2 bolts (1) retaining the rear storage compartment to the floor.

    Tighten:  Tighten the rear storage compartment bolts to 9 N.m (79 lb in).
