Installation Procedure
WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

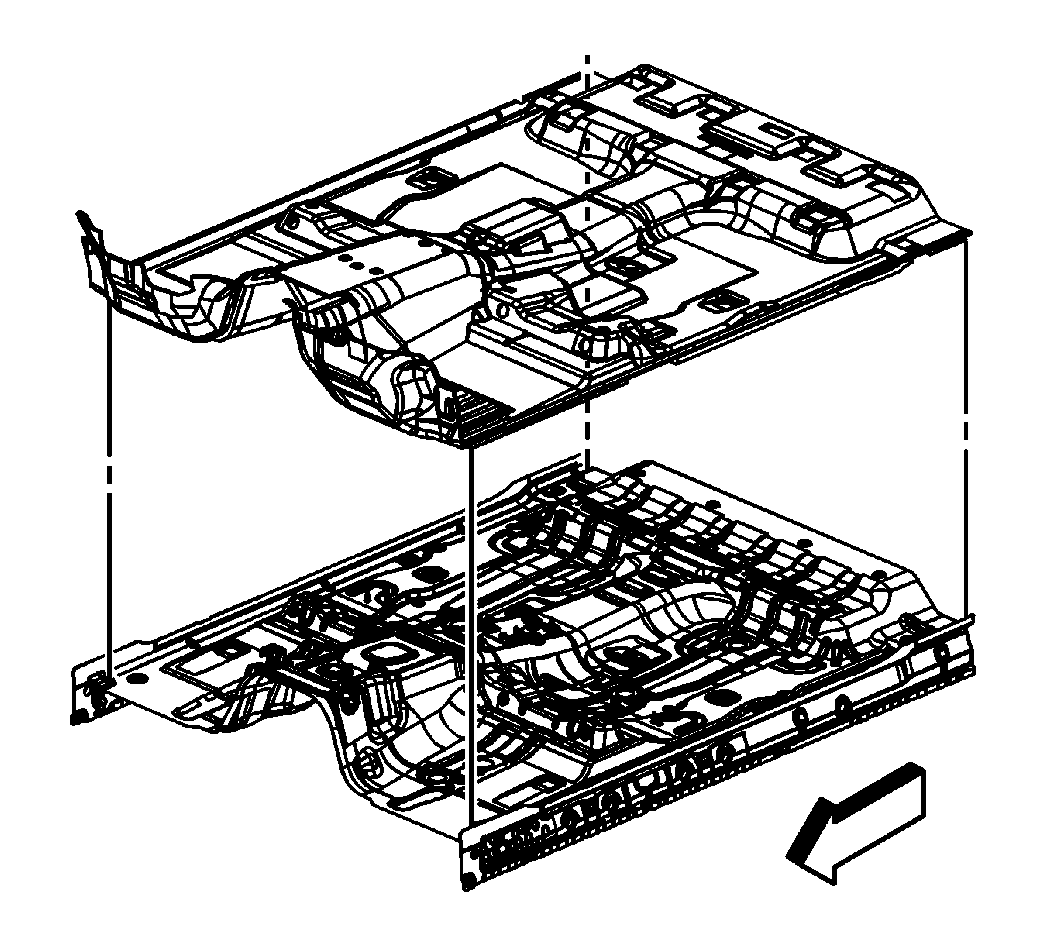

- Position the carpet in the vehicle.
- Install the lower body rear corner trim panels. Refer to Trim Panel Replacement - Body Rear Corner - Lower (Crew Cab) or Trim Panel Replacement - Body Rear Corner - Lower (Regular Cab) or Trim Panel Replacement - Body Rear Corner - Lower (Extended Cab) .
- Install the body rear trim panel. Refer to Trim Panel Replacement - Body Rear (Regular Cab) or Trim Panel Replacement - Body Rear (Extended Cab) or Trim Panel Replacement - Body Rear (Crew Cab) .
- Install the lower center pillar trim panels, if equipped. Refer to Trim Panel Replacement - Lower Center Pillar .
- Install the rear door sill plates, if equipped. Refer to Door Sill Plate Replacement - Rear .
- Install the left hinge pillar trim panel. Refer to Trim Panel Replacement - Left Hinge Pillar .
- Install the right hinge pillar trim panel. Refer to Trim Panel Replacement - Right Hinge Pillar .
- Install the front door sill plates. Refer to Door Sill Plate Replacement - Front .
- Install the lower center I/P trim. Refer to Trim Replacement - Instrument Panel (I/P) Lower Center in Instrument Panel, Gages, and Console.
- Install the floor console, if equipped. Refer to Console Replacement (Small W/ Manual Transmission) or Console Replacement (Large W/ Manual or Automatic Trans.) .
- Install the jack and tool storage bracket. Refer to Jack and Tool Stowage Container Bracket Replacement .
- Install the storage bins, if equipped. Refer to Storage Compartment Replacement - Rear .
- Install the rear seats, if equipped. Refer to Seat Replacement - Rear Bench in Seats.
- Install the front seats. Refer to Seat Replacement - Split Bench or Seat Replacement - Front Bucket in Seats.
