Moveable Window Schematics

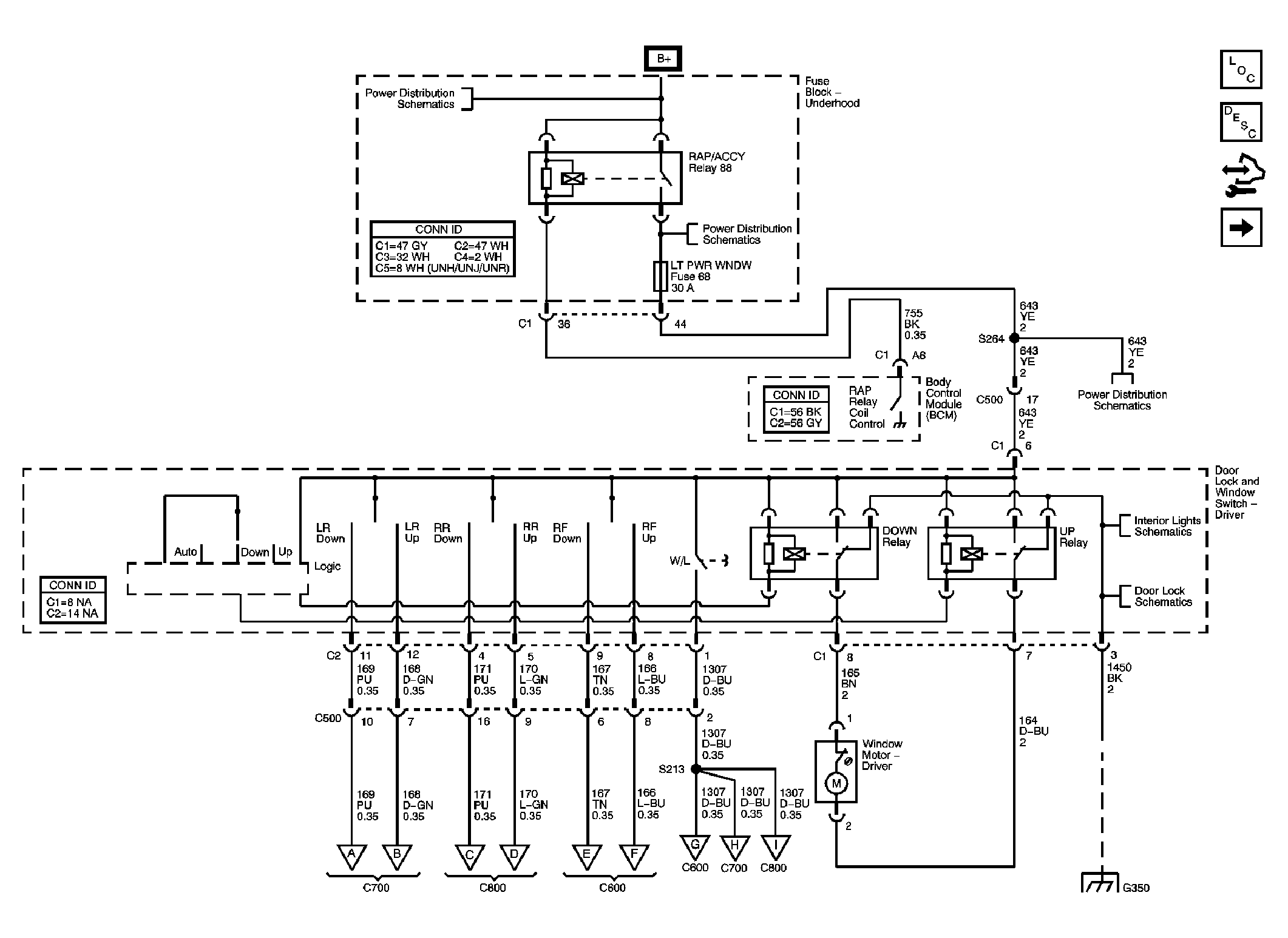

Fig 1: Driver Door Schematic
GM1778401Courtesy of GENERAL MOTORS CORP.

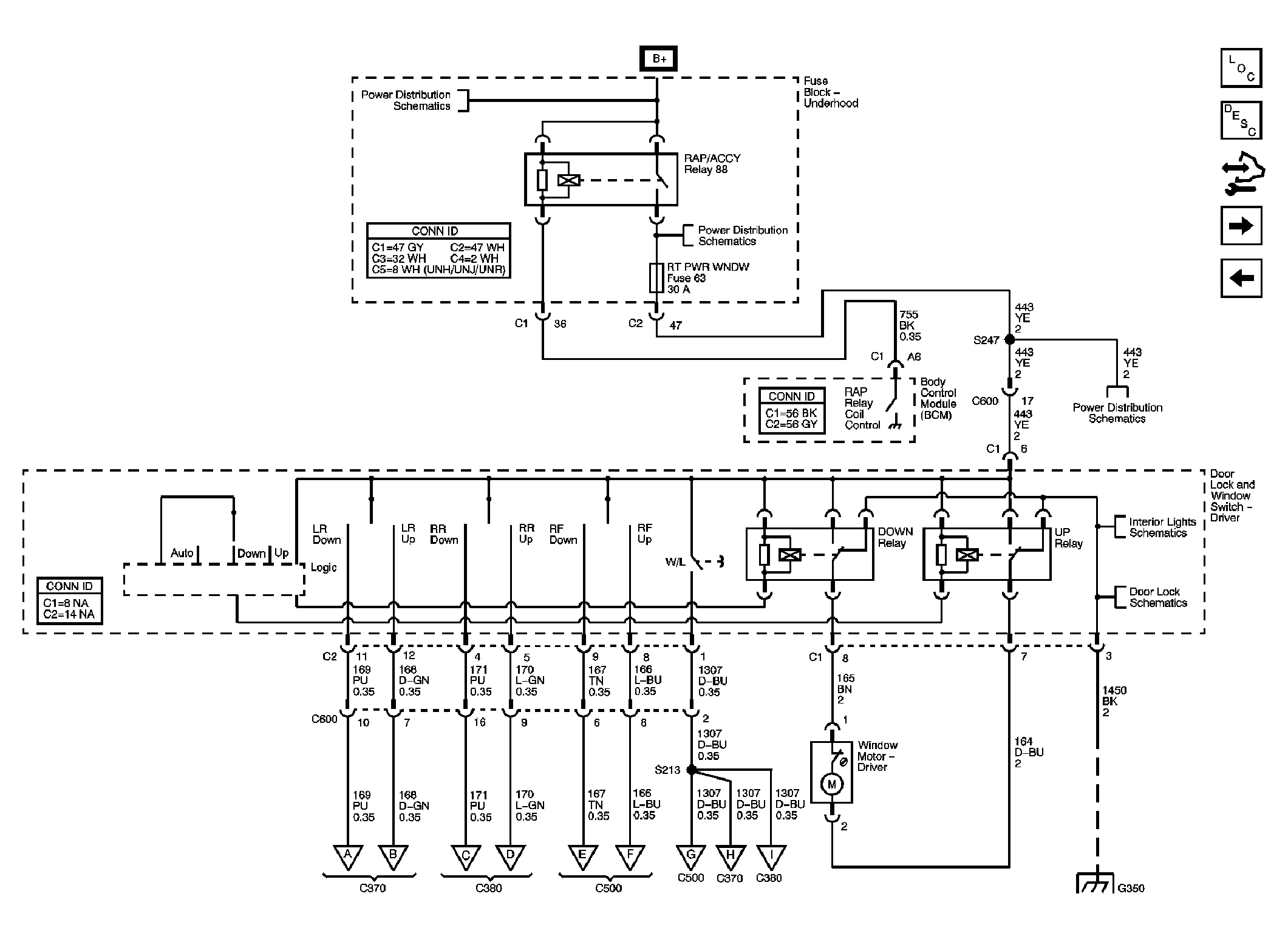

Fig 2: Driver Door Schematic - RHD
GM1891462Courtesy of GENERAL MOTORS CORP.

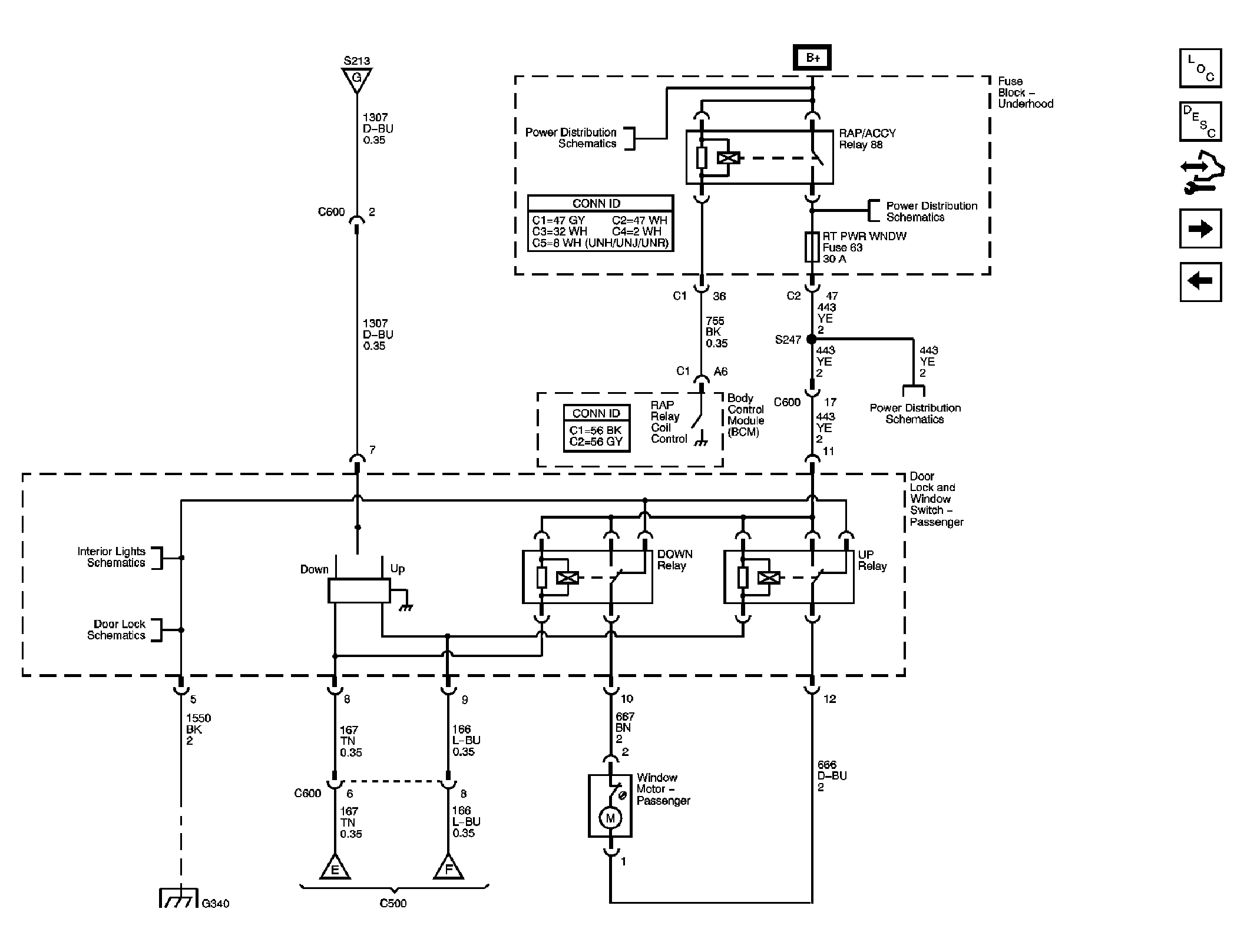

Fig 3: Front Passenger Door Schematic
GM1778409Courtesy of GENERAL MOTORS CORP.

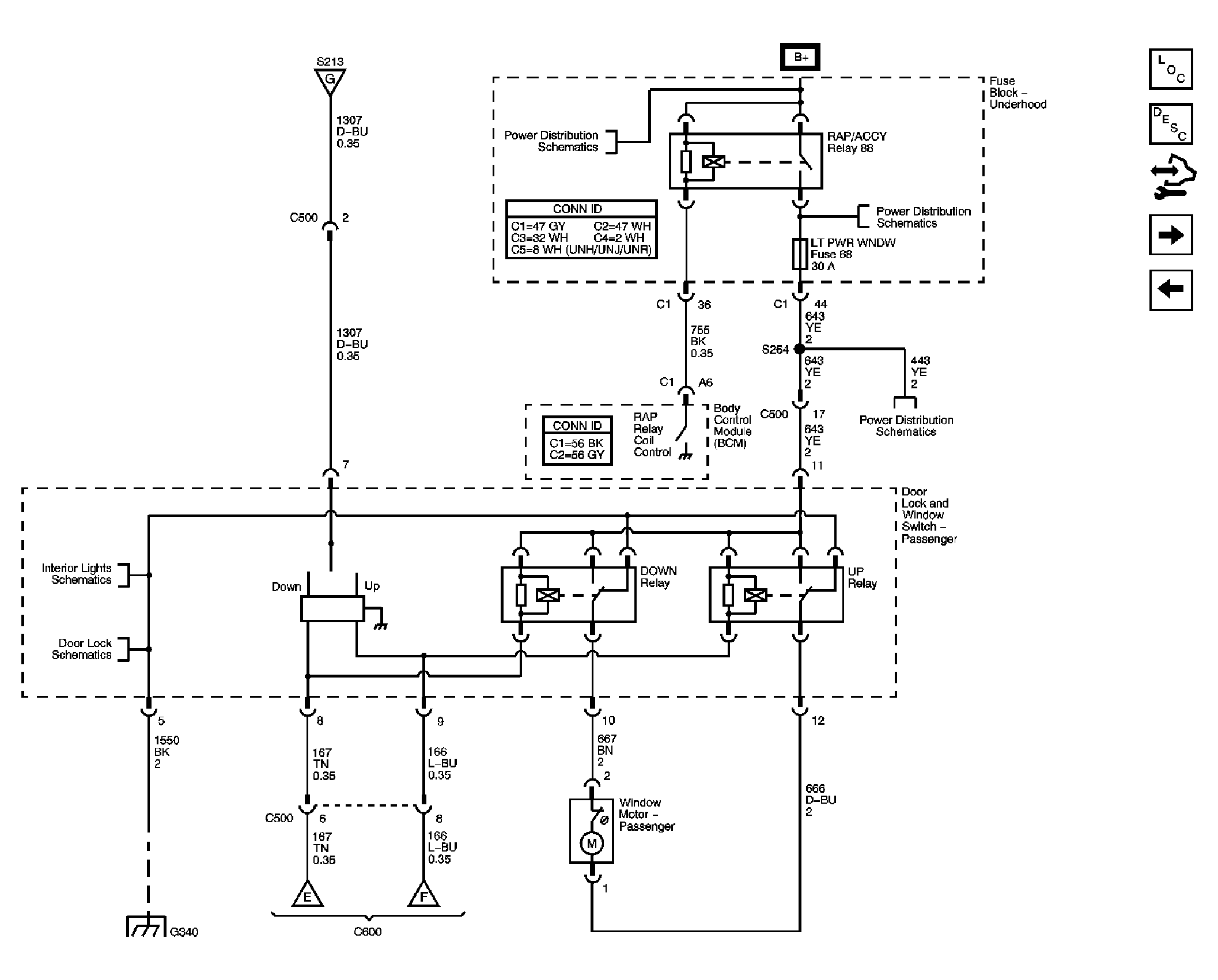

Fig 4: Front Passenger Door Schematic - RHD
GM1891463Courtesy of GENERAL MOTORS CORP.

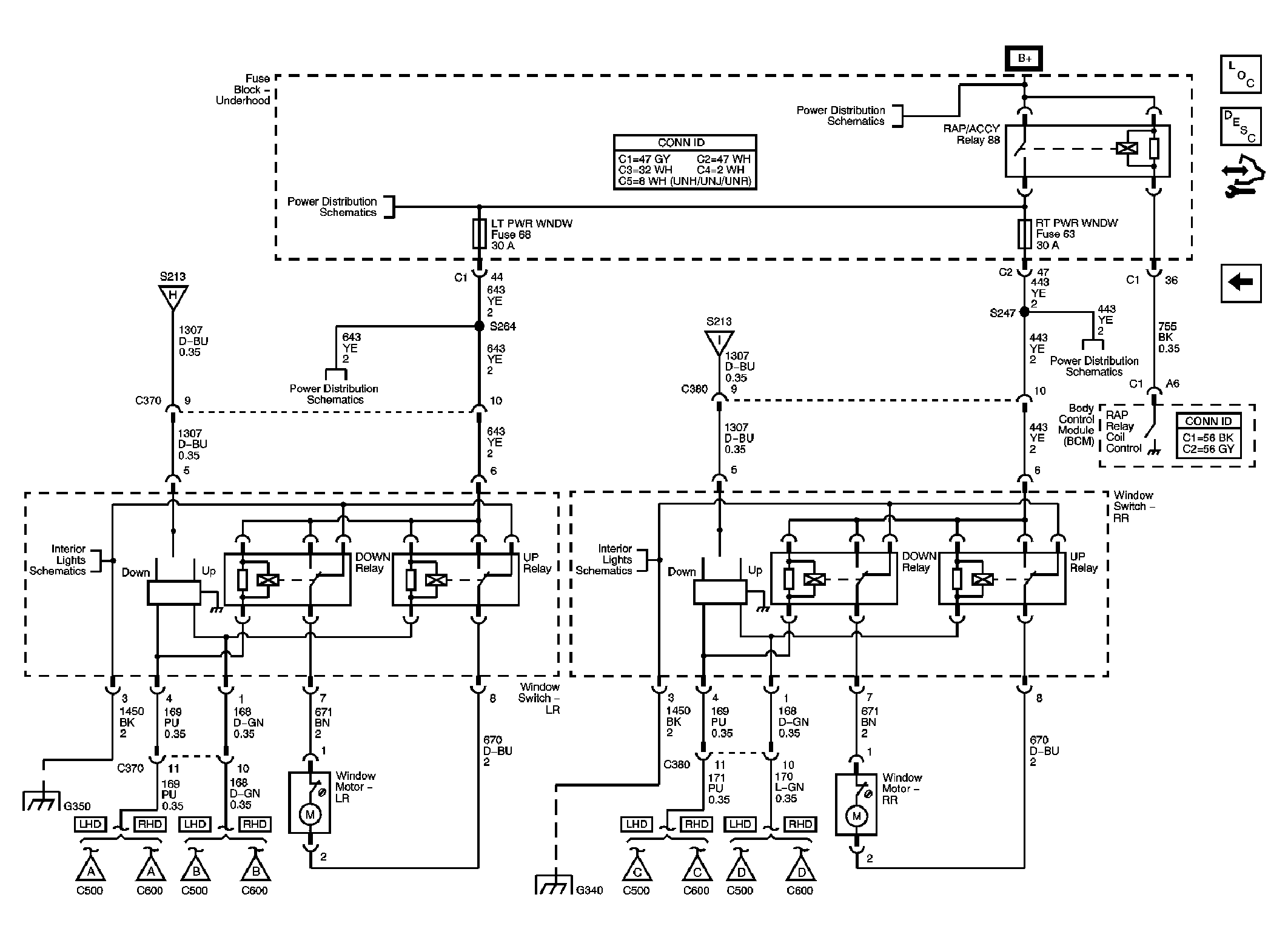

Fig 5: Rear Doors Schematic
GM1778419Courtesy of GENERAL MOTORS CORP.
