2007
>>
H3 Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer
>>
Component Locator
>>
Immobilizer Component Views
Immobilizer Component Views

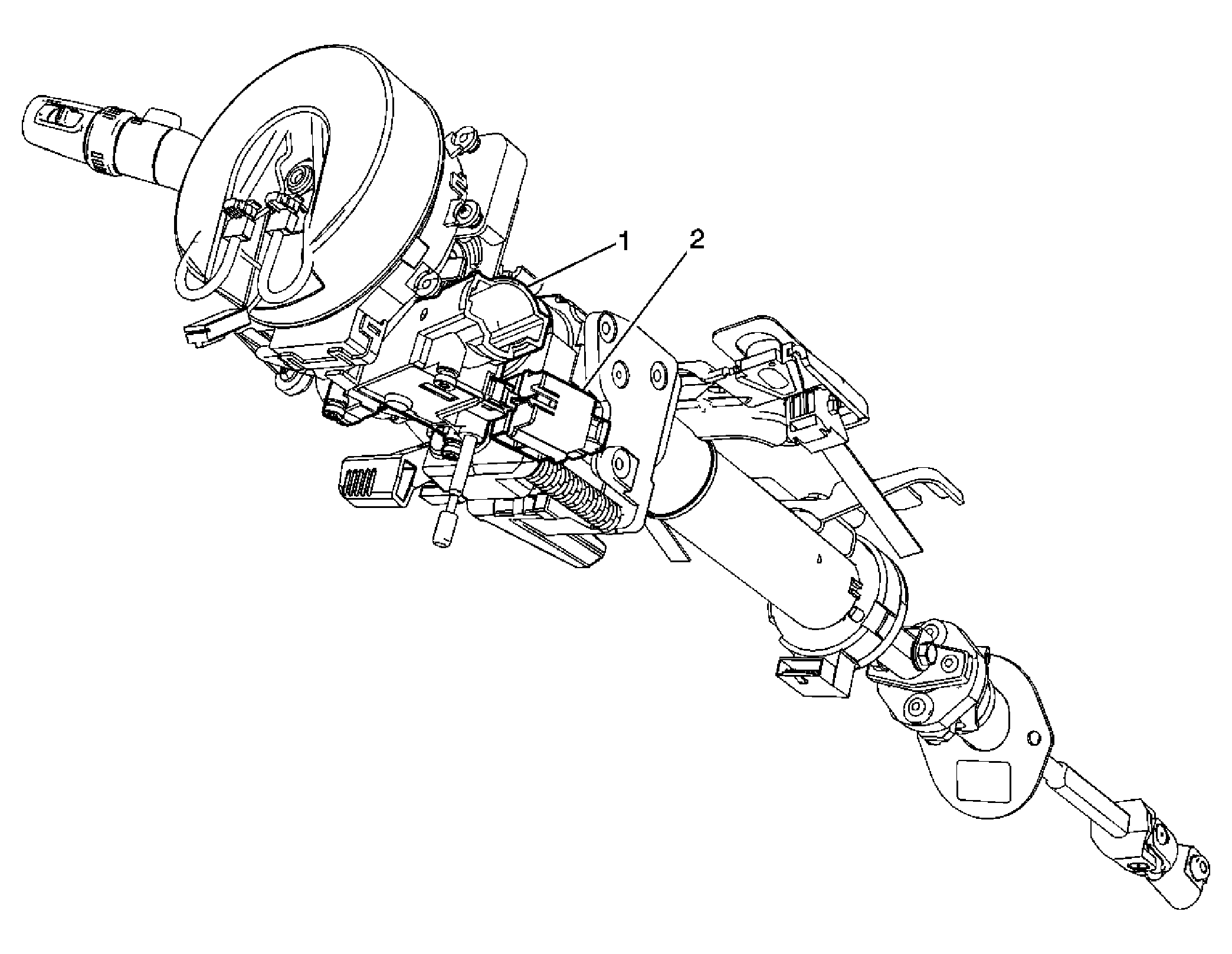

Fig 1: Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Ignition Switch
2
Ignition Lock Cylinder Control Actuator (M30)
