Wiper/Washer Component Views

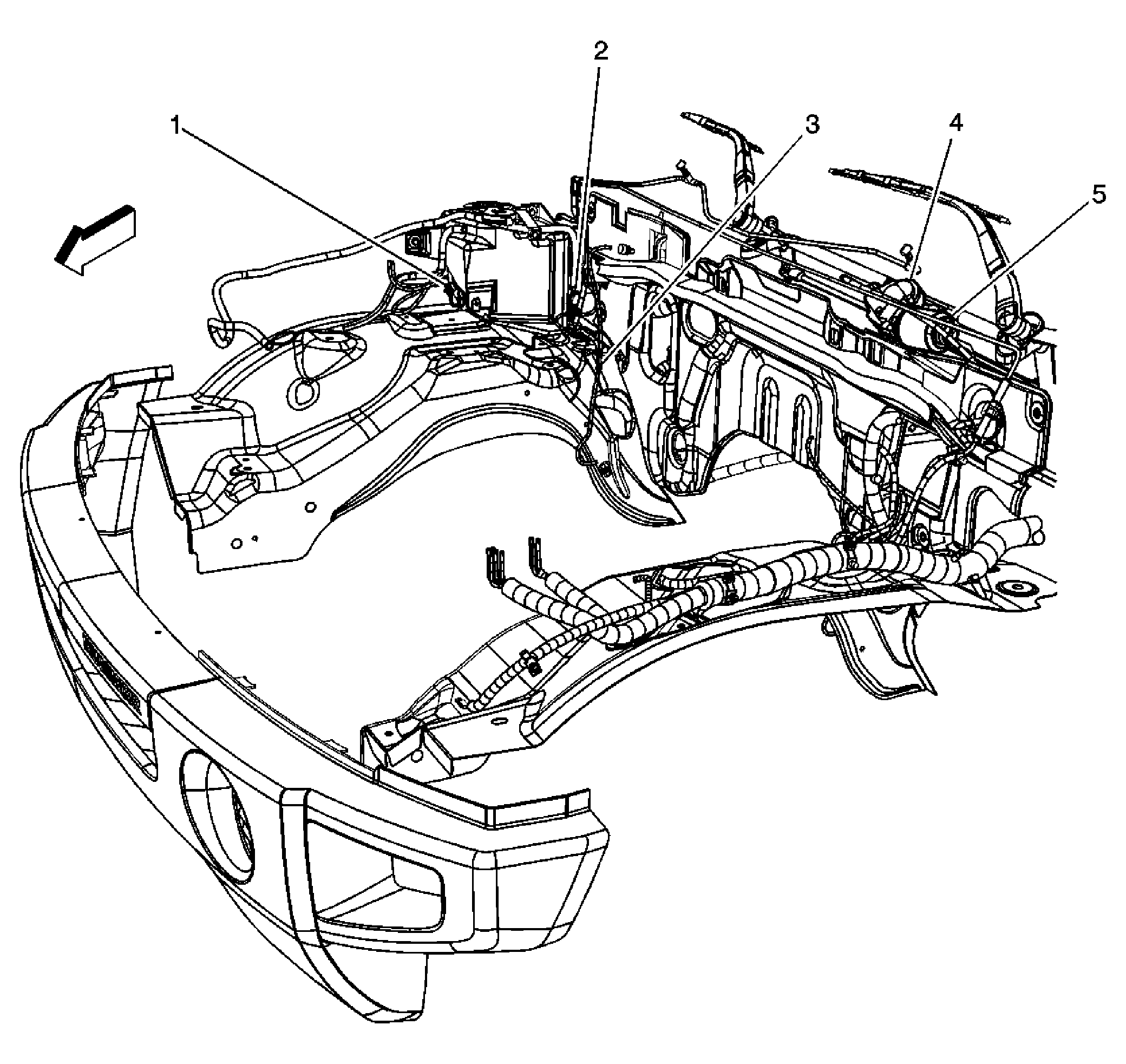

Fig 1: View Of Engine Compartment
GM1554813Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Washer Fluid Pump
2 Windshield Washer Fluid Pump
3 Body Harness
4 Windshield Wiper/Washer Module
5 Windshield Wiper Motor
Fig 2: Identifying I/P Harness Components
GM1550590Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Switch
2 Instrument Panel Cluster (IPC)
3 Hazard Switch
4 Accessory Switch
5 Radio
6 Ambient Light Sensor
7 Inflatable Restraint I/P Module
8 HVAC Control Module
9 Auxiliary Power Outlets - Front
10 Rear Window Wiper/Washer Switch
11 Inflatable Restraint Steering Wheel Module
12 Turn Signal/Multifunction Switch

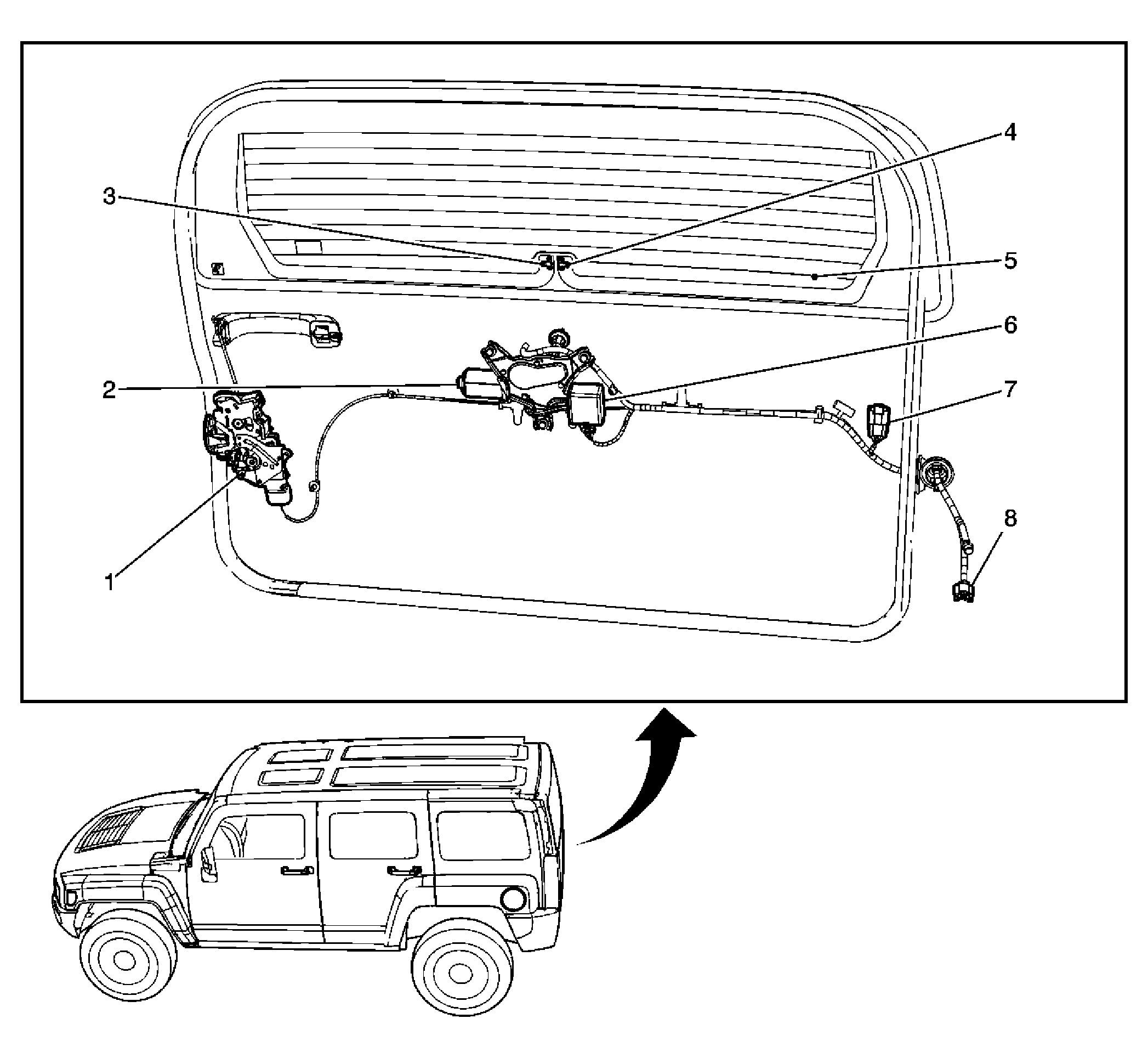

Fig 3: Identifying Endgate Components
GM1575949Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Actuator - Endgate
2 Rear Window Wiper Motor
3 Rear Window Defogger Connector
4 Rear Window Defogger Connector
5 Rear Window Defogger
6 Rear Window Wiper/Washer Module
7 C901 CHMSL Jumper Harness to Endgate Harness
8 C450 Body Harness to Endgate Harness
