Stop Lamp Switch Connector End View

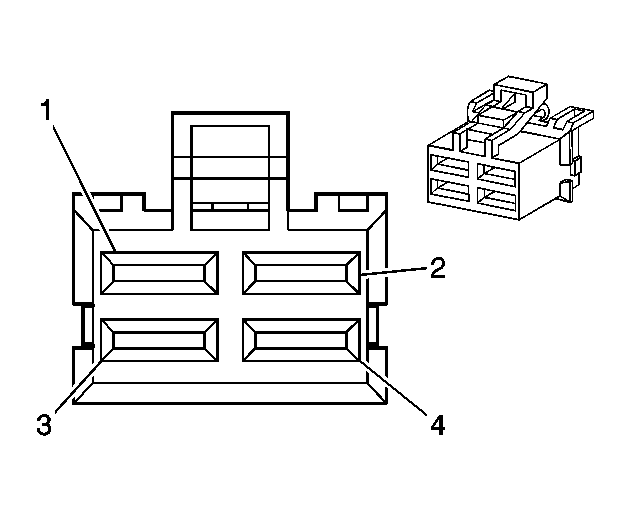

Fig 1: Stop Lamp Switch Connector End View
GM1333952Courtesy of GENERAL MOTORS CORP.
Stop Lamp Switch Connector Parts Information

Connector Part Information
  • OEM: 7123-6043-30
  • Service: 88987863
  • Description: 4-Way F 58 M-Type (GY)
Terminal Part Information
  • Terminal/Tray: 7116-2876/10
  • Core/Insulation Crimp: C/B
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
Stop Lamp Switch Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 OG 140 Battery Positive Voltage
2 L-BU 20 Stop Lamp Supply Voltage
3-4 - - Not Used
