Accelerator Pedal Position (APP) Sensor Connector End View

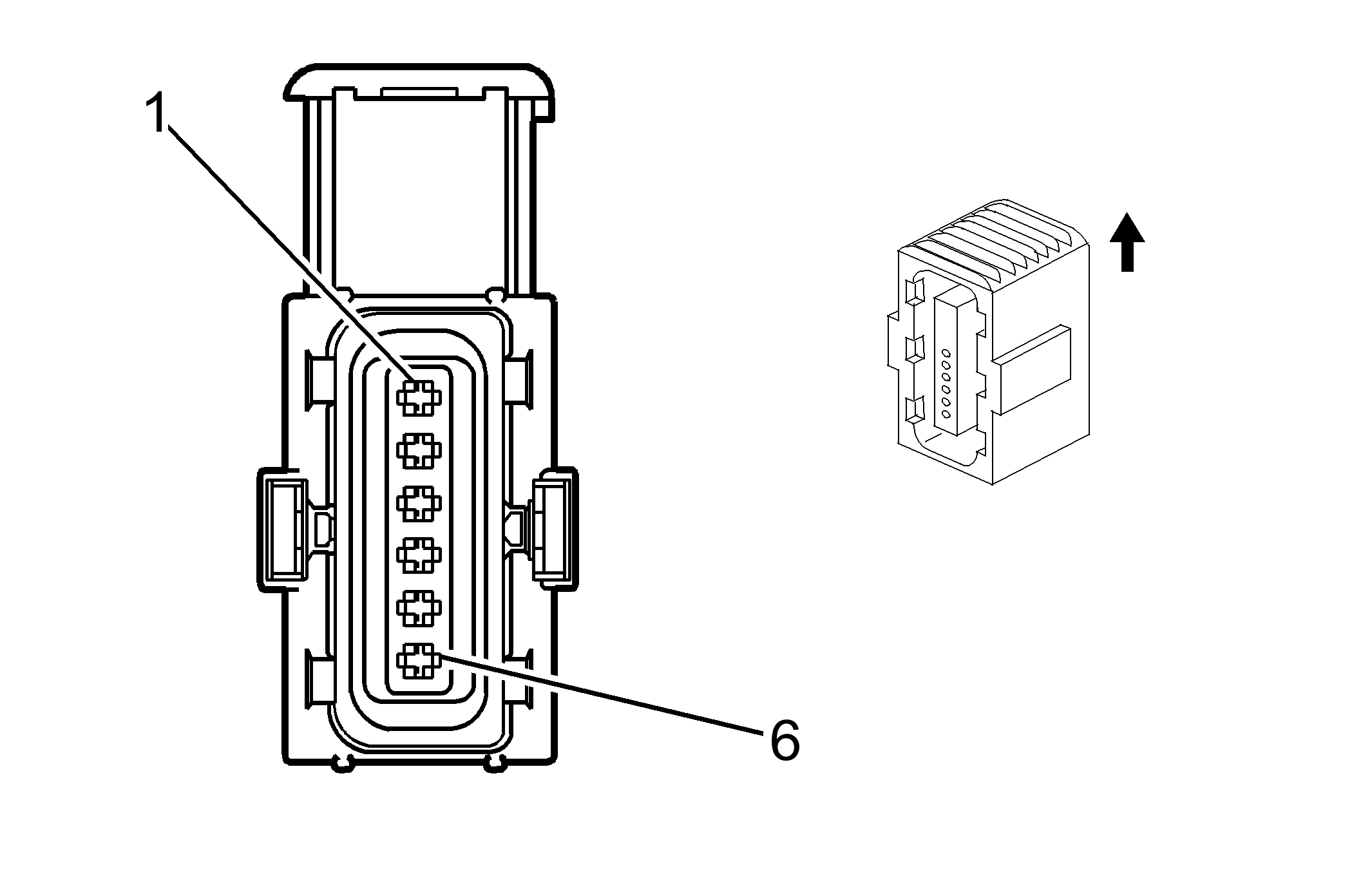

Fig 1: Accelerator Pedal Position (APP) Sensor Connector End View
GM1468854Courtesy of GENERAL MOTORS CORP.
Accelerator Pedal Position (APP) Sensor Connector Parts Information

Connector Part Information
  • OEM: 6-929264-1
  • Service: 89046653
  • Description: 6-Way F MT2 Housing, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Kit
  • Core/Insulation Crimp: See Terminal Kit
  • Release Tool/Test Probe: See Terminal Kit
Accelerator Pedal Position (APP) Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 PU 1272 Low Reference
2 WH/BK 1164 5V
3 D-BU 1161 APP Sensor 1 Signal
4 BN 1271 Low Reference
5 TN 1274 5V
6 L-BU 1162 APP Sensor 2 Signal
