Electronic Brake Control Module (EBCM) Connector End View C1

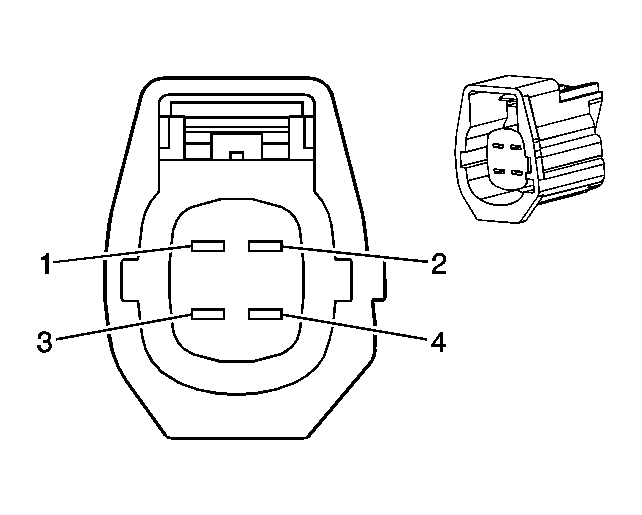

Fig 1: Electronic Brake Control Module (EBCM) C1 Connector End View
GM1566786Courtesy of GENERAL MOTORS CORP.
Electronic Brake Control Module (EBCM) C1 Connector Parts Information

Connector Part Information
  • OEM: 6189-1048
  • Service: See Catalog
  • Description: 4-Way F 025/187 Sealed (BK)
Terminal Part Information
  • Pins: 1
  • Terminal/Tray: 8100-3455/22
  • Core/Insulation Crimp: 7/7
  • Release Tool/Test Probe: 15315247/J-35616-64A (L-BU)
  • Pins: 3, 4
  • Terminal/Tray: 8100-0468/6
  • Core/Insulation Crimp: F/5
  • Release Tool/Test Probe: 12094430/J-35616-40 (BU)
Electronic Brake Control Module (EBCM) C1 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 PK 1439 Ignition 1 Voltage
2 OG 540 Battery Positive Voltage
3 - - Not Used
4 BK 850 Ground (LHD)
BK 2050 Ground (RHD)
