Transfer Case Control Schematics

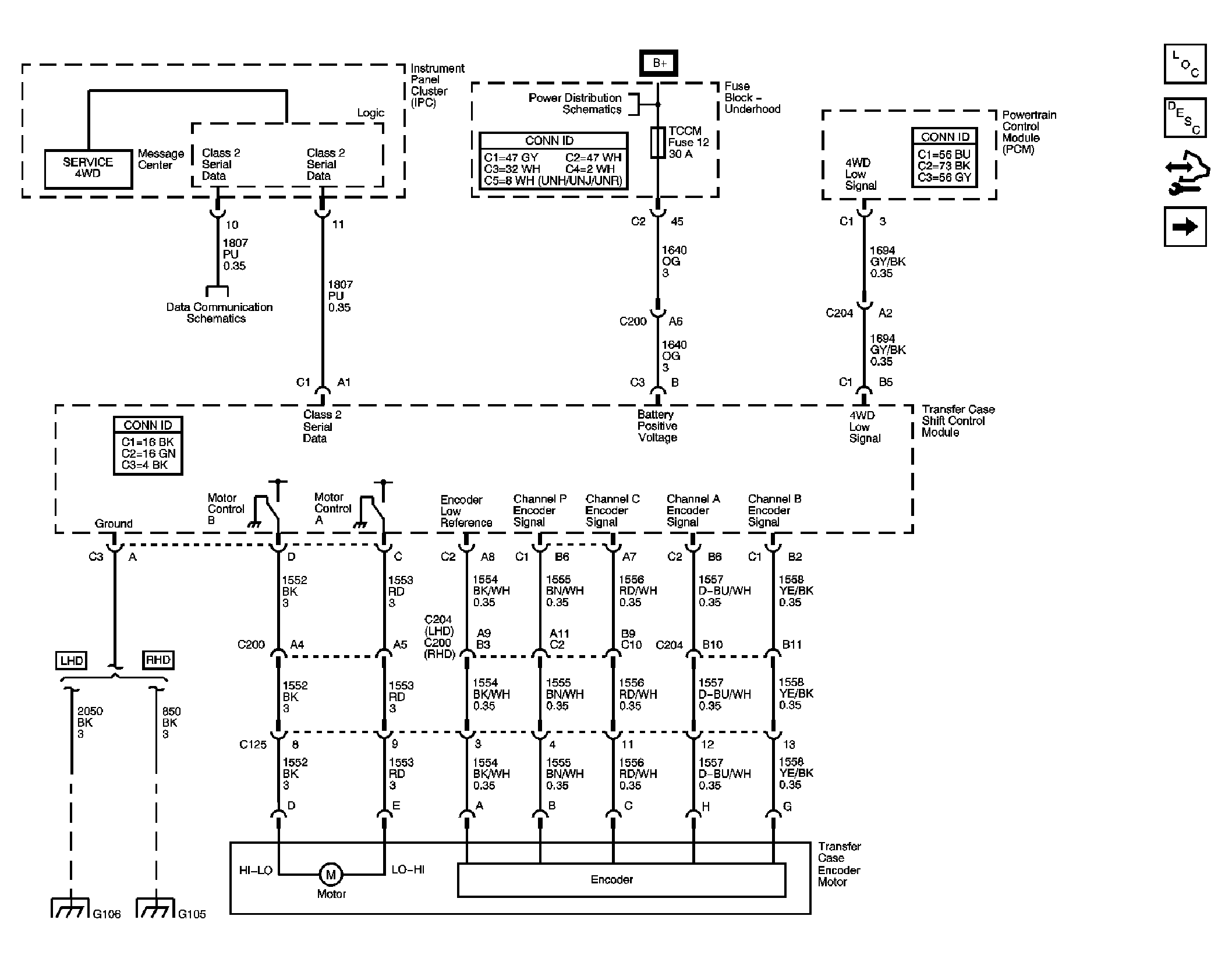

Fig 1: Power, Ground, Serial Data, Indicator, VSS & Encoder Motor Schematic
GM1777072Courtesy of GENERAL MOTORS CORP.

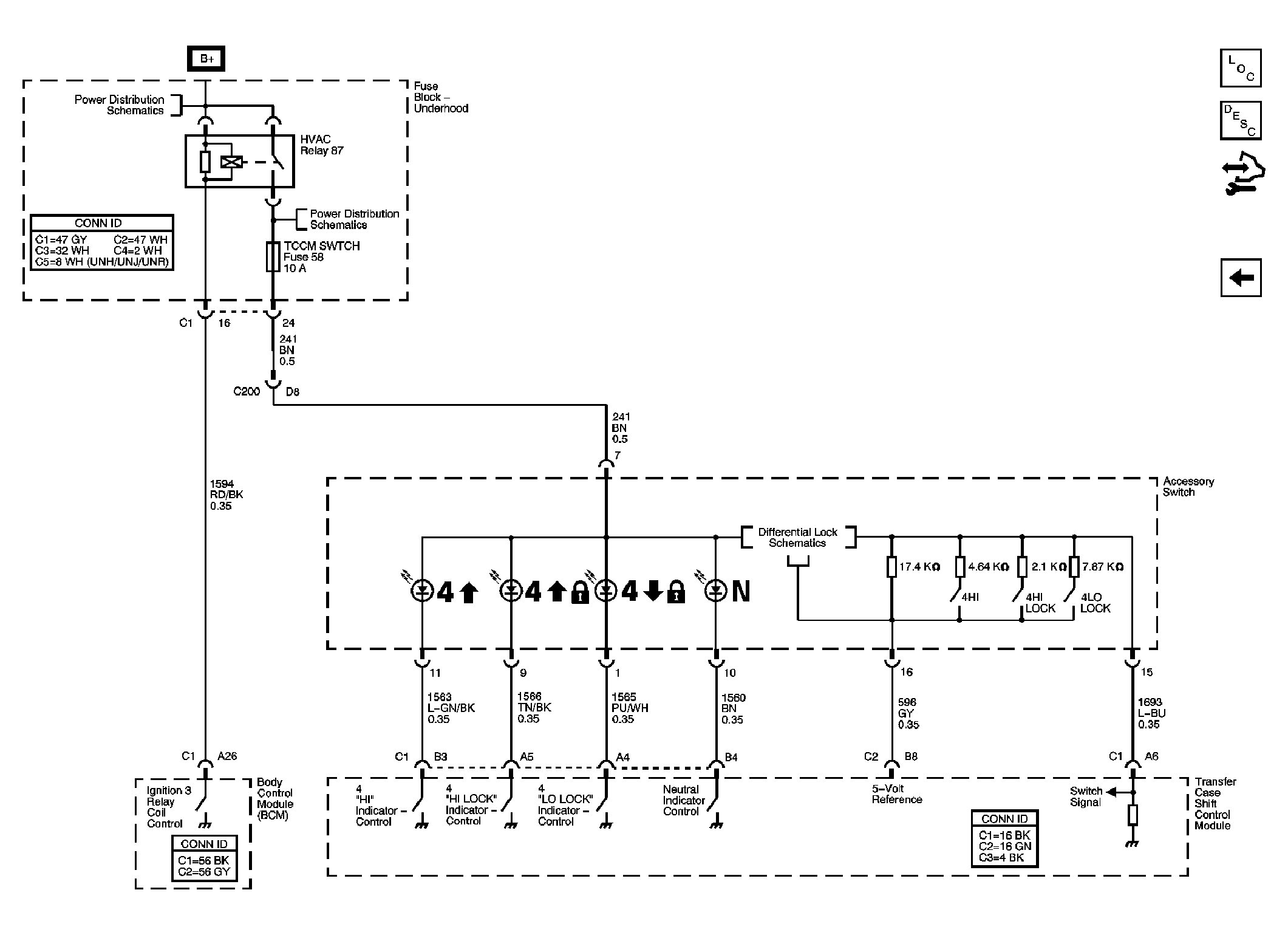

Fig 2: Shift Control Switch Inputs Schematic
GM1777082Courtesy of GENERAL MOTORS CORP.
