Front Seat Belt Buckle Replacement

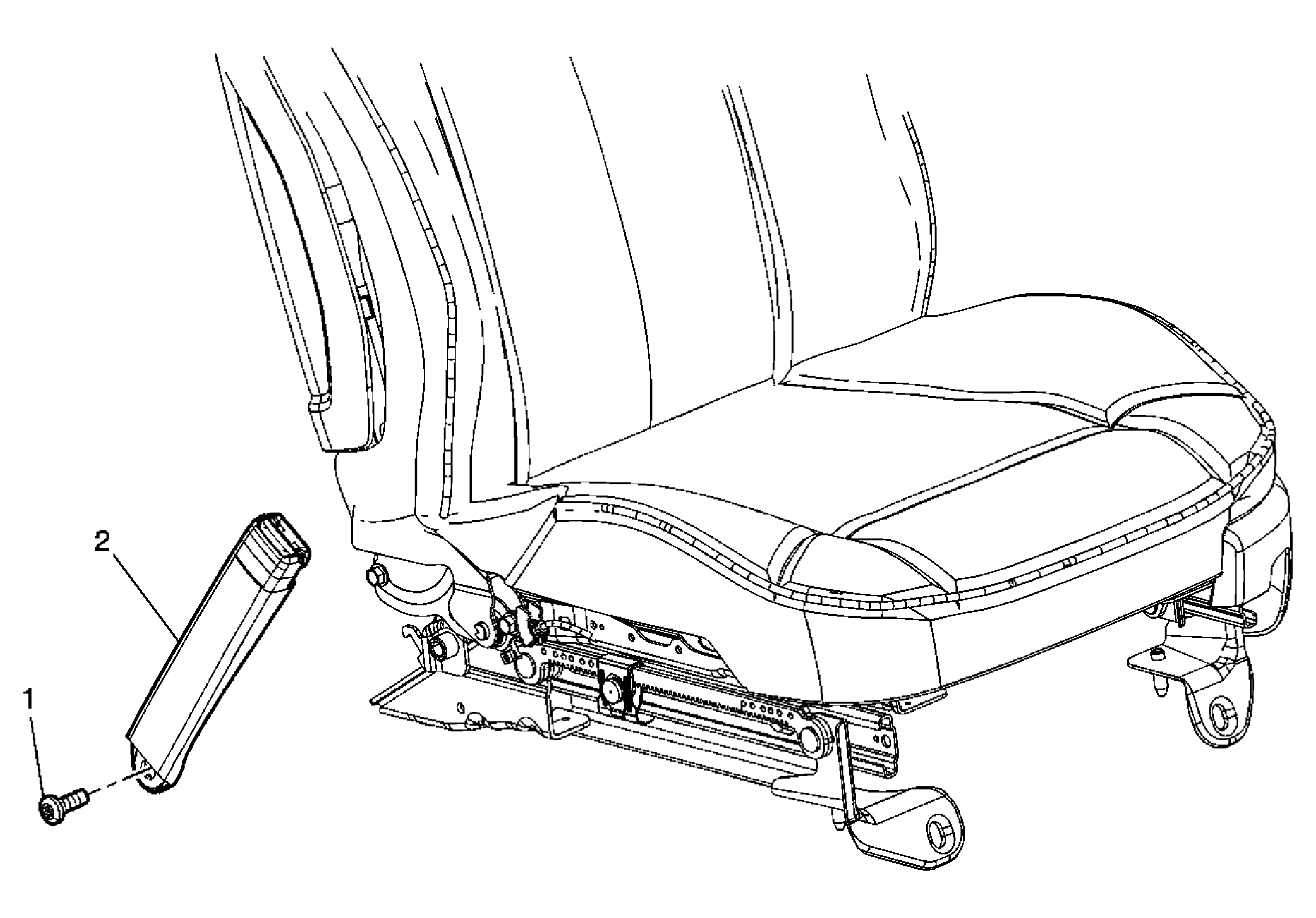

Fig 1: Replacing Front Seat Belt Buckle
GM1552313Courtesy of GENERAL MOTORS CORP.
Front Seat Belt Buckle Replacement

Callout Component Name
Preliminary Procedures:
Remove the front bucket seat. Refer to Front Seat Replacement - Bucket .
1 Seat Belt Buckle Bolt
NOTE: Refer to Fastener Notice .

Tighten:  52 N.m (38 lb ft)
2 Seat (Buckle Side) Belt Assembly
Tip:  Disconnect the electrical connector.
