Removal Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing Mirror Face
    GM625758Courtesy of GENERAL MOTORS CORP.
  1. Place your fingers as far as possible behind the mirror glass towards the center of the back.

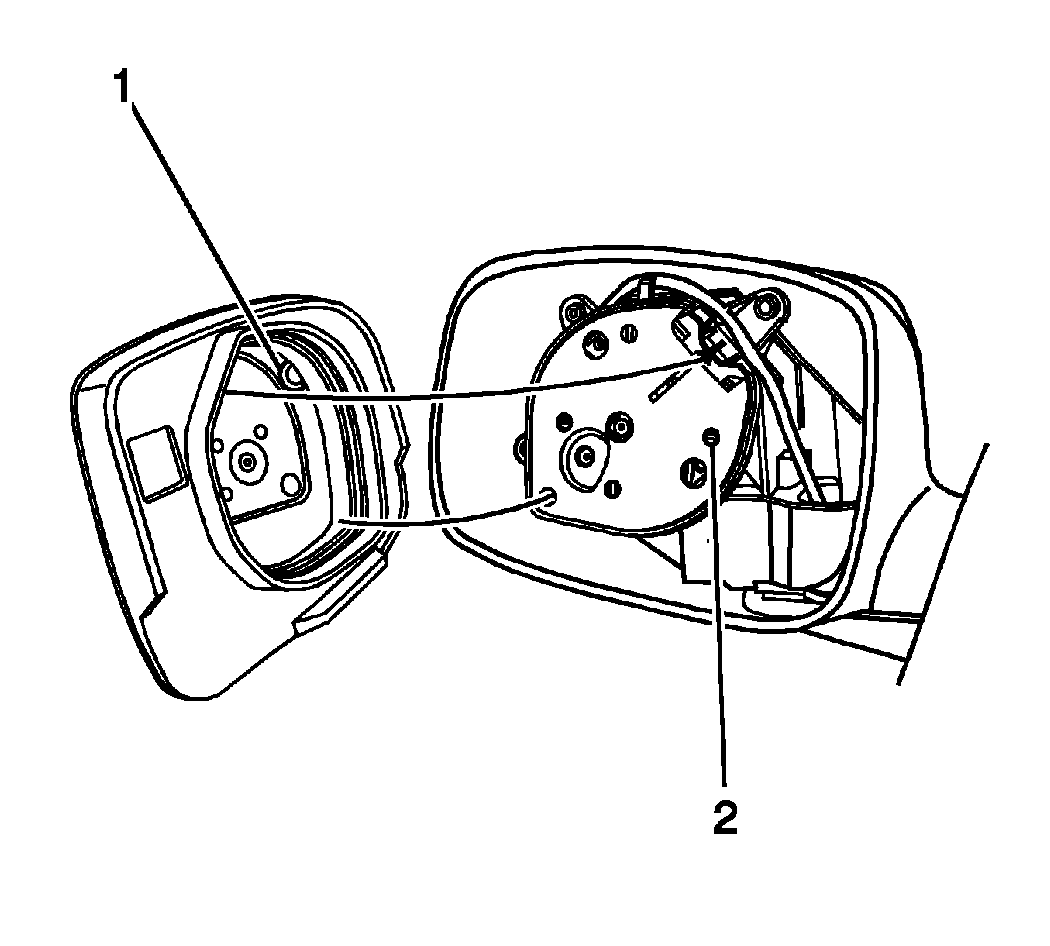

    2. Fig 2: View Of Mirror Glass & Mirror Motor
    GM1337134Courtesy of GENERAL MOTORS CORP.
  2. Remove the mirror glass (1) from the mirror motor (2) with sufficient force to disengage the snap-locks on the mirror motor.
  3. Remove the mirror glass from the mirror.
