Interior Lights Schematics

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

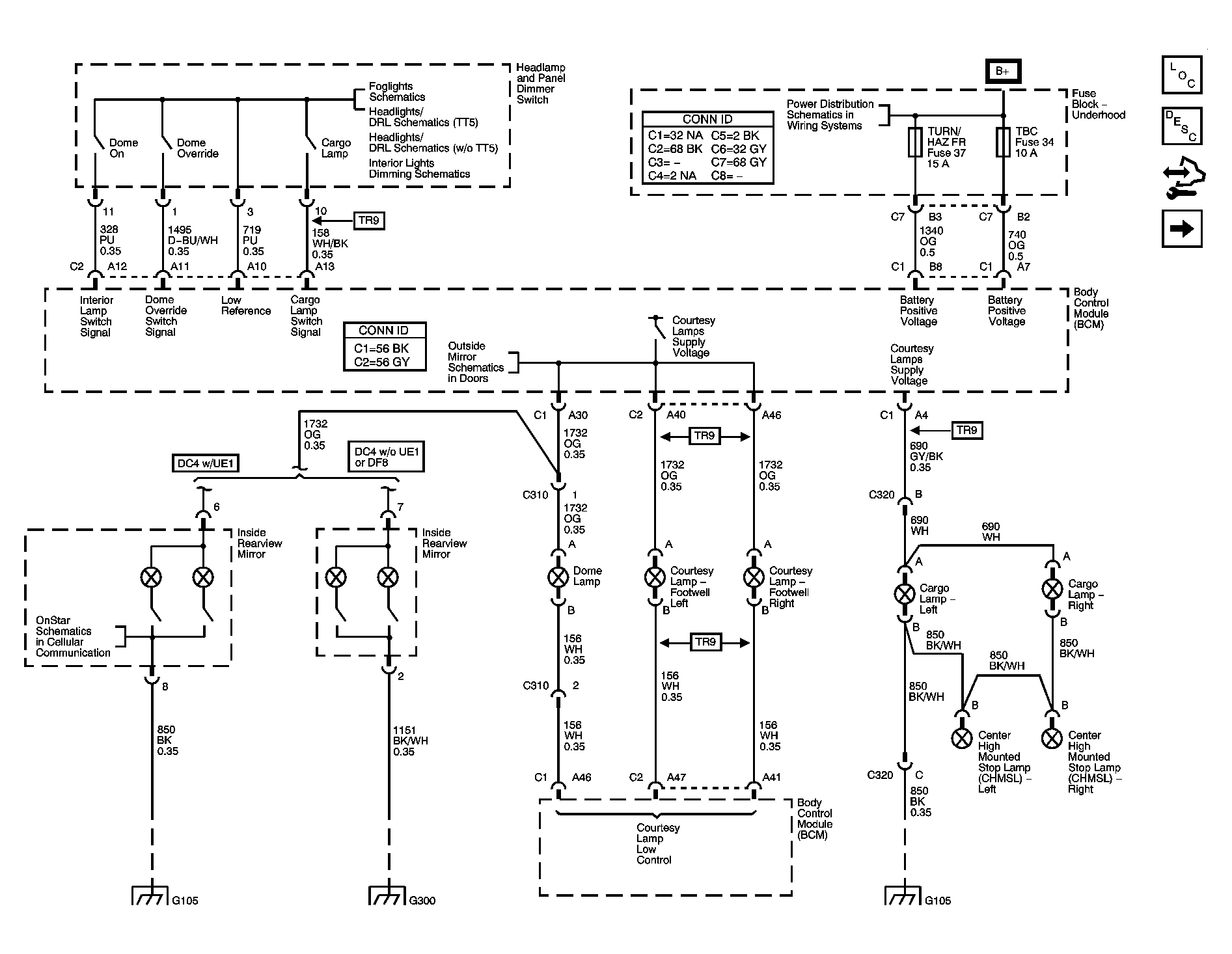

Fig 1: Inside Rearview Mirror, Dome Lamp, Footwell Courtesy Lamps & Cargo Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

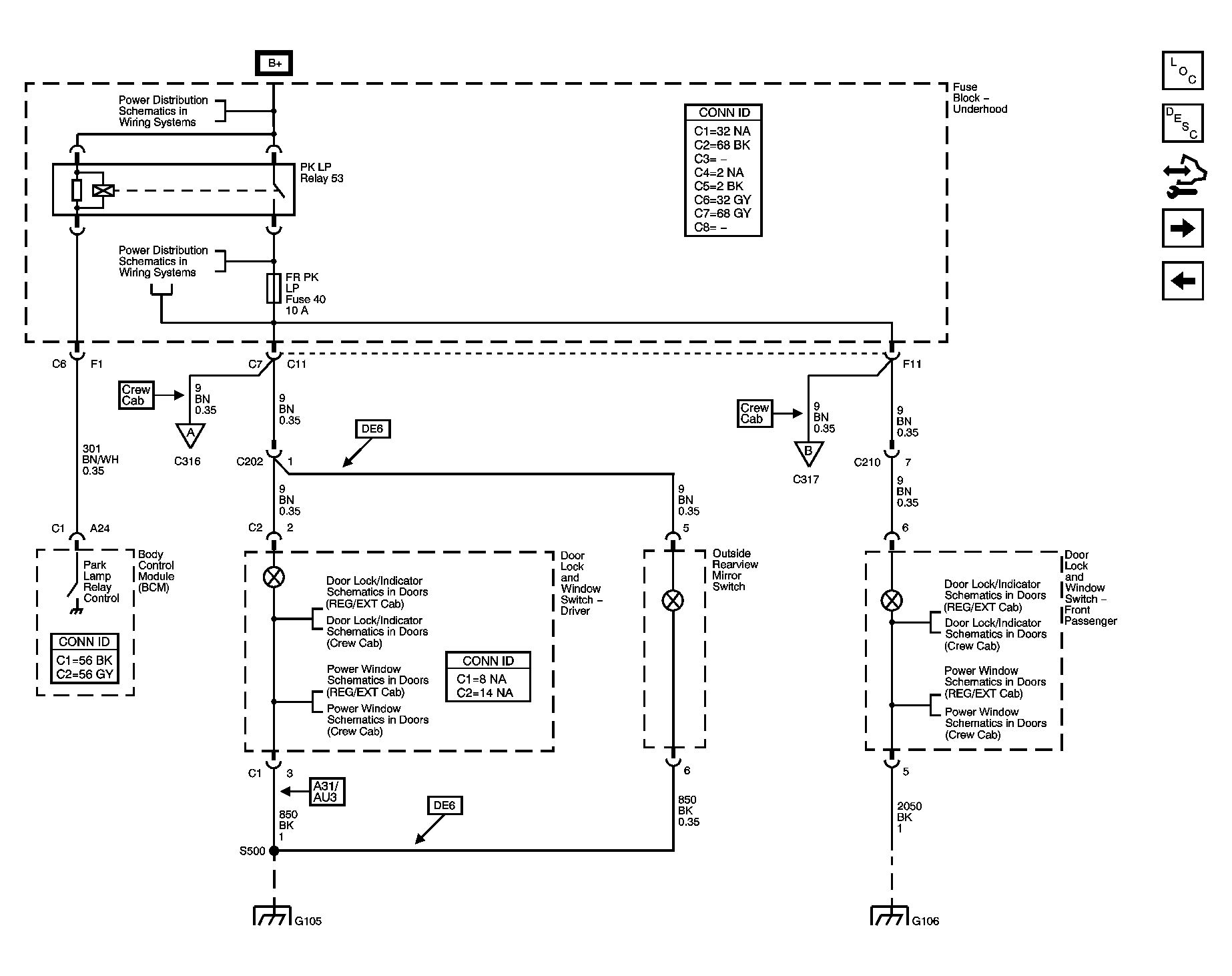

Fig 2: Door Lock, Window Switches & Outside Rearview Mirror Switch Schematic

Courtesy of GENERAL MOTORS CORP.

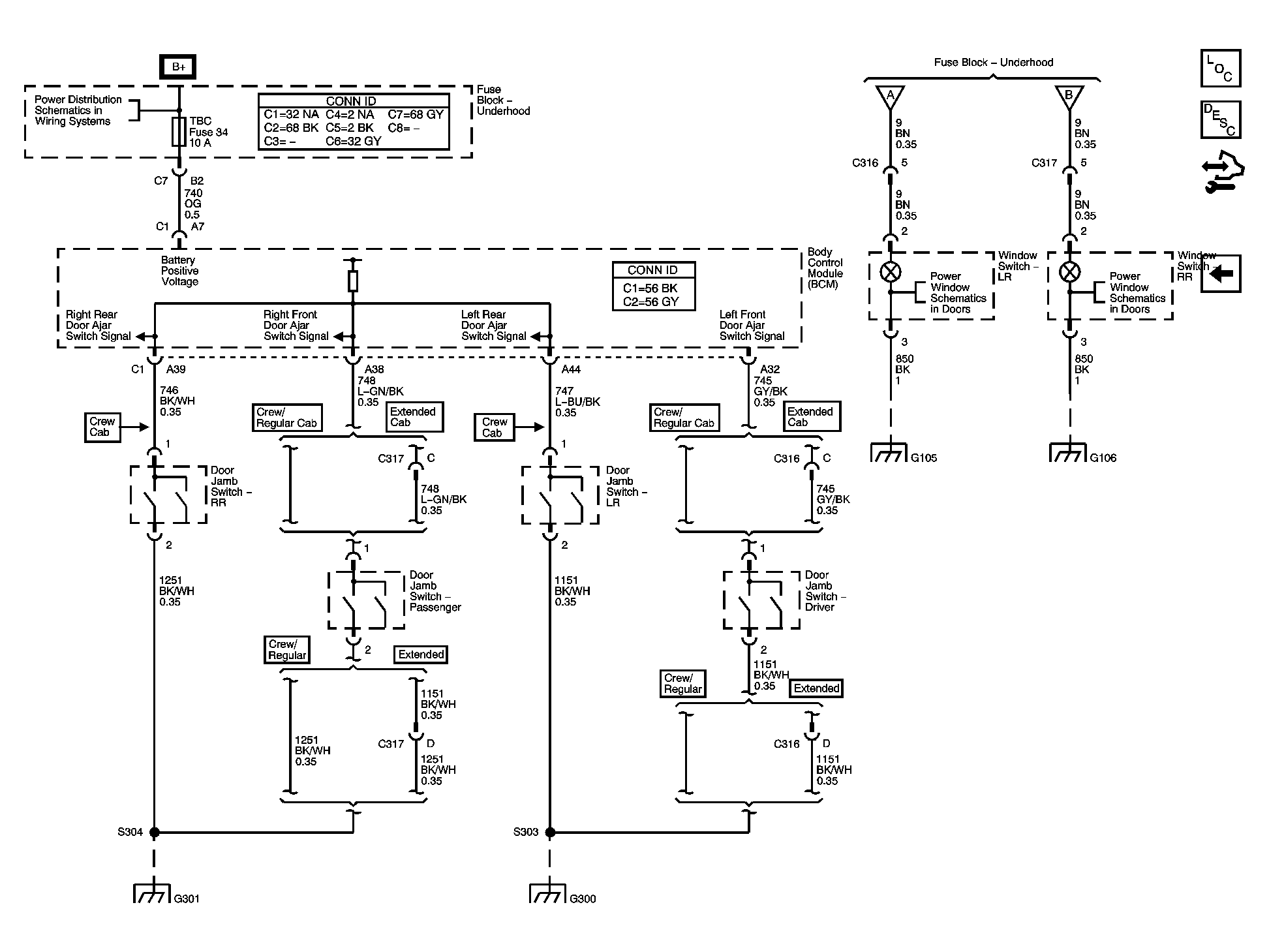

Fig 3: Door Jamb Switches Schematic

Courtesy of GENERAL MOTORS CORP.
