Removal Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Hazard Warning Switch Electrical Connector
    GM1276393Courtesy of GENERAL MOTORS CORP.
  1. Remove the instrument panel (I/P) accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages, and Console.
  2. Disconnect the hazard switch electrical connector.
    3. IMPORTANT: Ensure the tabs retaining the switch to the trim plate are released from the back side of the trim panel.
  3. Release the tabs retaining the switch to the trim plate.

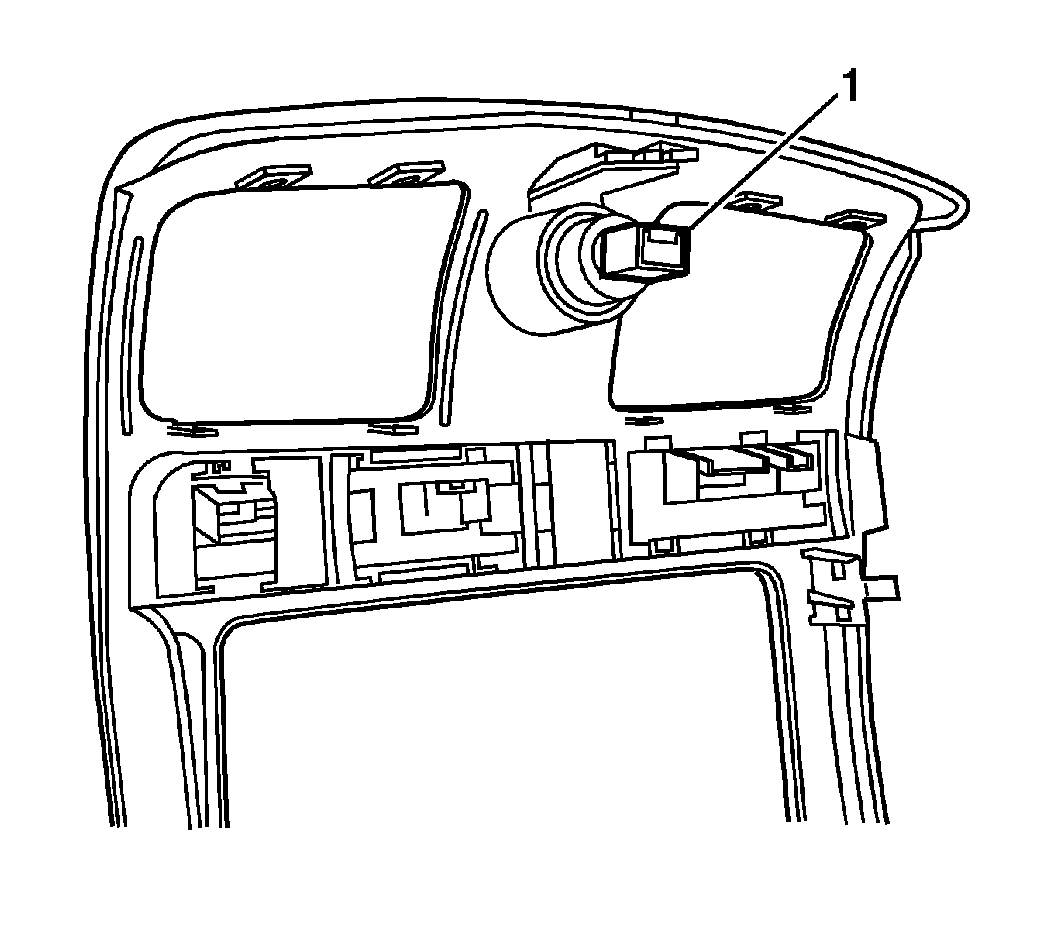

    4. Fig 2: View Of Hazard Warning Switch
    GM1276394Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch (1) from the trim plate.
