Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

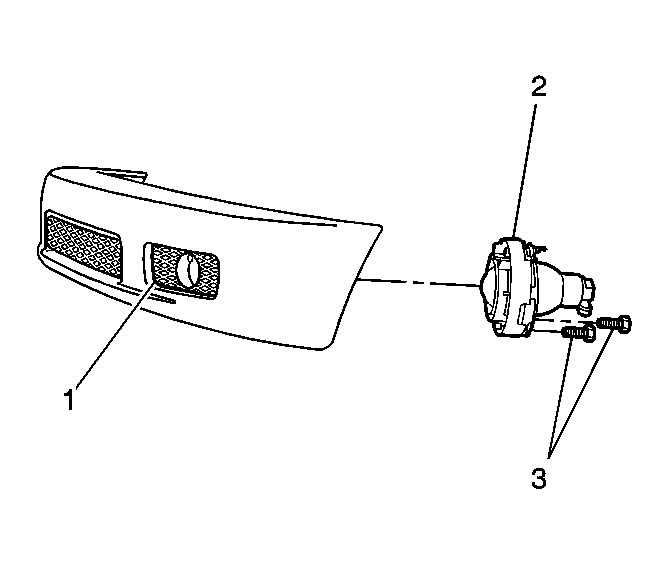

    Fig 1: View Of Fog Lamp, Screws & Fascia (XTREME)
    GM1505882Courtesy of GENERAL MOTORS CORP.
  1. Install the fog lamp housing ring to the fascia.
  2. Align the fog lamp housing ring with the retaining clips on the fascia.
  3. Push inward to fully seated to fascia.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the fog lamp lower screws.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

  5. Install the fog lamp adjustment screw and adjust lamp.

    Tighten:  Tighten the bolts to 1 N.m (12 lb in).

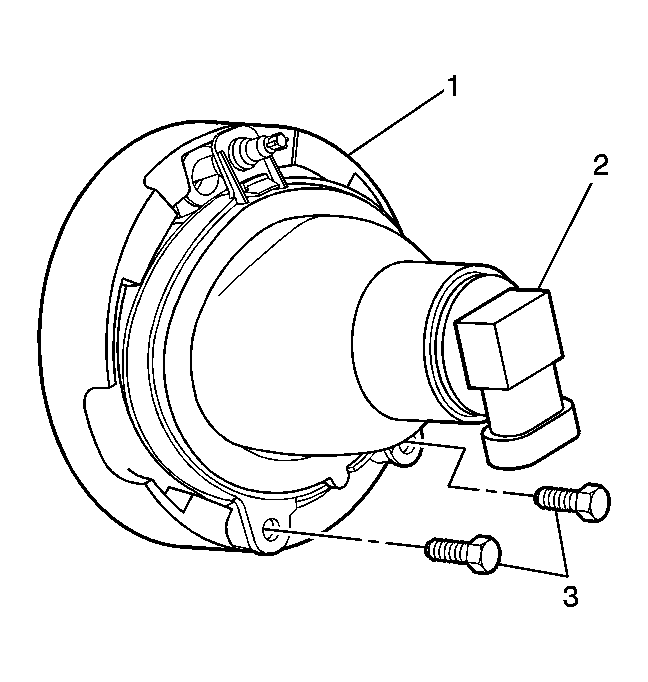

    6. Fig 2: View Of Fog Lamp Switch, Bulb & Screws (XTREME)
    GM1505878Courtesy of GENERAL MOTORS CORP.
  6. Install the bulb (2) to the housing. Refer to Fog Lamp Bulb Replacement - Front (Canyon)  or Fog Lamp Bulb Replacement - Front (XTREME) .
  7. Index the tabs on the bulb socket to the slots in the fog lamp housing.
  8. Rotate the socket clockwise until fully seated.
