Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

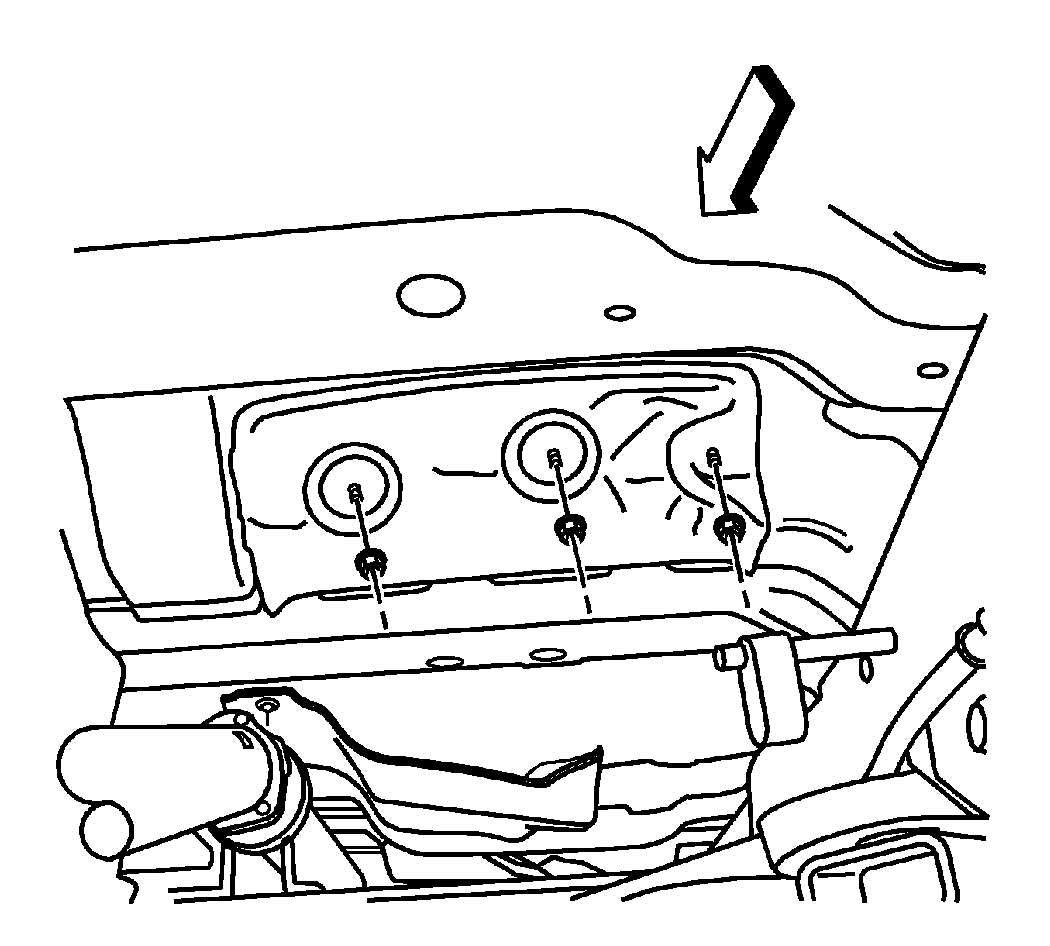

    Fig 1: View Of Exhaust Muffler Heat Shield To Floor Panel Nuts
    GM1313629Courtesy of GENERAL MOTORS CORP.
  1. Position the exhaust muffler heat shield to the floor panel studs.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 3 nuts securing the heat shield to the floor panel.

    Tighten:  Tighten the heat shield nuts to 9 N.m (80 lb in).

  3. Lower the vehicle.
