Removal Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Exhaust Service Caution in Cautions and Notices.
CAUTION: Refer to Protective Goggles and Glove Caution in Cautions and Notices.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

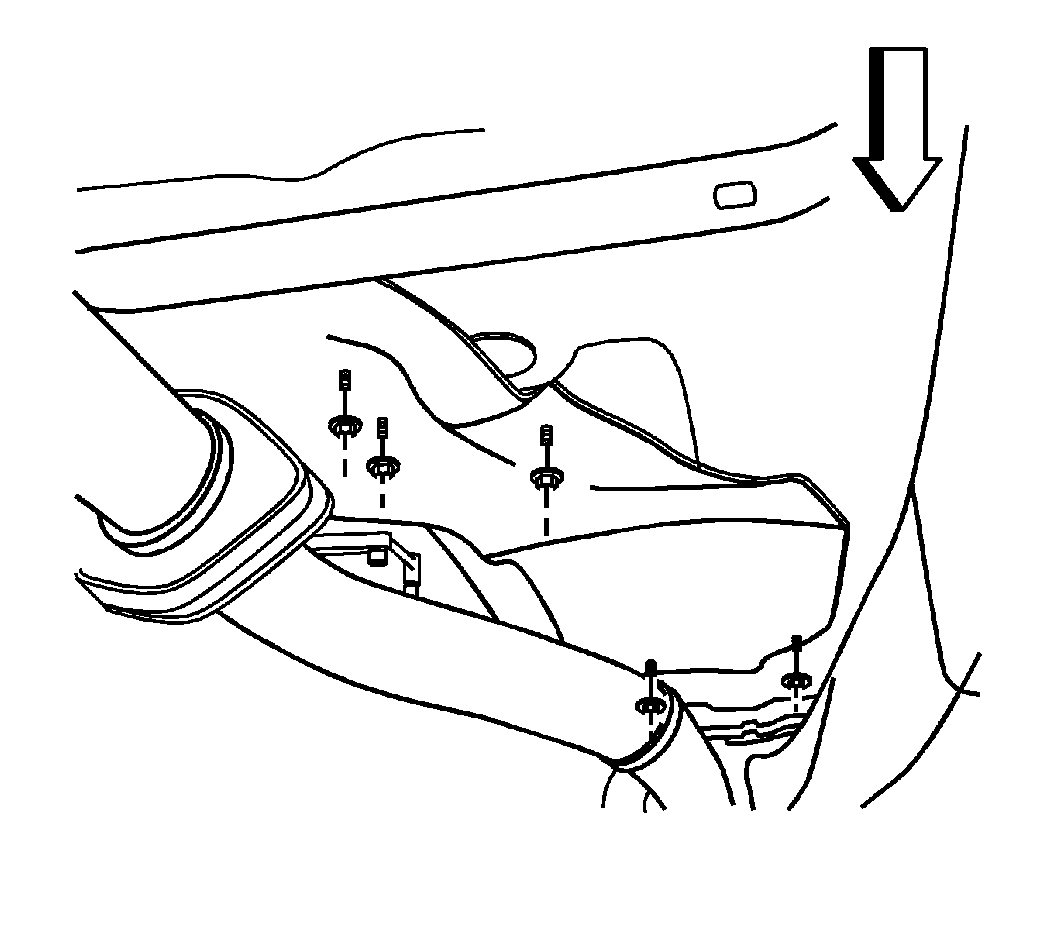

    2. Fig 1: View Of Heat Shield To Floor Panel Nuts
    GM1313627Courtesy of GENERAL MOTORS CORP.
  2. Remove the 5 nuts securing the heat shield to the floor panel.
  3. Remove the catalytic converter heat shield from the floor panel.
