Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

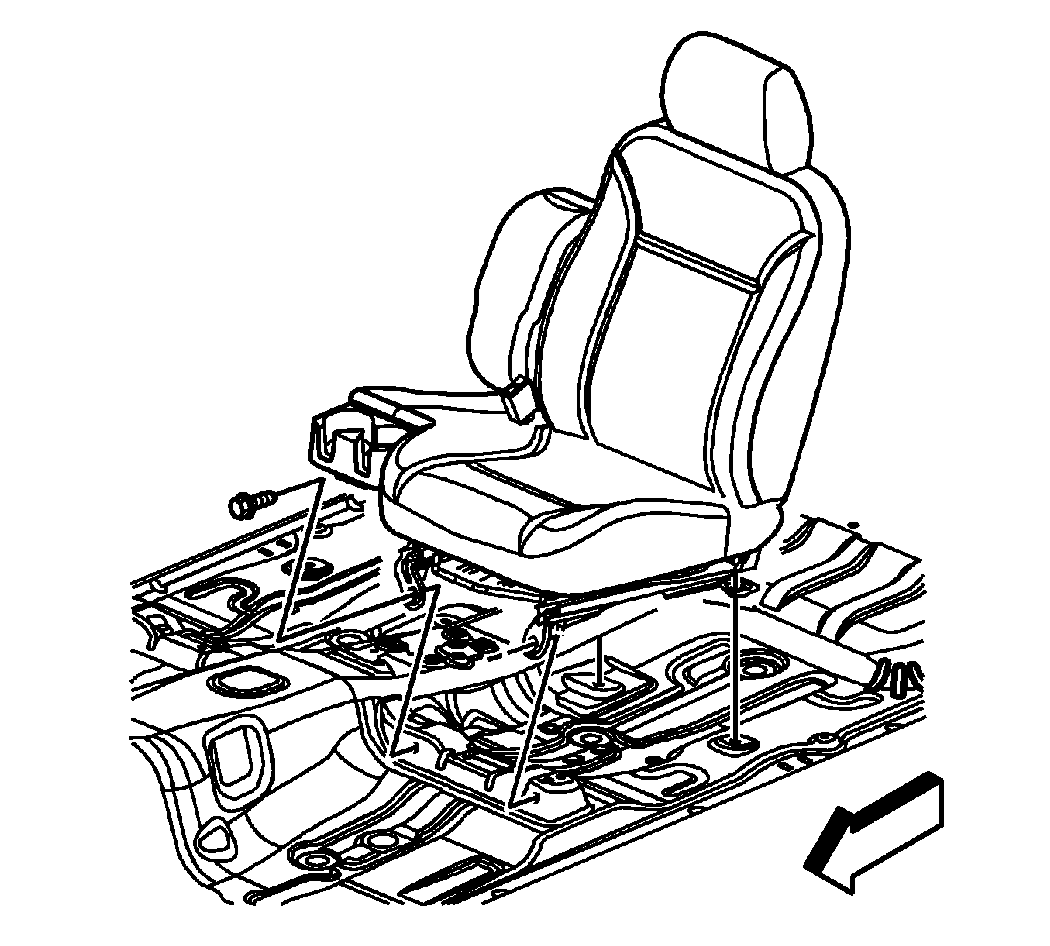

    Fig 1: View Of Split Bench Seat
    GM1277332Courtesy of GENERAL MOTORS CORP.
  1. Position the seat in the vehicle.
  2. Connect the seat electrical connectors to the body harness.
  3. Install the rear bolts.
  4. Ensure that the seat is all the way rearward.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
    IMPORTANT: After installation of a manual seat, move your body around in the seat to insure that the manual seat adjuster positively locks into position.
  5. Install the front bolts.

    Tighten:  Tighten the front seat mounting bolts to 52.5 N.m (39 lb ft).
