Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

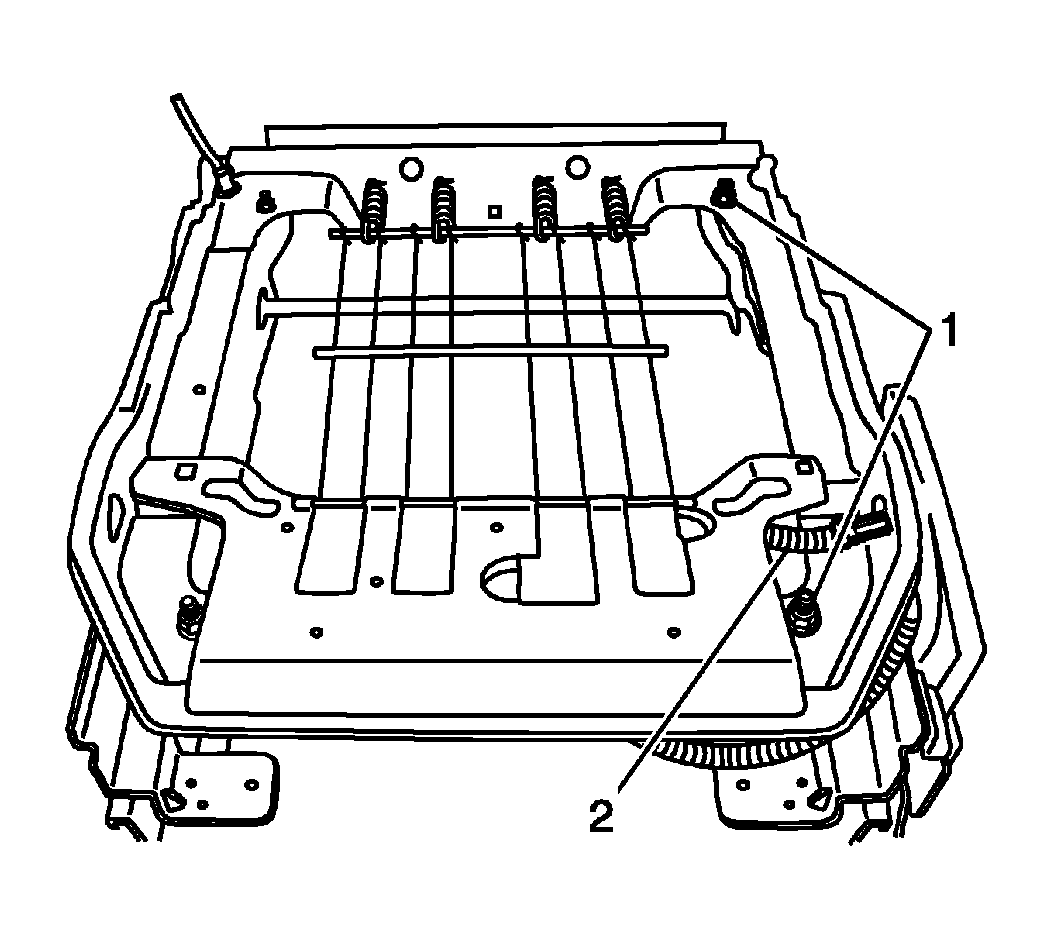

    Fig 1: View Of Wire Harness & Seat Cushion Frame Nuts
    GM1333096Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the seat cushion frame to the seat adjuster with 4 nuts (1).

    Tighten:  Tighten the front seat cushion frame mounting nuts to 24 N.m (18 lb ft).

  2. Route the wire harness for the lumbar and seat heat switches through the hole in the seat cushion frame and connect the connectors.
  3. Install the assist spring.

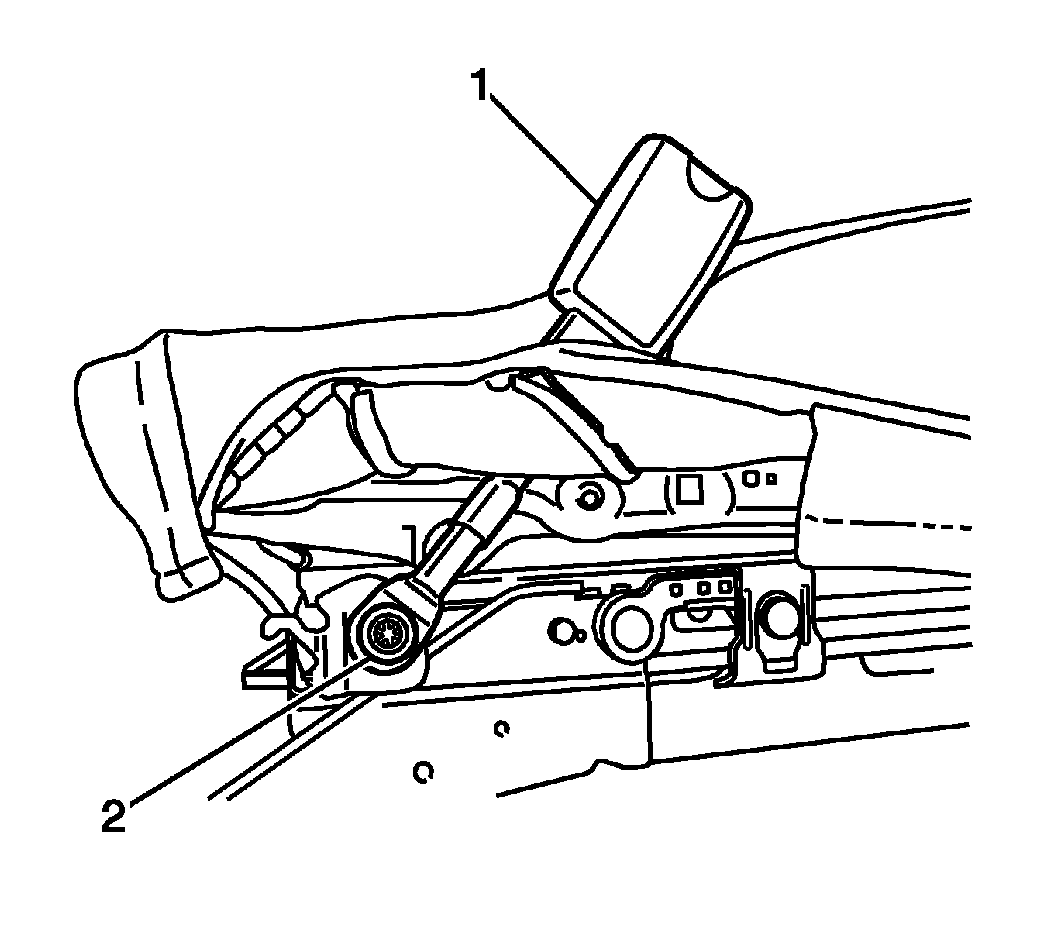

    4. Fig 2: View Of Seat Belt Buckle Assembly
    GM1333095Courtesy of GENERAL MOTORS CORP.
  4. Install the seat cushion foam pad and cover to the frame.
  5. Install the seat belt buckle assembly (1) through the seat cushion pad.
  6. Install the seat belt buckle assembly (1) to the seat adjuster with the bolt (2).

    Tighten:  Tighten the front seat belt buckle bolt to 55 N.m (41 lb ft).

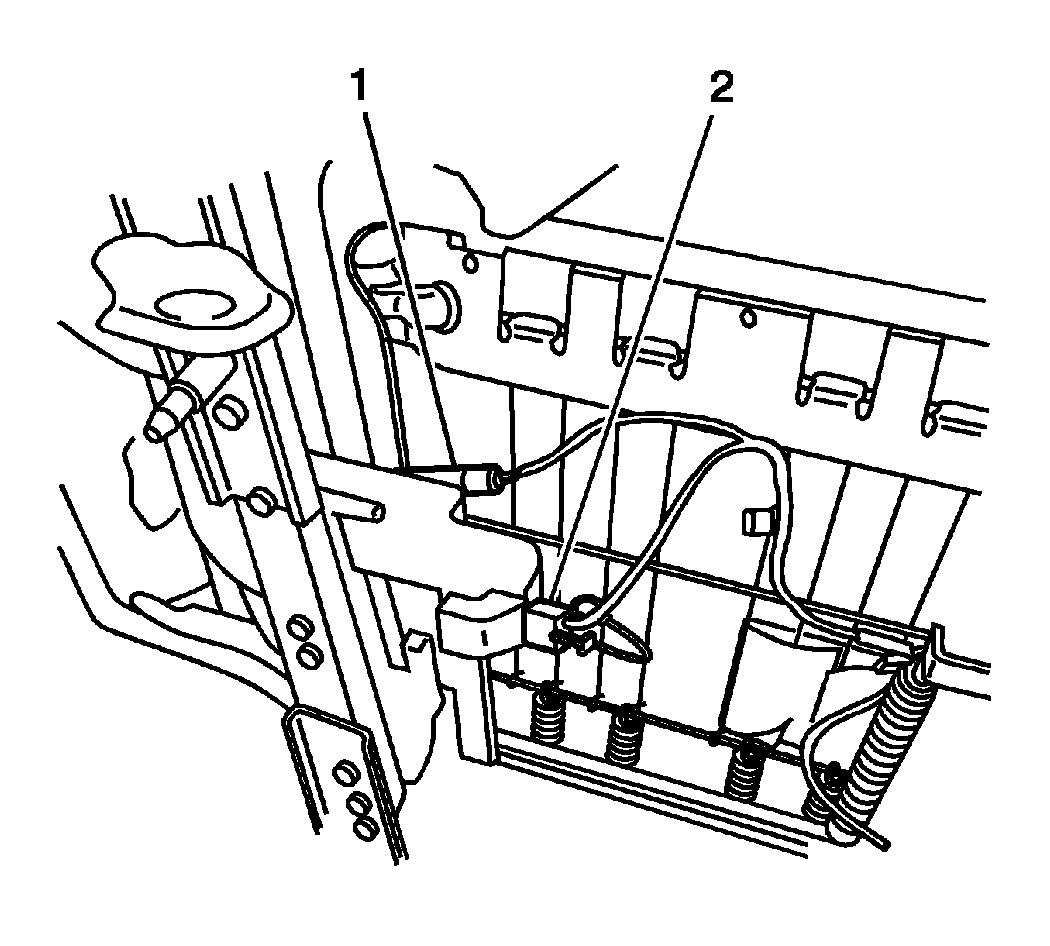

    7. Fig 3: View Of Seat Buckle Electrical Connector & Wiring Harness
    GM1333091Courtesy of GENERAL MOTORS CORP.
  7. Connect the seat belt buckle electrical connector (1).
  8. Install any clips or straps securing the electrical harness to the bottom of the seat cushion frame.
  9. Position the seat back assembly on the seat cushion assembly.

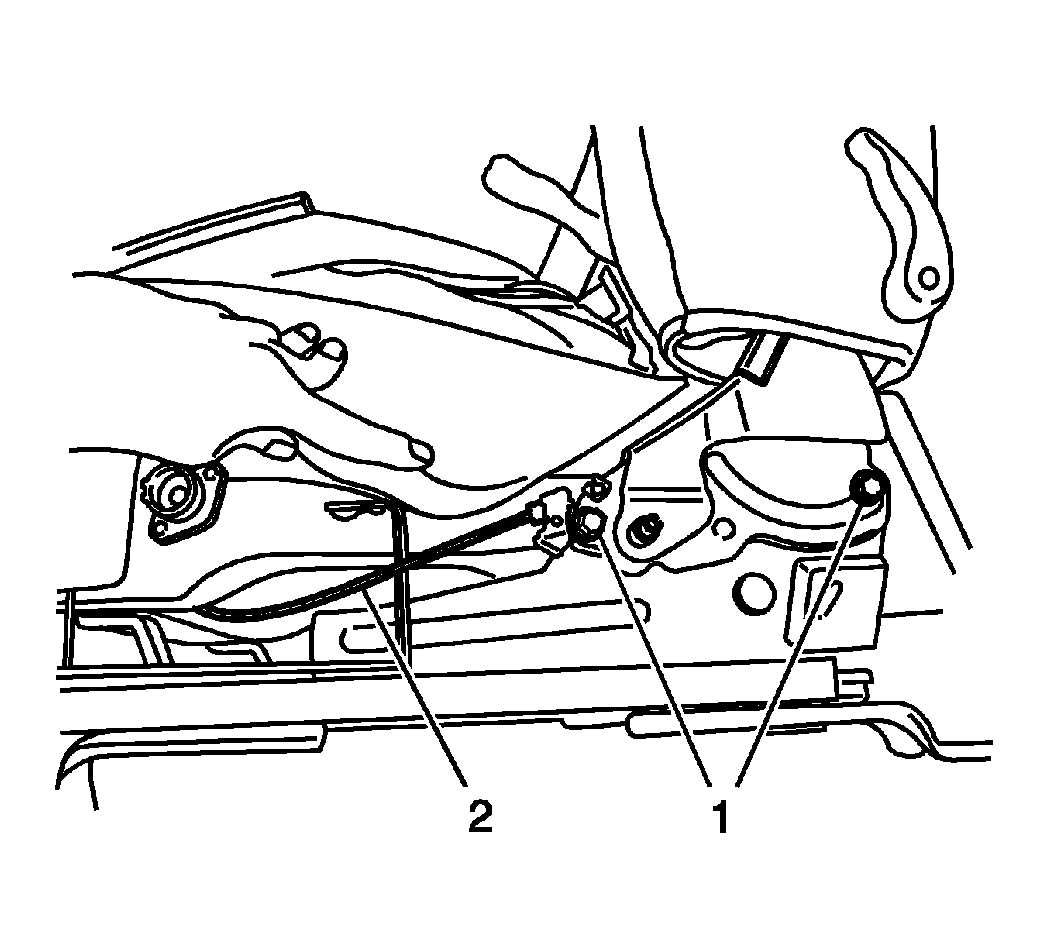

    10. Fig 4: View Of Seat Recliner Bolts
    GM1333093Courtesy of GENERAL MOTORS CORP.
  10. Install the 2 bolts (1) securing the seat recliner to the seat adjuster.

    Tighten:  Tighten the front seat recliner bolts to 24 N.m (18 lb ft).

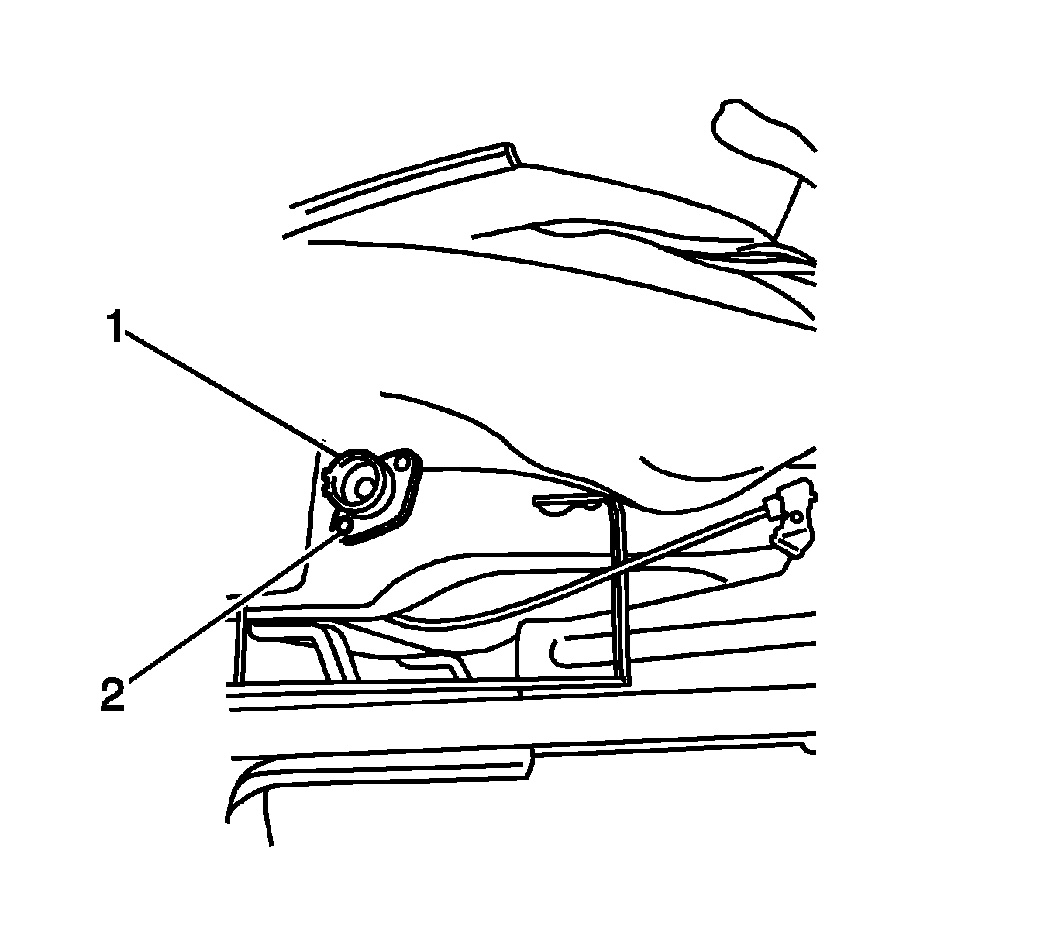

    11. Fig 5: View Of Lumbar Adjustment Mechanism & Retaining Screws
    GM1333092Courtesy of GENERAL MOTORS CORP.
  11. Install the lumbar adjustment mechanism (1) to the seat adjuster with the 2 screws (2).
  12. Install the lumbar cable to the lumbar adjustment mechanism.
  13. Install the seat switch bezel, if equipped. Refer to Seat Switch Bezel Replacement .
  14. Install the lumbar knob by pushing the knob straight onto the shaft, if equipped.
  15. Install the recliner handle. Refer to Seat Back Recliner Handle Replacement - Front .

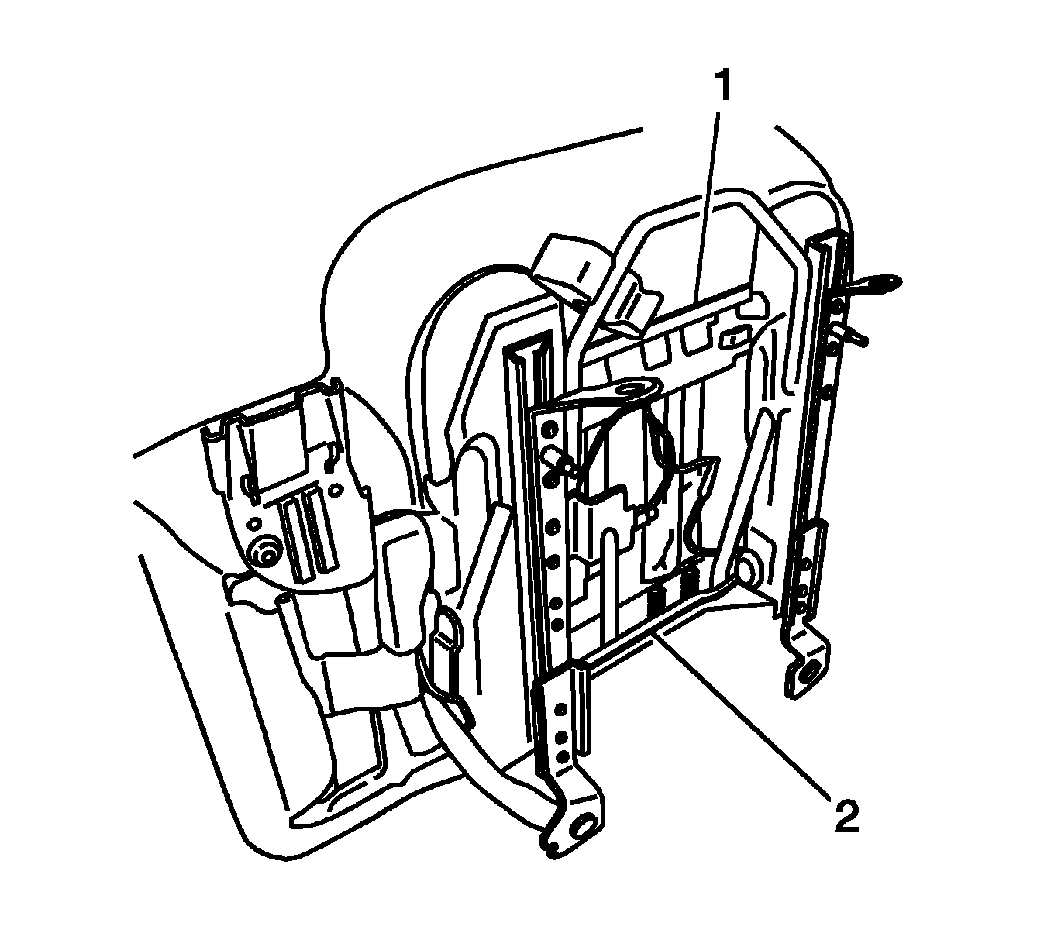

    16. Fig 6: View Of J-Strips
    GM1333089Courtesy of GENERAL MOTORS CORP.
  16. Install the front, rear, and side J-strips (1, 2) to the underside of the seat.

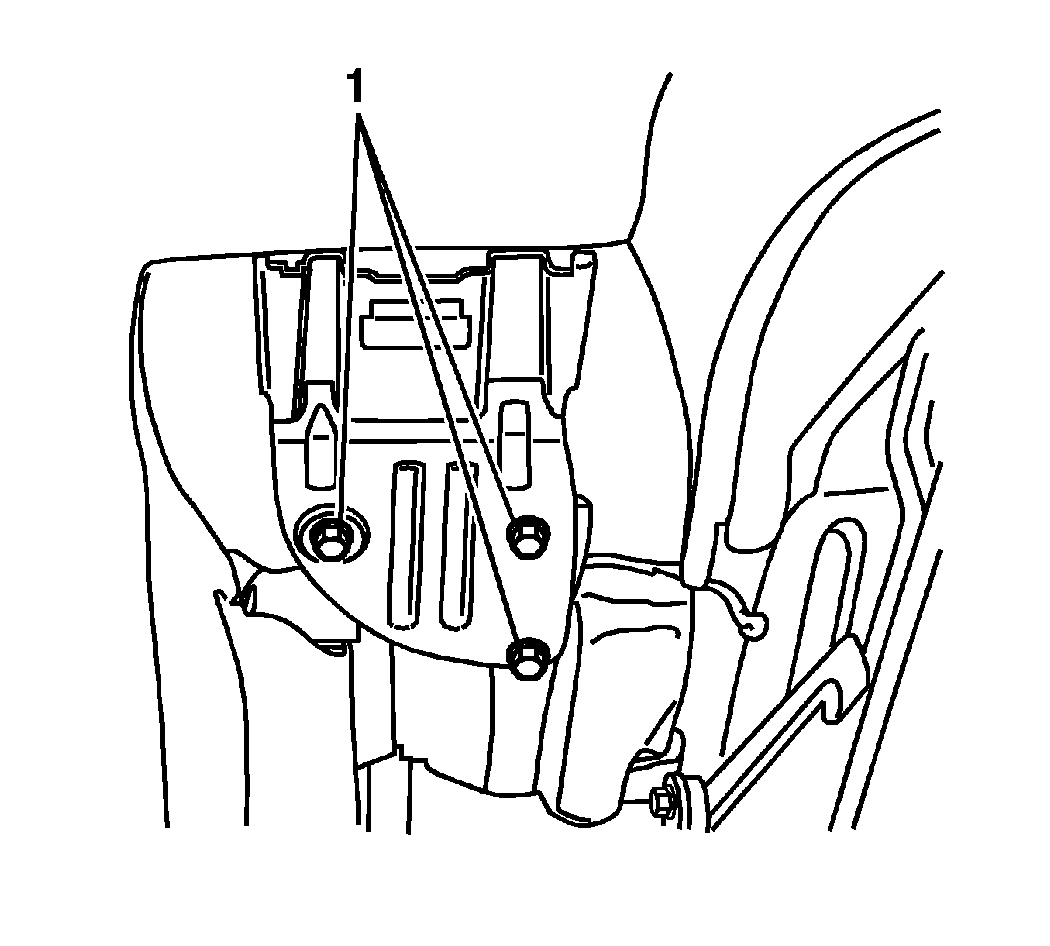

    17. Fig 7: View Of Cupholder Bracket Bolts
    GM1333099Courtesy of GENERAL MOTORS CORP.
  17. Install the 3 bolts (1) securing the cupholder bracket to the seat frame, if equipped.

    Tighten:  Tighten the front seat cupholder bracket bolts to 9.1 N.m (80 lb in).

  18. Install the front seat cushion outer trim panel. Refer to Seat Cushion Outer Trim Panel Replacement .

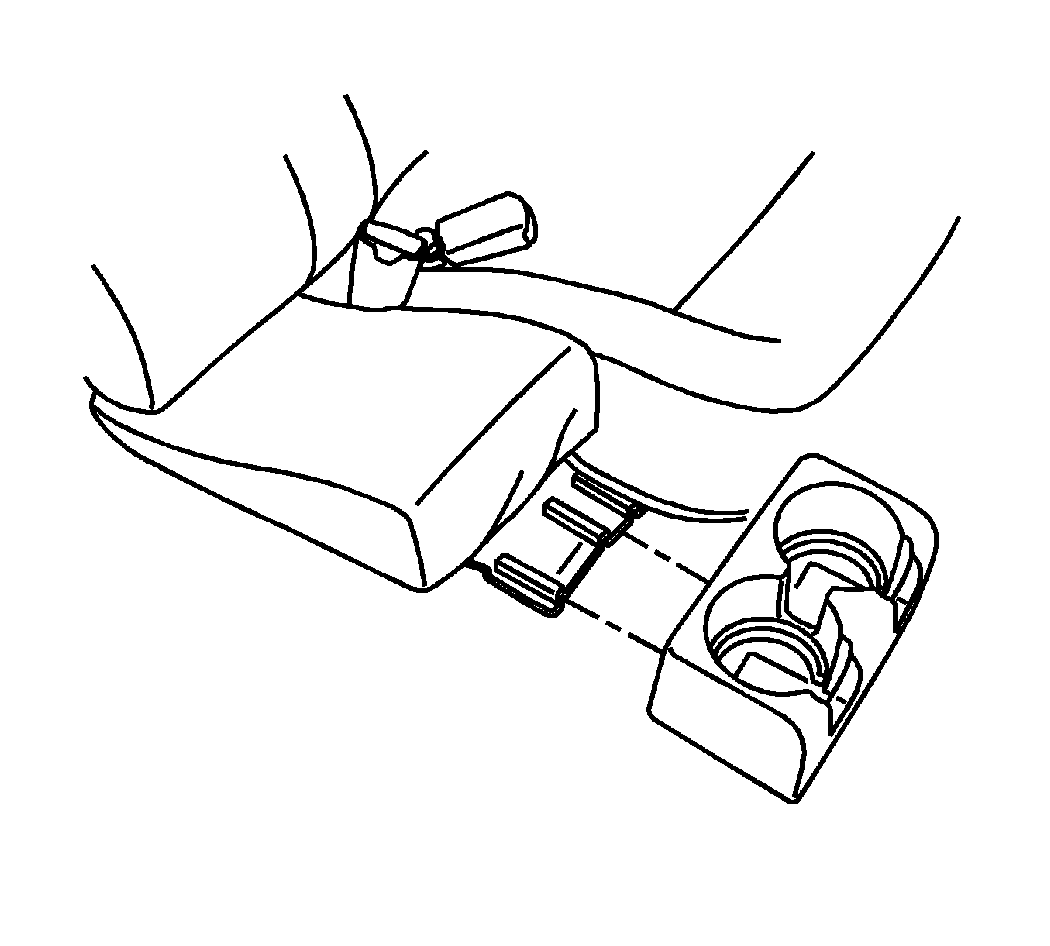

    19. Fig 8: View Of Cupholder
    GM1333098Courtesy of GENERAL MOTORS CORP.
  19. Install the cupholder to the seat by pushing it straight onto the bracket.
  20. Install the seat in the vehicle. Refer to Seat Replacement - Front Bucket  or Seat Replacement - Split Bench .
