Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable between the seat cushion frame and the seat adjuster.
    2. Fig 1: View Of Wire Harness & Seat Cushion Frame Nuts
    GM1333096Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Tighten the seat cushion frame mounting nuts (1) that secure the seat cushion frame to the power seat adjuster frame.

    Tighten:  Tighten the front seat cushion frame mounting nuts to 24 N.m (18 lb ft).

  3. Install the seat cushion cover and pad over the seat cushion frame. Refer to Seat Cushion Cover and Pad Replacement - Front .

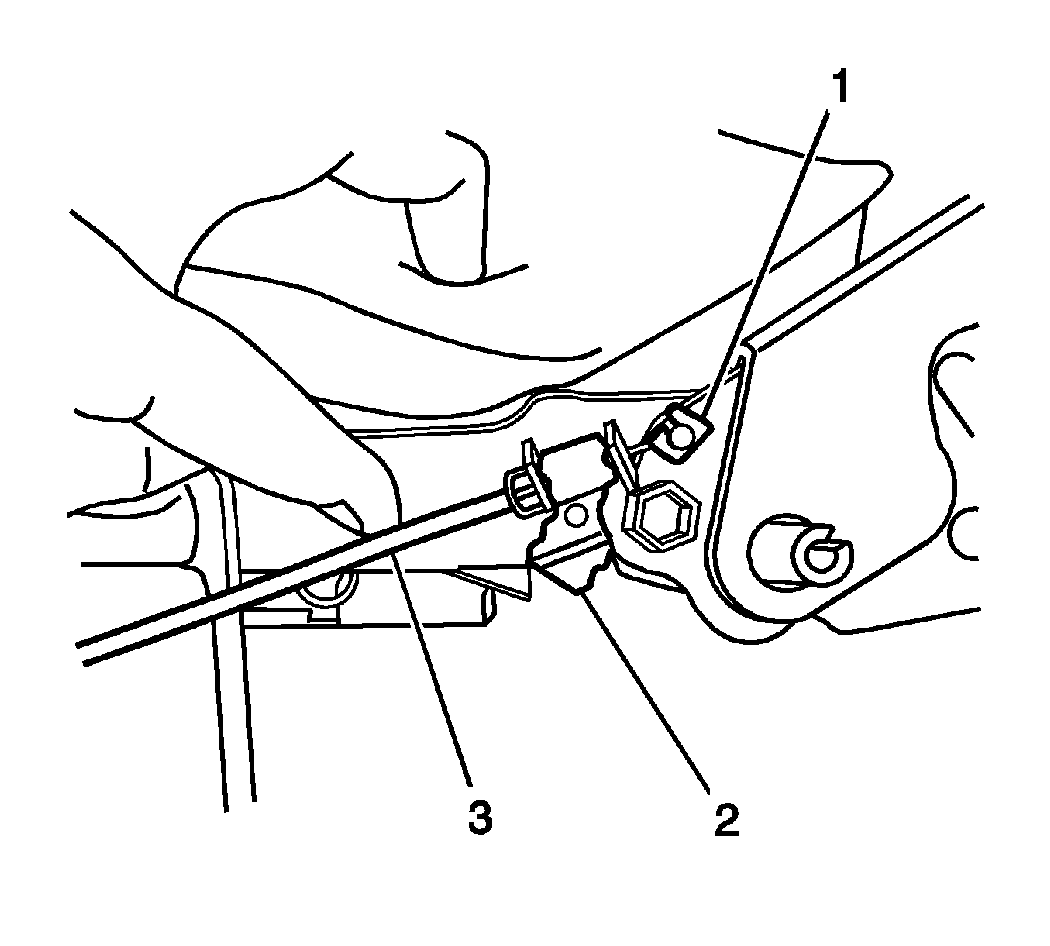

    4. Fig 2: View Of Seat Adjuster & Cable
    GM1350222Courtesy of GENERAL MOTORS CORP.
  4. Install the cable end to the seat adjuster (2) by inserting the ball (1) though the round opening.
  5. Install the seat adjuster cable (3) to the seat adjuster (2).
  6. Repeat steps 5 and 6 to install the cable to the opposite side of the seat.
  7. Install the seat switch bezel. Refer to Seat Switch Bezel Replacement .
  8. Install the seat cushion outer trim panel. Refer to Seat Cushion Outer Trim Panel Replacement .
  9. Install the seat in the vehicle. Refer to Seat Replacement - Split Bench  or Seat Replacement - Front Bucket .
