Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat back panel on the seat-back frame.
  2. Install the seat back panel to the frame with a push-pin fastener (1) at the top of the panel.

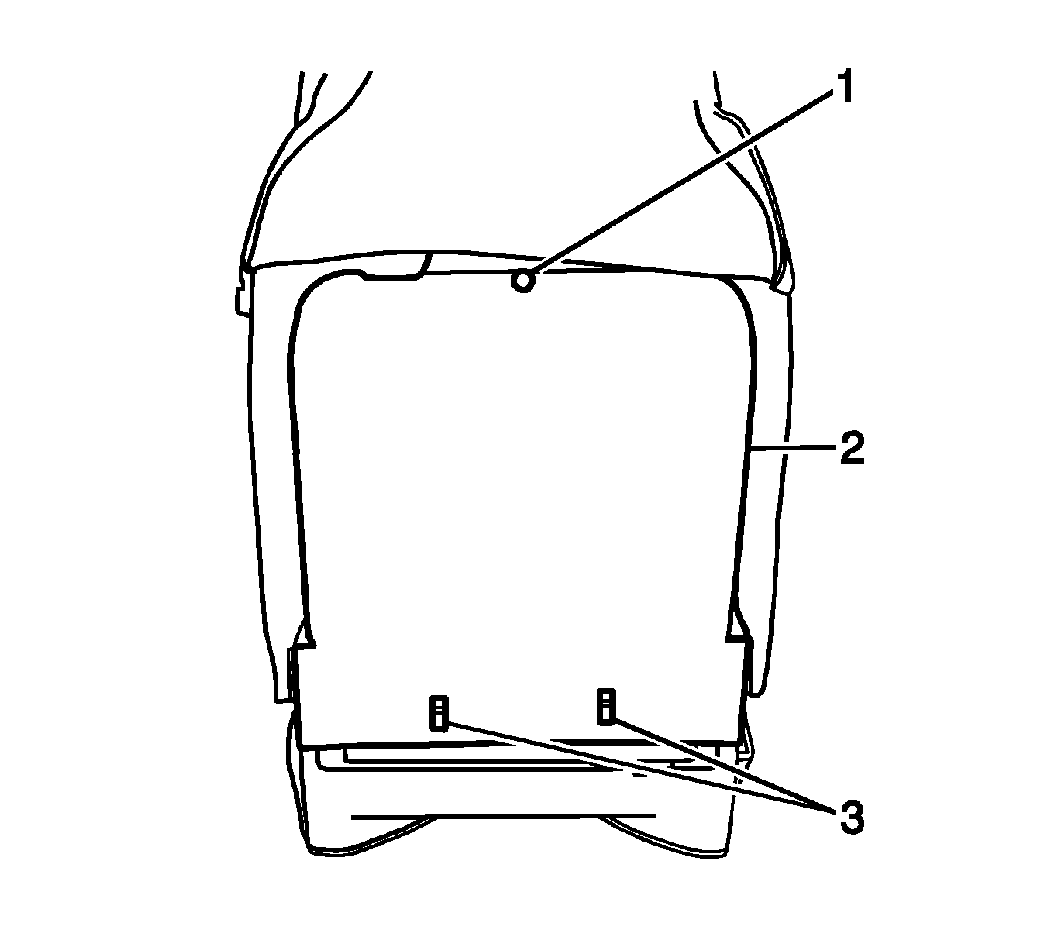

    3. Fig 1: View Of Seat Back Panel & Fasteners
    GM1333666Courtesy of GENERAL MOTORS CORP.
  3. Install the 2 hog ring fasteners (3) to the bottom of the seat back panel (2).
  4. Install the front seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  5. Install the seat in the vehicle. Refer to Seat Replacement - Split Bench  or Seat Replacement - Front Bucket .
