Removal Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly. Refer to Seat Replacement - Front Bucket  or Seat Replacement - Split Bench .
  2. Remove the front seat head restraint. Refer to Head Restraint Replacement - Front Seat .
  3. Pull the seat back cover and the seat back pad up high enough to expose the head restraint guides. Refer to Seat Back Cover and Pad Replacement - Front .

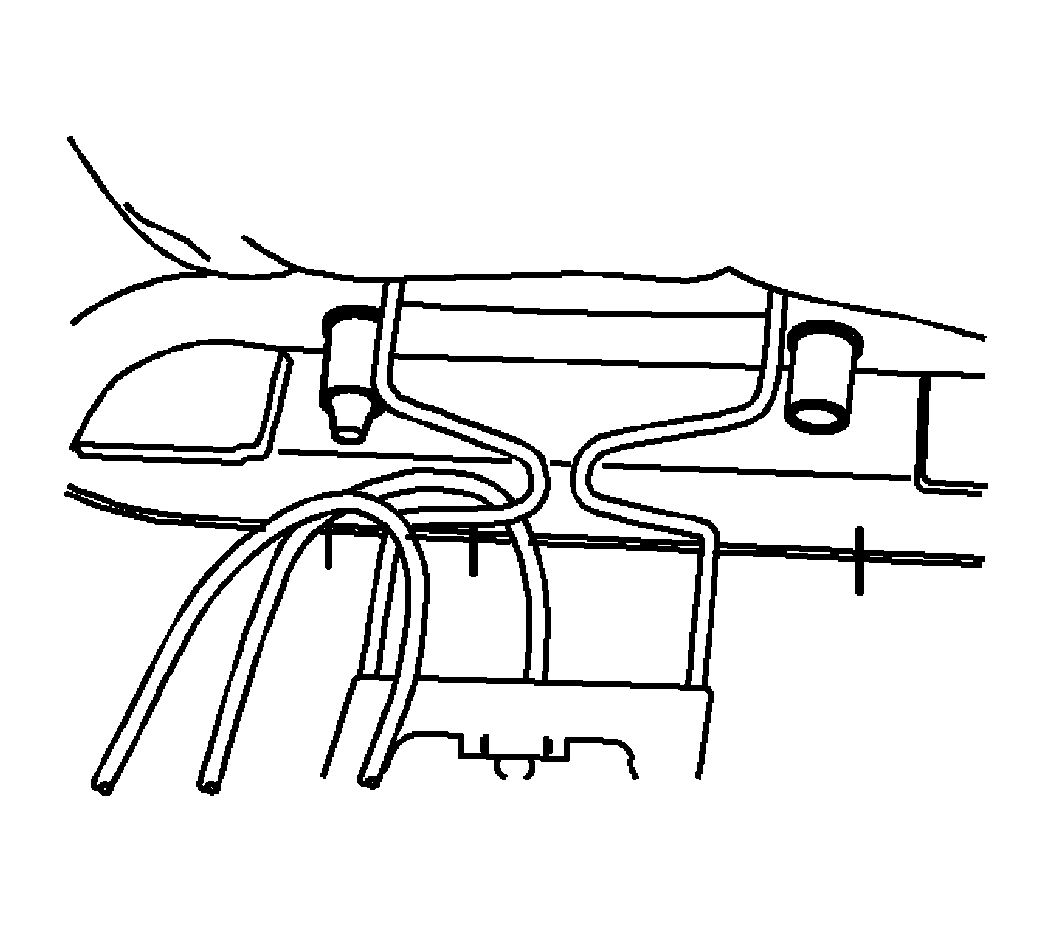

    4. Fig 1: Removing Head Restraint Guides
    GM752738Courtesy of GENERAL MOTORS CORP.
  4. Squeeze the retaining tabs located at the bottom of the guides together in order to remove the guides from the seat frame.
  5. Remove the guides from the seat back frame.
