Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

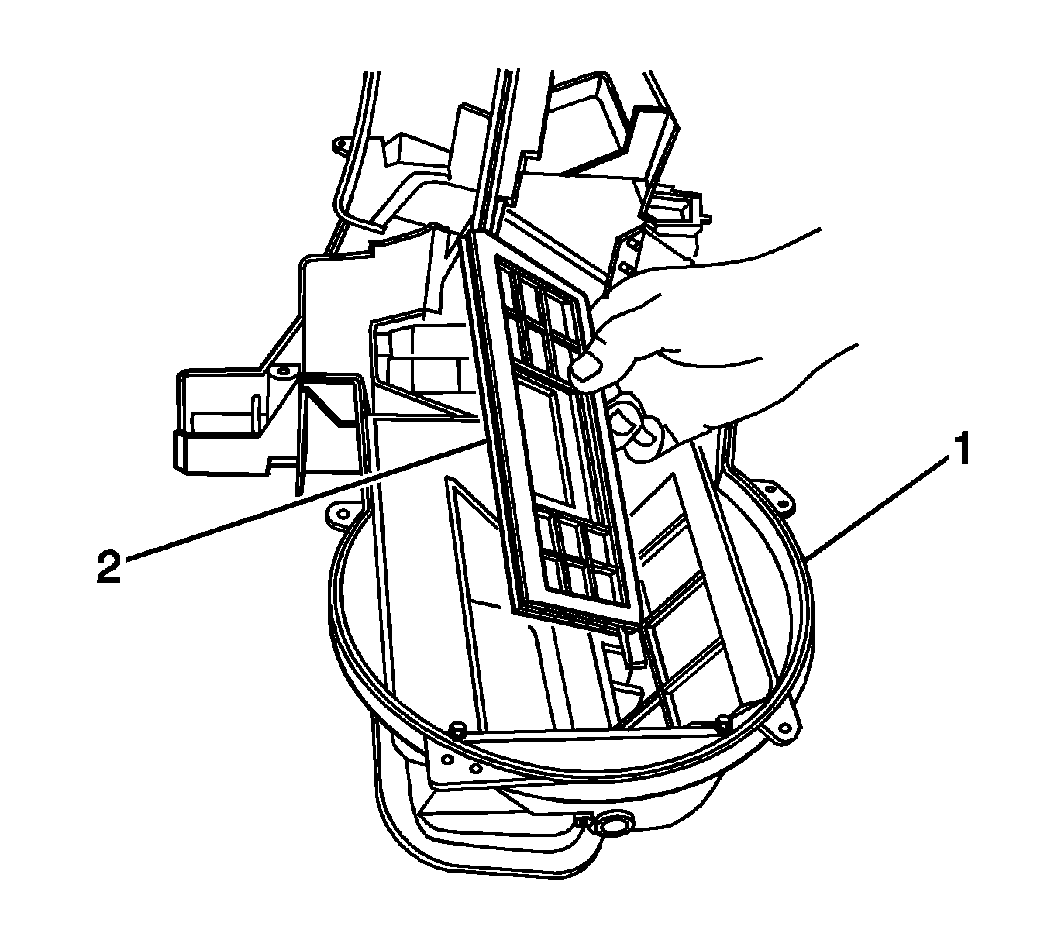

    Fig 1: View Of Recirculation Door
    GM888412Courtesy of GENERAL MOTORS CORP.
  1. Install the recirculation door (2) to the recirculation assembly (1).
    2. Fig 2: View Of Recirculation Actuator & Electrical Connector
    GM888409Courtesy of GENERAL MOTORS CORP.
  2. Install the recirculation actuator.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws to the recirculation actuator.

    Tighten:  Tighten the screws to 1.9 N.m (18 lb in).

  4. Connect the electrical connector.

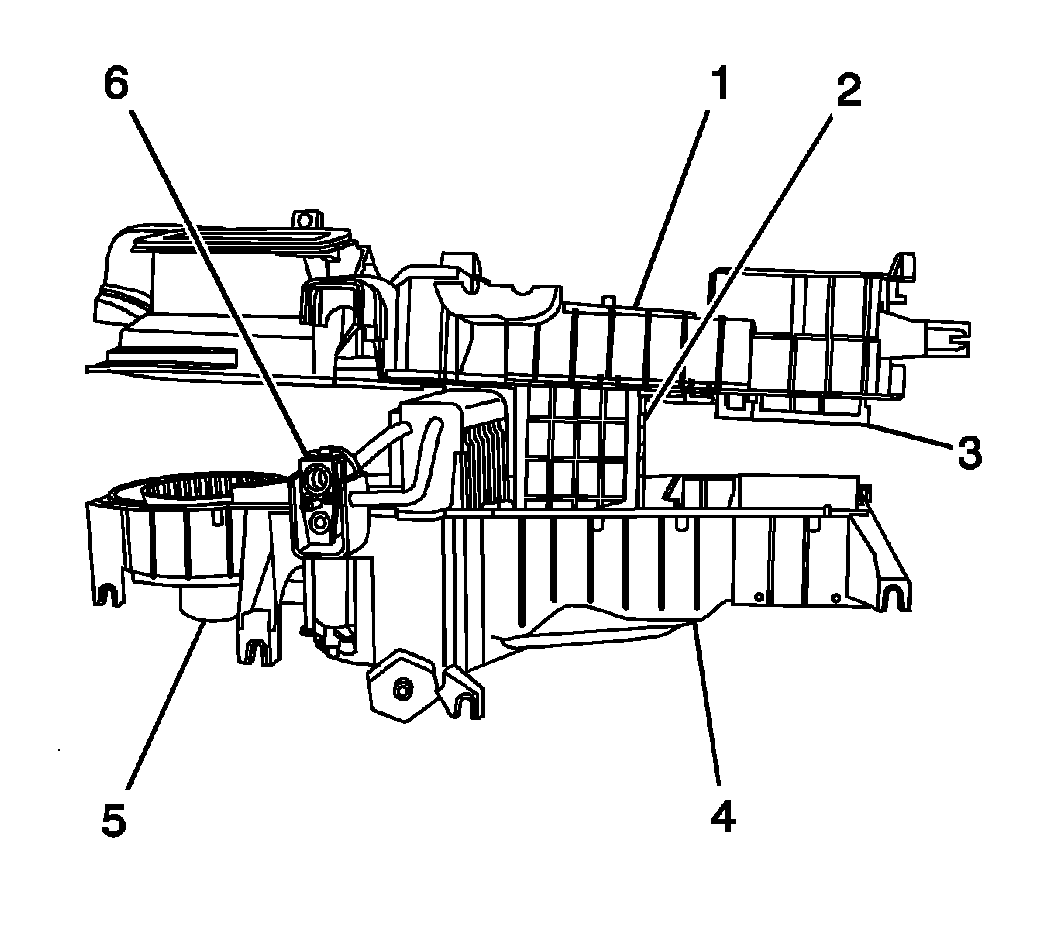

    5. Fig 3: View Of HVAC Module Assembly
    GM888407Courtesy of GENERAL MOTORS CORP.
  5. Assemble the HVAC module case halves (1 and 4).
  6. Install the screws to assemble the HVAC module case halves.

    Tighten:  Tighten the screws to 1.9 N.m (18 lb in).

  7. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement (W/ Air Conditioning)  or HVAC Module Assembly Replacement (Heating Only) .
