Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

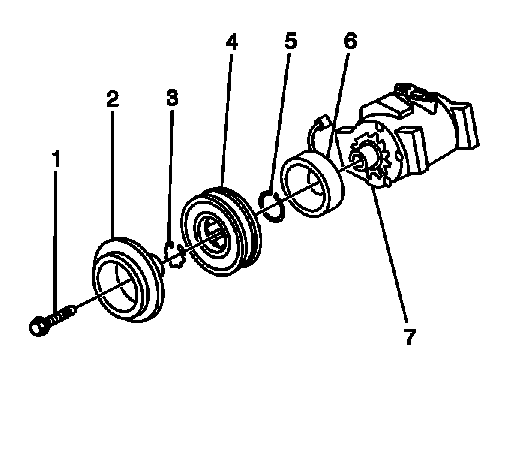

    Fig 1: Exploded View Of Compressor Clutch Plate Assembly
    GM667064Courtesy of GENERAL MOTORS CORP.
  1. Install the clutch hub/bearing assembly (4).
  2. Install the clutch hub/bearing snap ring (3).
  3. Install the clutch plate assembly (2).
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the clutch plate retaining bolt (1).

    Tighten:  Tighten the bolt to 18 N.m (13 lb ft).

  5. Install the compressor. Refer to Compressor Replacement .
