ABS Schematics

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

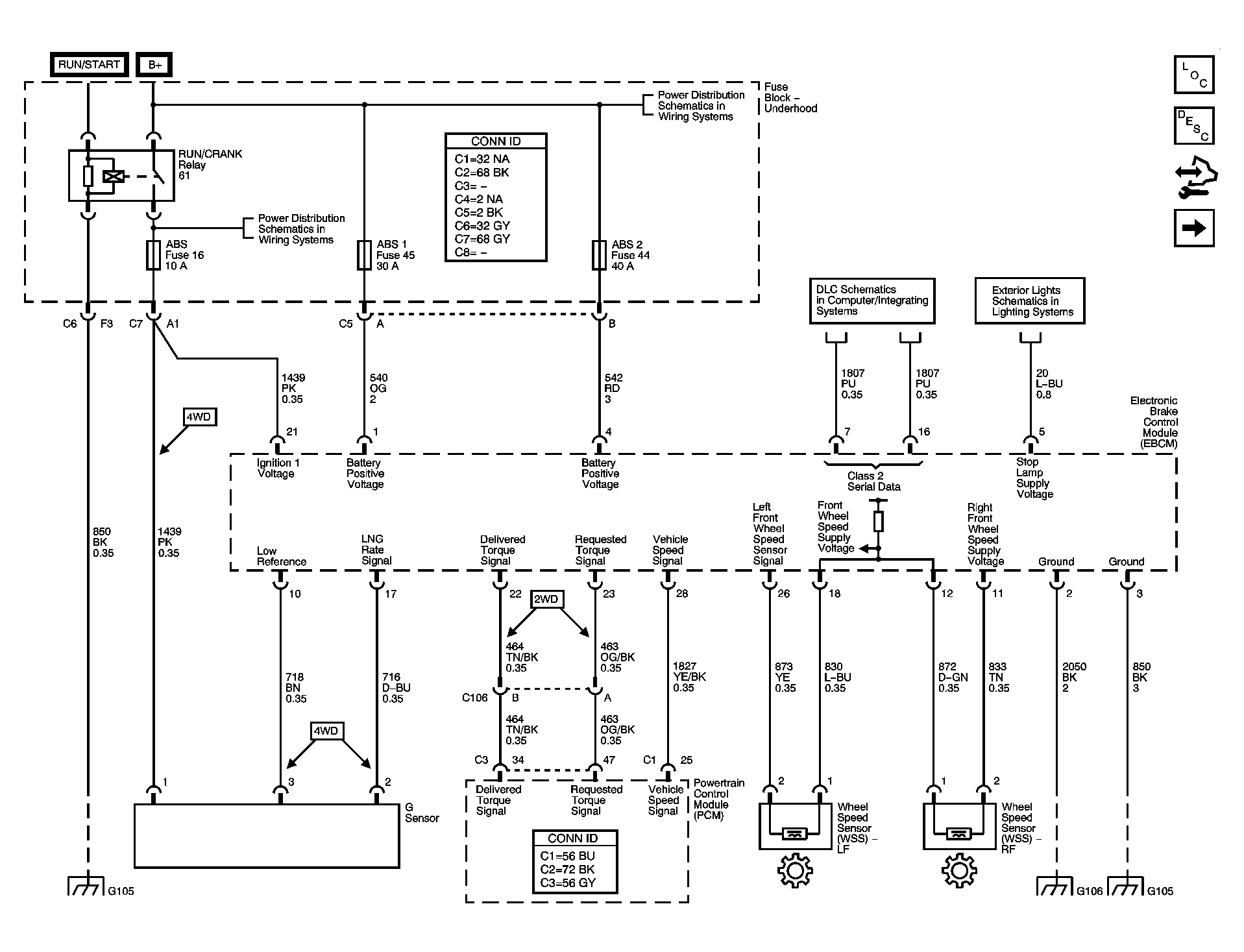

Fig 1: Power, Ground & Electronic Brake Control Module Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.
