Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the pickup box on the frame rails.

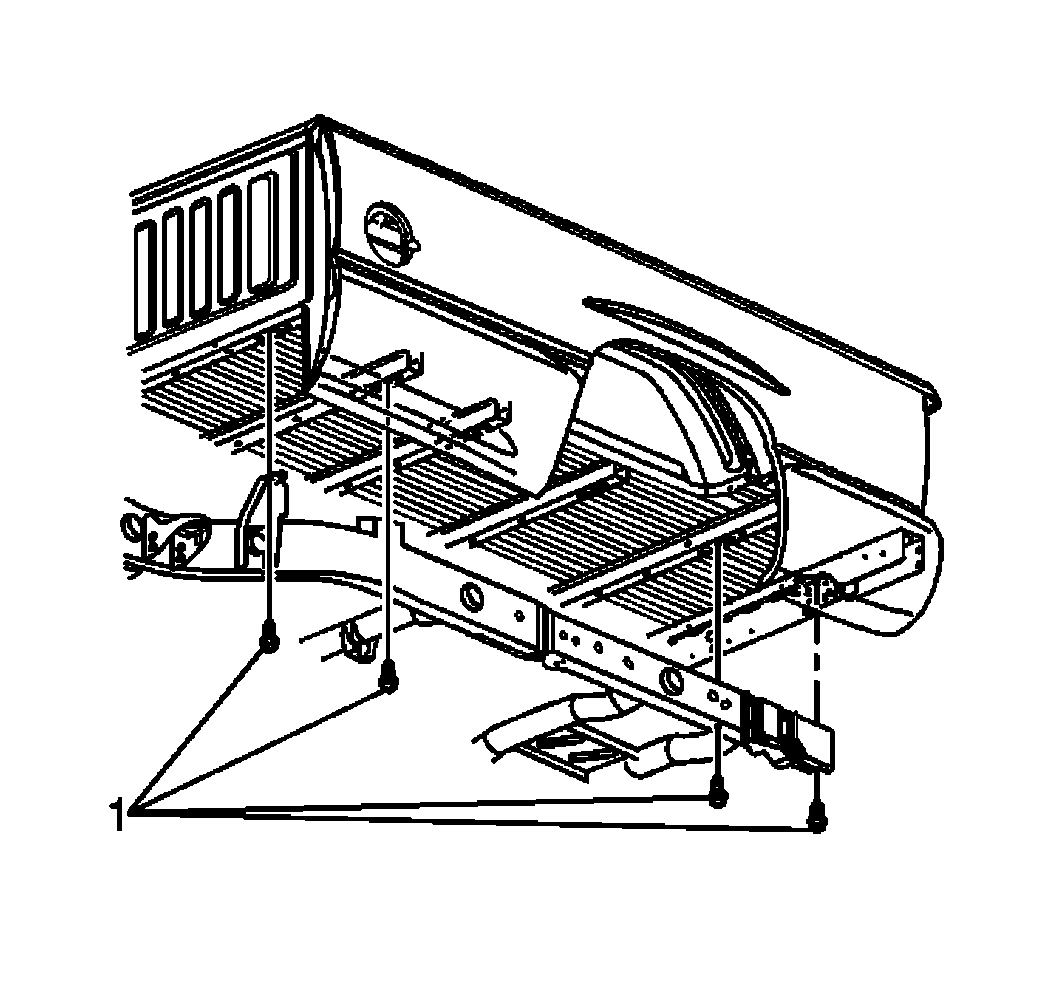

    2. Fig 1: View Of Pickup Box & Fasteners
    GM340587Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Loosely install the pickup box fasteners (1) to the frame rails.

    Tighten:  Tighten the retaining bolts to the frame rail to 85 N.m (63 lb ft).

  3. Install the endgate. Refer to Endgate Replacement  .

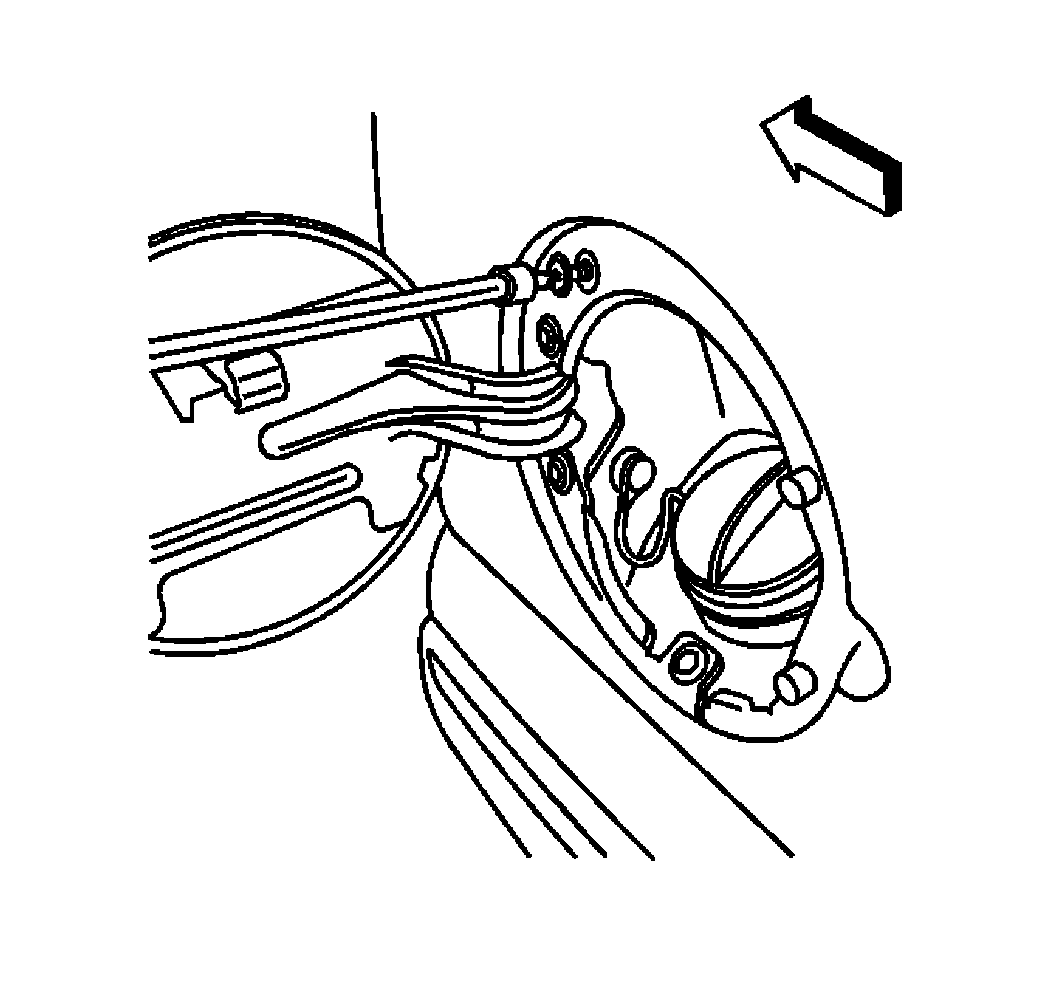

    4. Fig 2: View Of Fuel Filler Neck & Screws
    GM354587Courtesy of GENERAL MOTORS CORP.
  4. Fasten the screws and the push-pin around the fuel filler neck.
  5. Close the fuel filler door.
  6. Install the tail lamp assembly. Refer to Tail Lamp Assembly and/or Backup, Sidemarker, Stop, Turn Signal Bulb Replacement in Lighting Systems.
  7. Connect the tail lamp wiring connectors at the rear of the vehicle.
