Special Tools

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools

Illustration Tool Number/Description
GM3431Courtesy of GENERAL MOTORS CORP.
 GM P/N 12303040
Battery Side Terminal Adapters
GM3432Courtesy of GENERAL MOTORS CORP.
 J 38758
Parasitic Draw Test Switch
GM404758Courtesy of GENERAL MOTORS CORP.
 J 42000
Battery Tester

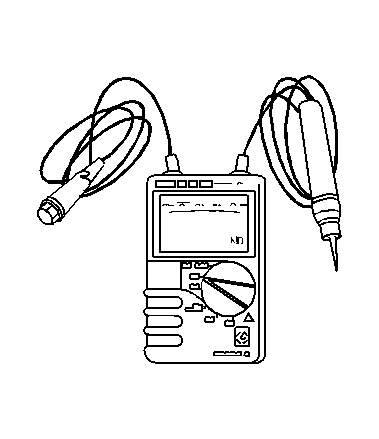

GM160332Courtesy of GENERAL MOTORS CORP.
 J 42502
Digital Insulation Tester (HP2)
GM472017Courtesy of GENERAL MOTORS CORP.
 J 42634
Battery Module Charger (HP2)
GM1367225Courtesy of GENERAL MOTORS CORP.
 J 43679
Panasonic Battery Removal Tool (HP2)
GM1277299Courtesy of GENERAL MOTORS CORP.
 J 46093
Rotor and Flexplate Holding Tool (HP2)
GM1399666Courtesy of GENERAL MOTORS CORP.
 Panasonic Battery Test Terminals (HP2)
