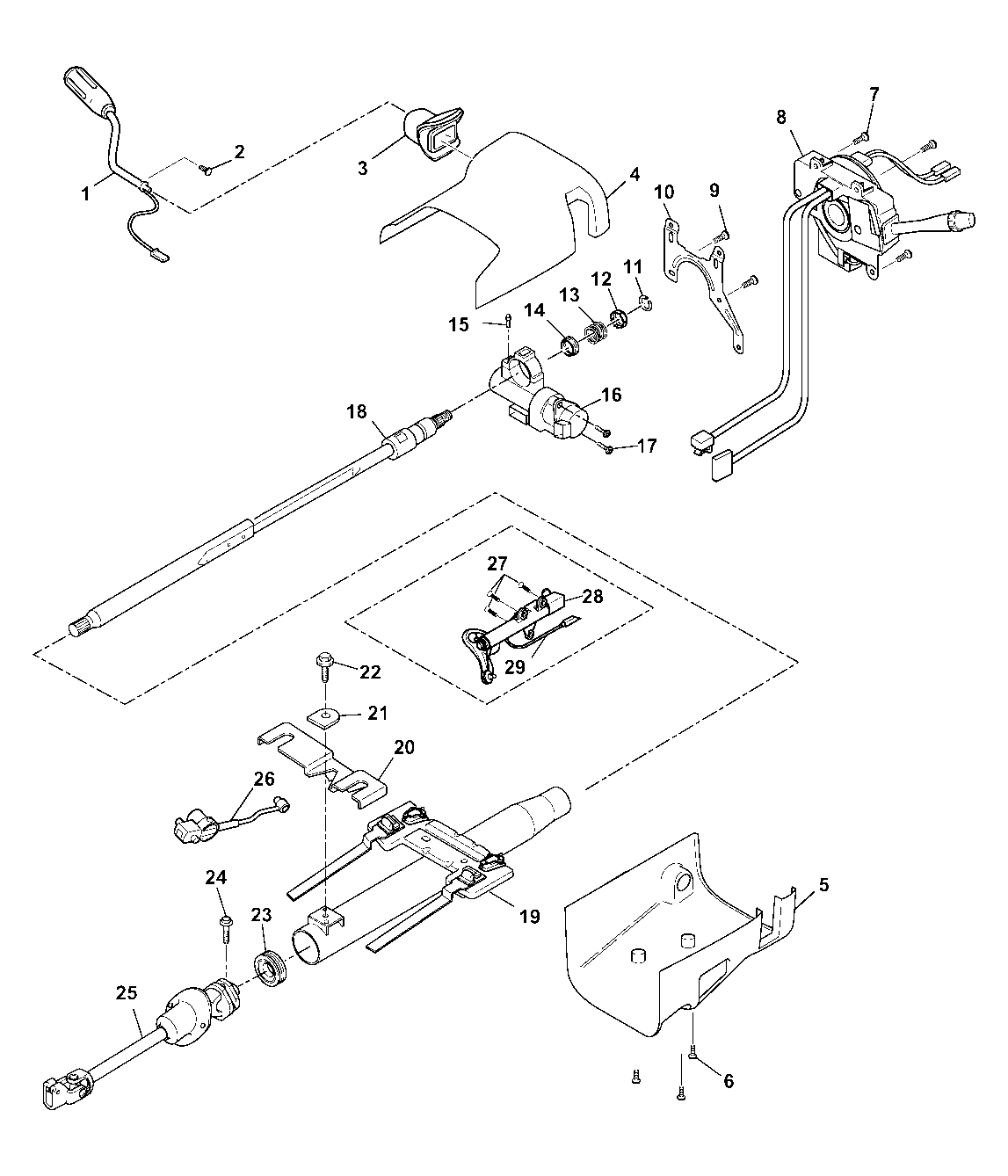

Steering Column Disassembled View (Column Shift Standard)
WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Shift Lever |
| 2 | Shift Lever Screw |
| 3 | Shift Lever Seal |
| 4 | Upper Trim Cover |
| 5 | Lower Trim Cover |
| 6 | Shoulder Tapping Screws |
| 7 | Pan Head Tapping Screws |
| 8 | Multifunction Switch Assembly |
| 9 | Washer Head Screws |
| 10 | Switch Mounting Plate |
| 11 | Bearing Retainer |
| 12 | Spring Retainer |
| 13 | Upper Bearing Spring |
| 14 | Inner Race Seat |
| 15 | Shear Bolt Washer |
| 16 | Ignition Switch and Lock Housing |
| 17 | Set Screws |
| 18 | Steering Shaft Assembly |
| 19 | Bracket and Upper Jacket Assembly |
| 20 | Lower Column Support Bracket |
| 21 | Lower Bracket Retainer Spacer |
| 22 | Washer and Bolt Assembly |
| 23 | Lower Shaft Bearing Assembly |
| 24 | Bolt and Retainer Assembly |
| 25 | Upper Steering Shaft Assembly |
| 26 | Electrical (BTSI) Actuator |
| 27 | Oval Head Tapping Screws |
| 28 | Linear Shift Assembly |
| 29 | Park Lock Cable |
