Removal Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the jack stowage cover. Refer to Cover Replacement - Jack Stowage  .

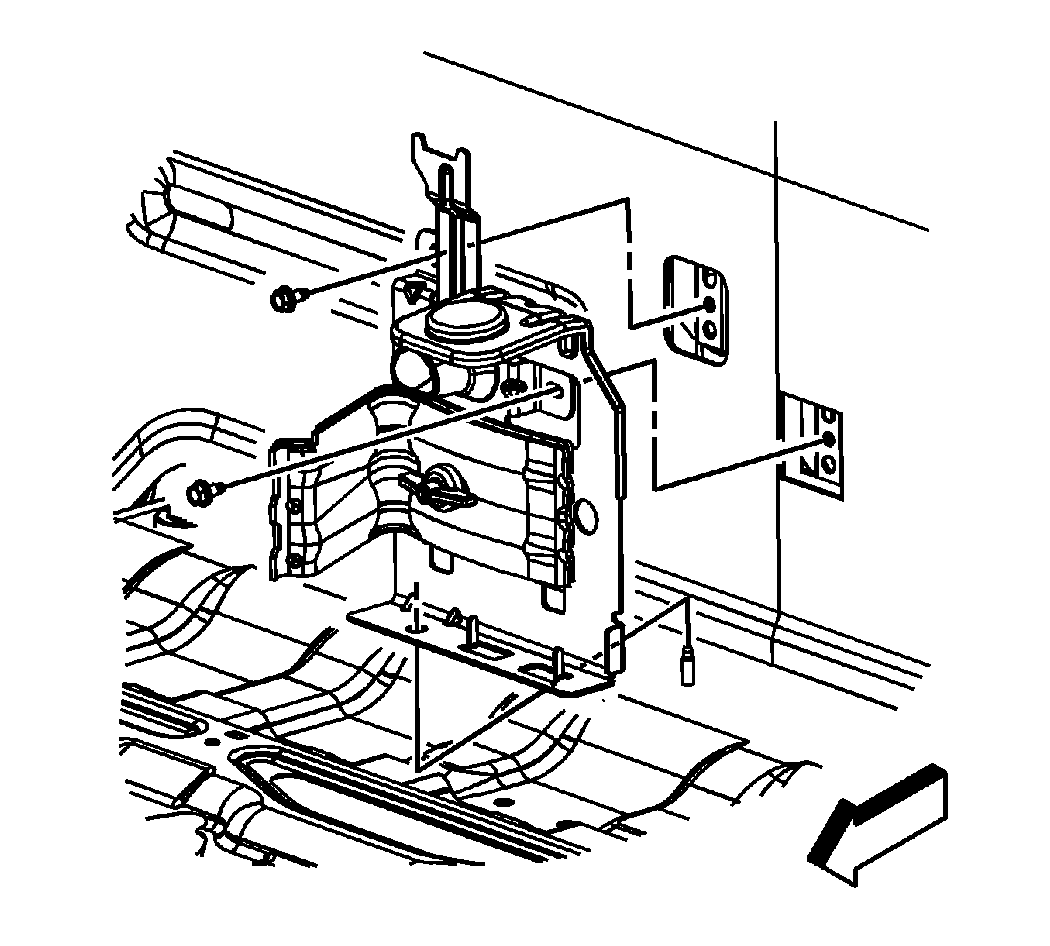

    2. Fig 1: View Of Jack Stowage Bracket
    GM1334367Courtesy of GENERAL MOTORS CORP.
  2. Remove the jack from the stowage bracket by turning the jack handle to loosen the jack.
  3. Remove the 2 bolts securing the jack stowage bracket to the vehicle.
