Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

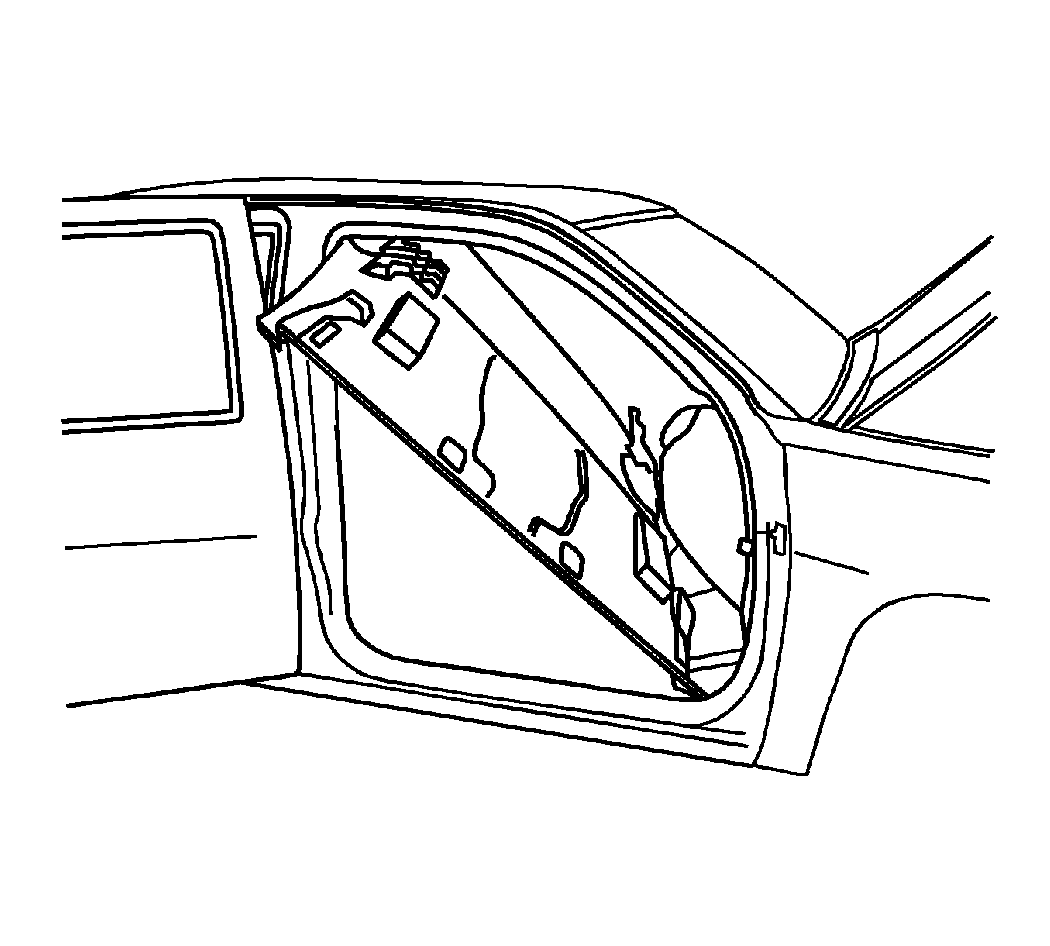

    Fig 1: View Of Headliner
    GM1276812Courtesy of GENERAL MOTORS CORP.
  1. Install the headliner in the vehicle through the right front door opening, rear edge first.

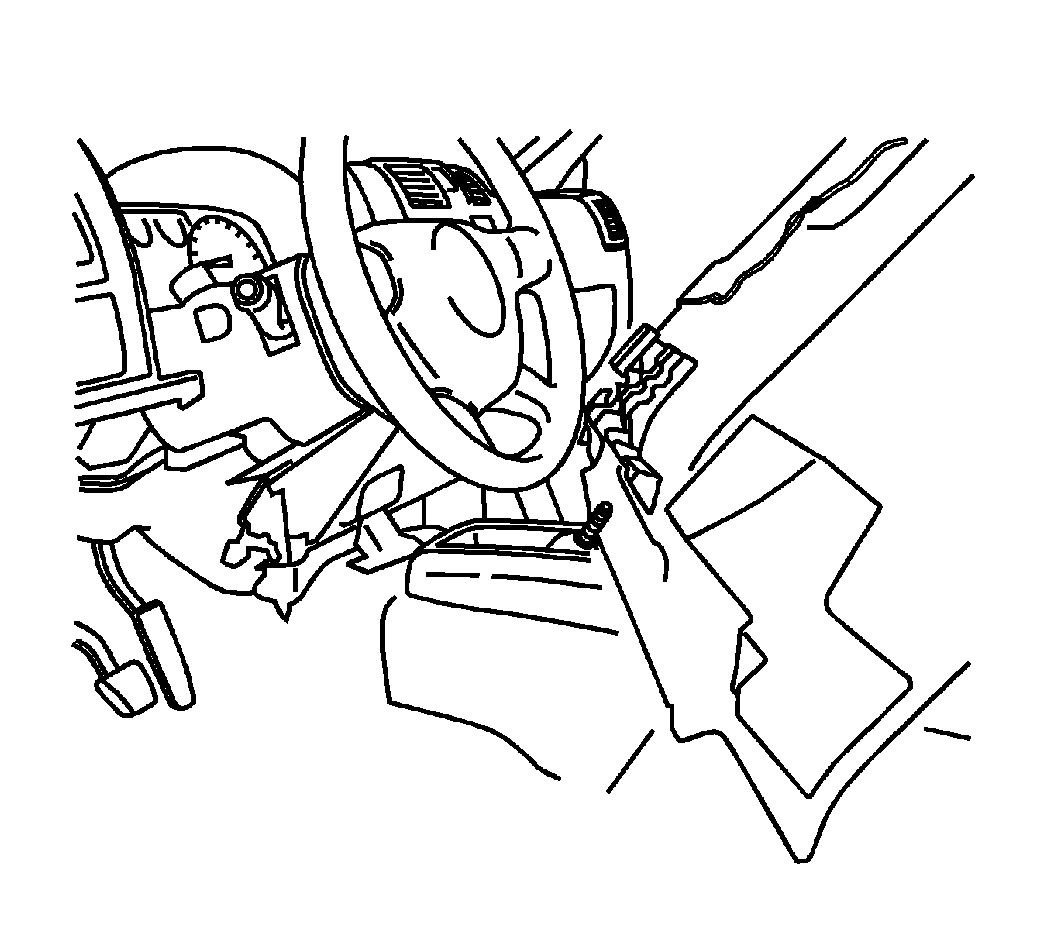

    2. Fig 2: View Of Forward Edge Of Headliner
    GM1276811Courtesy of GENERAL MOTORS CORP.
  2. Slid the headliner into the vehicle towards the left side of the cab ensuring that the left edge of the headliner is behind the shift knob stem.

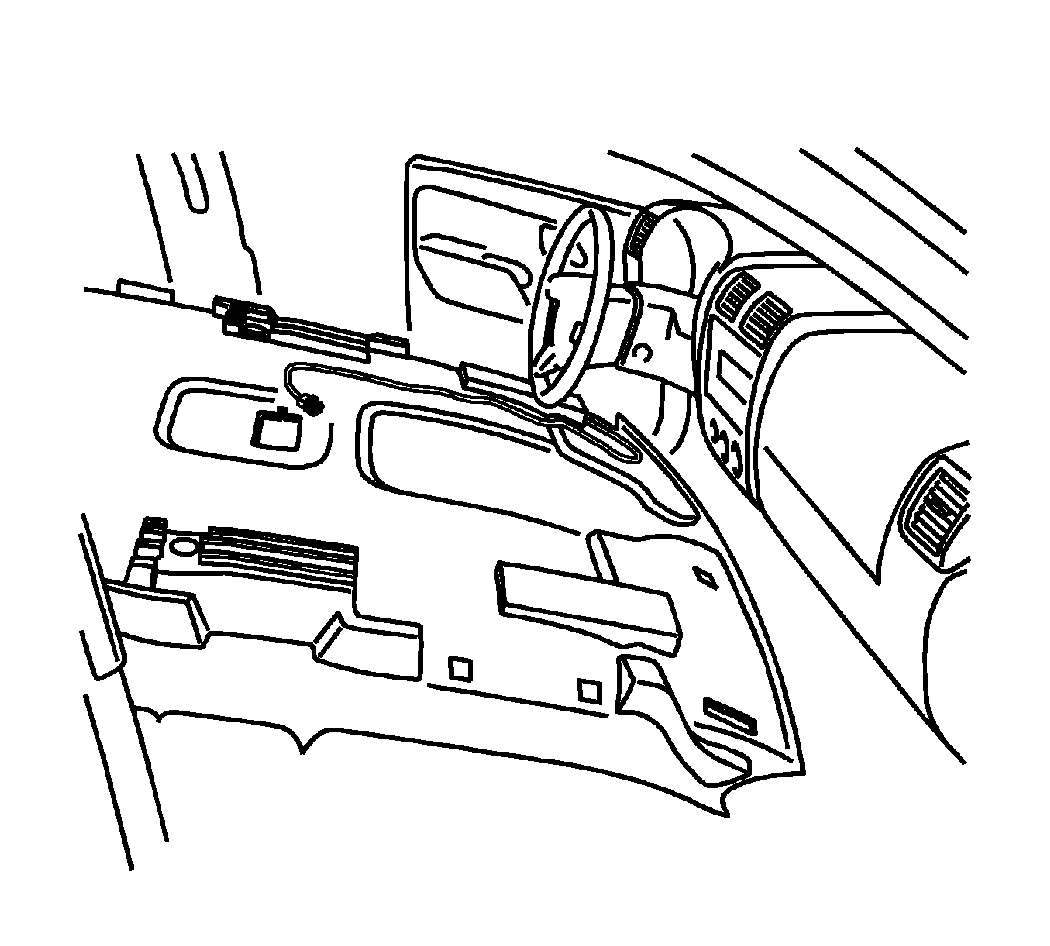

    3. Fig 3: View Of Headliner Positioned Under Steering Wheel
    GM1276810Courtesy of GENERAL MOTORS CORP.
  3. Rotate the rear edge of the headliner towards the rear of the cab with the forward edge of the headliner under the steering wheel.
  4. Ensure that the roof rail air bag tethers will not be obstructed by the installed headliner.
  5. Raise the headliner into position and install the 2 rear push pins into the roof.
  6. Install the 2 push pins securing the headliner to the row bow.
  7. Install the headliner above the door weather strips.
  8. Install the inboard sunshade retainers. Refer to Sunshade Replacement  .
  9. Install the sunshades. Refer to Sunshade Replacement  .
  10. Install the assist handles and the driver assist handle or assist handle blank. Refer to Assist Handle Replacement  .
  11. Install the coat hooks. Refer to Coat Hook Replacement  .
  12. Install the dome lamp. Refer to Dome Lamp Replacement in Lighting Systems.
  13. Install the upper body rear corner trim panels. Refer to Trim Panel Replacement - Body Rear Corner - Upper (Regular Cab, Extended Cab)  or Trim Panel Replacement - Body Rear Corner - Upper (Crew Cab)  .
  14. Install the lower body rear corner trim panels. Refer to Trim Panel Replacement - Body Rear Corner - Lower (Crew Cab)  or Trim Panel Replacement - Body Rear Corner - Lower (Regular Cab)  or Trim Panel Replacement - Body Rear Corner - Lower (Extended Cab)  .
  15. Install the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar  .
  16. Install the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar  .

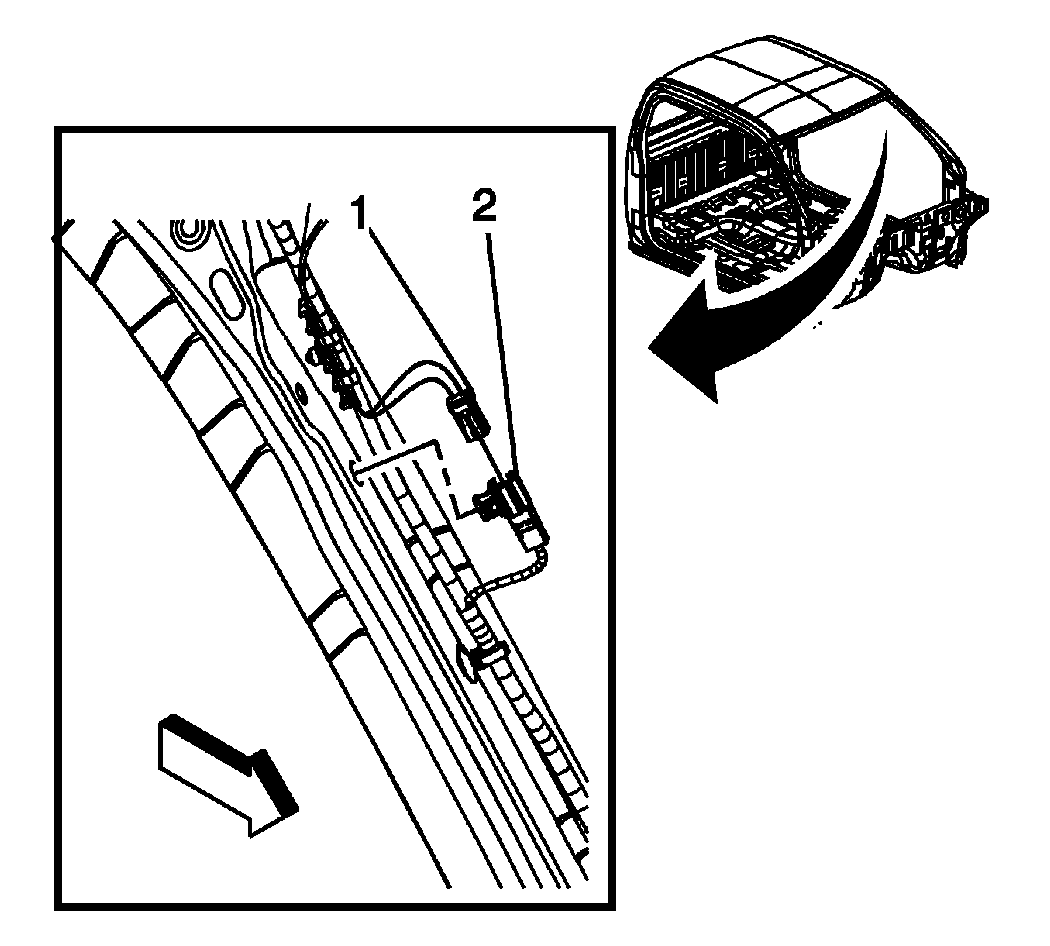

    17. Fig 4: View Of Headliner Harness & Body Harness
    GM1277333Courtesy of GENERAL MOTORS CORP.
  17. Connect the headliner harness (1) to the body harness (2).
  18. Install the windshield garnish moldings. Refer to Garnish Molding Replacement - Windshield Pillar  .
  19. Install the rear seat. Refer to Seat Replacement - Rear Bench in Seats.
  20. Install the front seats. Refer to Seat Replacement - Split Bench or Seat Replacement - Front Bucket in Seats.
  21. Install the right front door. Refer to Door Replacement - Side Front in Doors.
